French Cleat Tool Holder Generator
Parameterized Fusion 360 Designs to allow you to build French cleat wall tool holders customized to your needs and wall setup in a quick and (relatively) easy manner. Want a holder for your block-plane instead of a jack? Need a wider or deeper shelf? Have a small 12v drill or a really large one? All easy to customize with this system - just enter a few parameters and export.
83
Storage & Organization
Files Included (2)
Parameterized Cleats Instructions.pdf
129 kBParameterized French Cleat Holders.f3d
3 MB
Materials
Plywood of your choice
Tools
- Shaper Origin
- Appropriate cutters for your material
Instructions

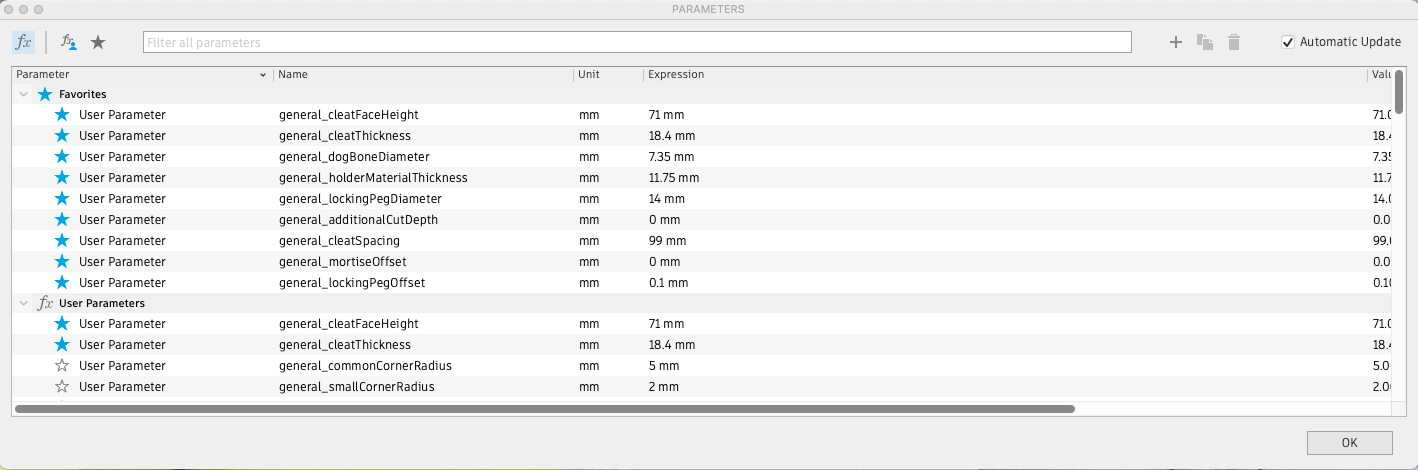

This Fusion 360 file contains fully parameterized designs for a number of French cleat wall tool holders. By modifying a few user parameters in Fusion 360 you can get fully customized designs that will fit your needs and French Cleat Wall. This Fusion 360 file was created in collaboration with HSWBuilds - I highly recommend you take a look at his projects here on ShaperHub (https://hub.shapertools.com/creators/638a887afda85b358d06f522) and watch his videos on YouTube (https://www.youtube.com/watch?v=lnQw4ED30TM and https://www.youtube.com/watch?v=PvhT6qfcPm8 in particular to see the advantages of these designs) Currently not all of the HSWBuilds designs are available - although there are a few additional variants of my own included. Will be updating to add more tool holder designs as time permits. Currently included are: - A number of the modular brackets (https://hub.shapertools.com/creators/638a887afda85b358d06f522/shares/6502fbbec551c49d2d28f8f3 - other pre-built variants are available from HSWBuilds) - A single shelf assembled with cut mortise and tenons - Battery charging station (https://hub.shapertools.com/creators/638a887afda85b358d06f522/shares/65413cfbfd114d89ec4e15e6) - Hand plane rack (https://hub.shapertools.com/creators/638a887afda85b358d06f522/shares/65413cd9fd114d89ec4e1576) - Modular hardware tray/small parts bin (https://hub.shapertools.com/creators/638a887afda85b358d06f522/shares/65413c67b5cfbd1b45ac3e42) - with additional single bin variant (note the dividers in HSWBuilds video are not present yet) - Drill Rack (https://hub.shapertools.com/creators/638a887afda85b358d06f522/shares/65413e00fd114d89ec4e1921) - with additional single drill variant - Mitre Gauge Holder Cleat (https://hub.shapertools.com/creators/638a887afda85b358d06f522/shares/65413cbbfd114d89ec4e14df) - Triple Shelf (https://hub.shapertools.com/creators/638a887afda85b358d06f522/shares/65413ddfb5cfbd1b45ac432c) - Double Shelf (much like the above... just one less) See the included PDF file for instructions on getting started and adjusting each design to fit your purposes.
