Splay Leg Console Table

By Matt74
|
BY-NC-SA 4.0 License
|
Updated Tue Sep 10 2024

Delicate, splayed legs give this table an elegant stance. Standing around waist high, it provides a drawer for storage, and a top that you can use to display a cherished piece of pottery, some bedside books, or as a place to keep keys in an entryway. Made from cherry with tight, straight grain, the table has a quiet beauty that’s perfectly complemented by the painted drawer front.

> 2 hr
Advanced

52

Furniture

Files Included (15)

  • Apron_Mortise_Left_V1.svg

    1 kB
  • Apron_Mortise_Right_V1.svg

    1 kB
  • Apron_Tenon_Left_V1.svg

    973 B
  • Apron_Tenon_Right_V1.svg

    932 B

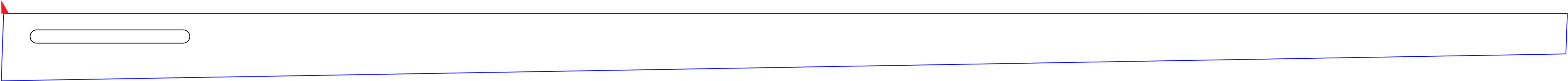

  • Blade_Block_V1.svg

    774 B

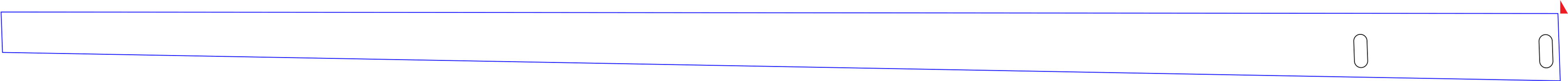

  • Blade_Mortise_Left_V1.svg

    2 kB

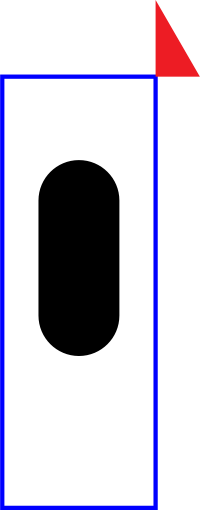

  • Blade_Mortise_Right_V1.svg

    2 kB
  • Blade_Tenon_Left_V1.svg

    1 kB
  • Blade_Tenon_Right_V1.svg

    1000 B

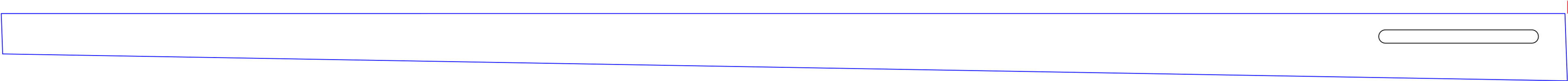

  • Clamping_Caul_V1.svg

    790 B

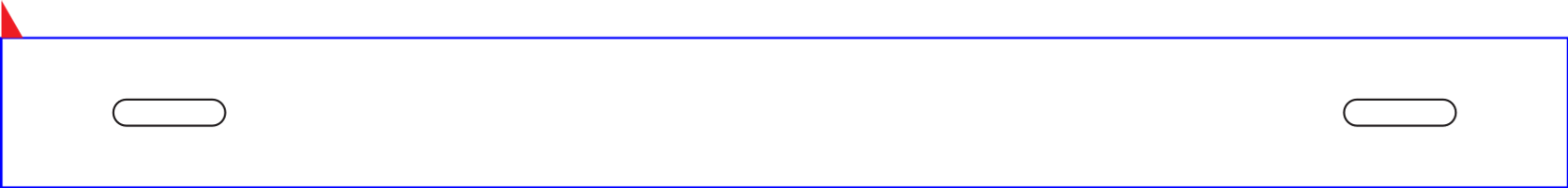

  • Kicker_Slots_V1.svg

    1 kB
  • MEK Splay Leg Table Instructions.pdf

    2 MB
  • Miter_Block_V1.svg

    800 B
  • Pull_1_V1.svg

    988 B
  • Pull_2_V1.svg

    760 B

Materials

Hardwood:

(1) 5/8” x 16-3/4” x 20-1/4

(4) 1-5/16” x 1-5/16” x 29-7/16”

(2) 5/8” x 4-1/4” x 12-1/2”

(1) 5/8” x 4-1/4” x 16-1/8”

(1) 1/2” x 1-7/16” x 15-3/8”

(1) 1/2” x 1-7/16” x 16-1/8”

(2) 1/2” x 3” x 11-3/4”

(1) 1/2” x 3” x 14-1/2”

(1) 3/4” x 3” x 14-1/2”

(1) 3/16” x 3-1/4” x 15”

(2) 1/2” x 3/4” x 10 1/2”

(2) 5/8” x 1-1/2” x 10-1/2”

(2) 9/16” x 1” x 10-3/8”

(1) 1/4” x 11-1/2” x 14 1/2

(1) 3/16” x 1-1/4” x 3-1/2”

(1) 1/4” x 2 1/2 x 5-3/4”

Miscellaneous

(10) #6 x 1” wood screws

Tools

Shaper Origin

Shaper Workstation

8mm x 35mm Up-Spiral Finishing Bit

8mm Collet

1⁄8” X 1⁄2” Up-Spiral O-flute Router Bit

1/4” Collet

Jointer

Planer

Table Saw

Router Table

Instructions

The Shop Drawings PDF contains construction notes and measured drawings.
