iPhone 12 Pro Max charger base.

By gatoAlfa | Created February 7th, 2021 | Published February 7th, 2021 | Updated February 7th, 2021

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

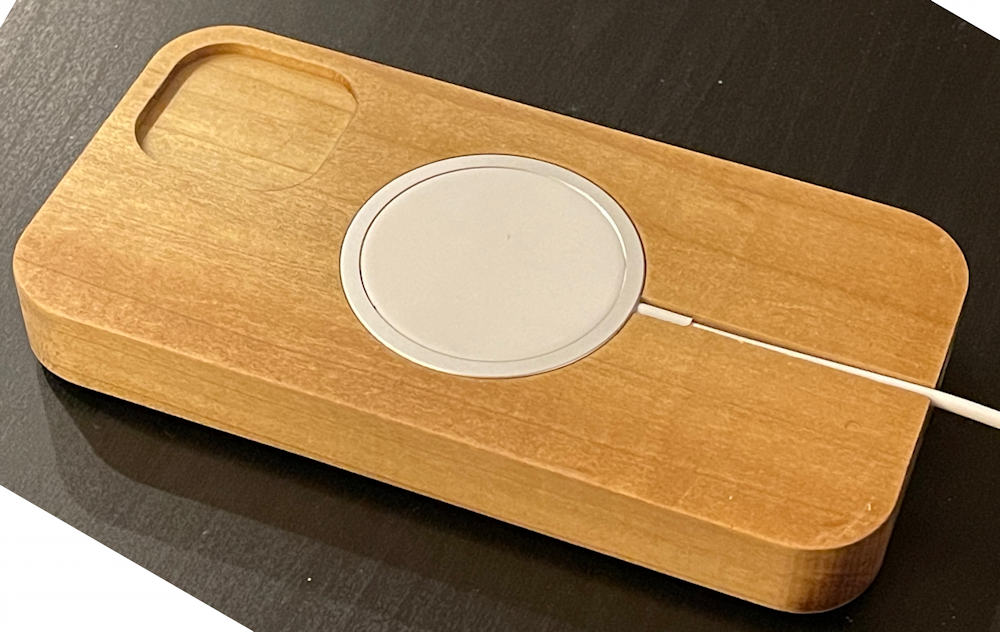

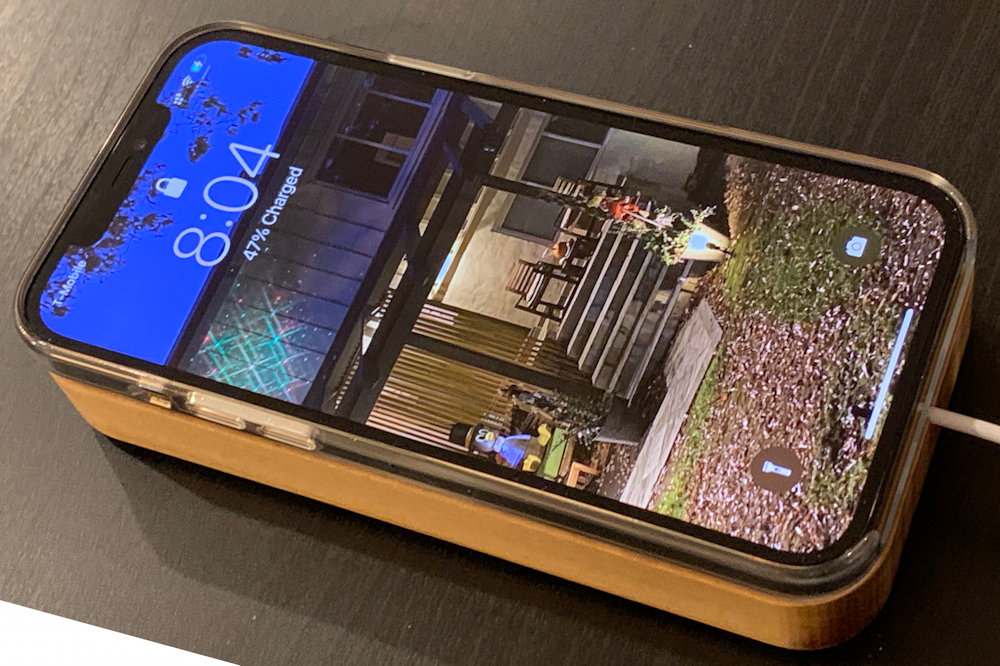

This is sized for the iPhone 12 Pro Max using the MagSafe charger and the clear case.

20 min

Easy

2

Category

Electronics

Files included (1)
NameSize
iphone_12_pm_charger_layout.svg
15 kB

BY-NC-SA 4.0 License


3.5" x 7" x 3/4" poplar
Shaper Origin, 1/4" and 1/16" carbide bits.

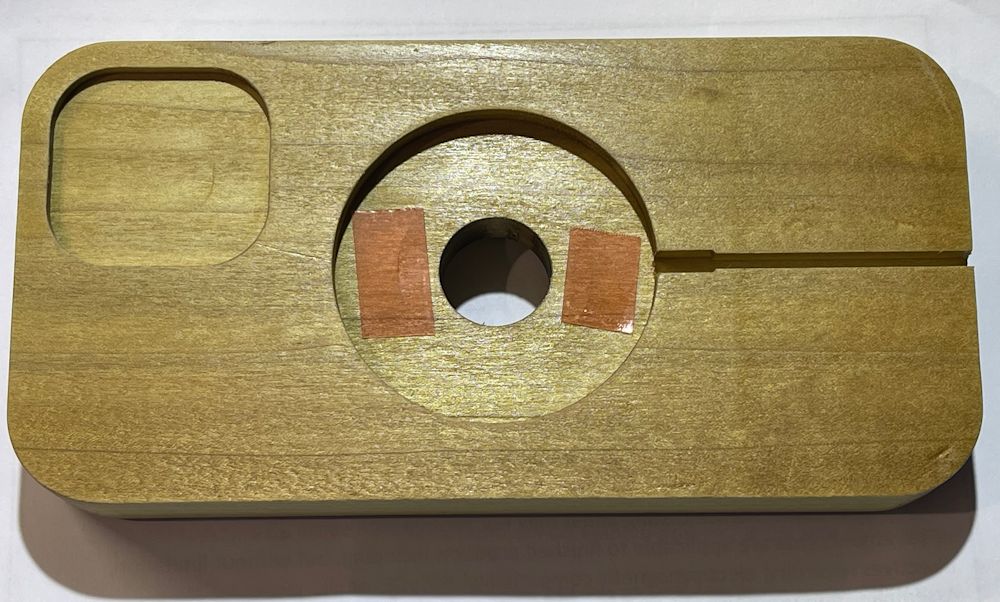

The pocket for the camera lens is 3mm., the pocket for the MagSafe charger is 5.5mm and the pocket for the cable is 5mm. The MagSafe fit is tight, fit it and increase the offset if necessary for a good fit, or use double-sided tape.
