Shaper workstation fixture creation kit

By Sam|BY-NC-SA 4.0 License|Updated February 14th, 2022

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
The components in this project are building blocks to help you to make custom fixtures and mount the workstation precisely.

10 min

Easy

175

Files included (5)
NameSize
angle_fense_v001.svg
4 kB
clamp_v003.svg
38 kB

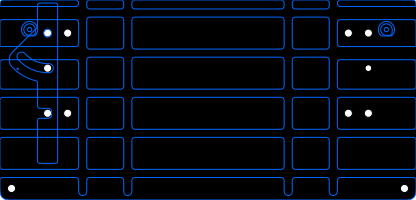

These files will enable you to align mounting holes and dimensions with various components on the shaper workstation. angle fense v001.svg : Helps design files to align with the angle fense, or make your own custom angle fenses. clamp v003.svg : shows the clamp geometry and approximate range of positions it can apply clamping force. clamping face v004.svg : position clamps, mounting holes and vertical index pins exactly where they are needed. body alu hole pattern.svg : The under side of the main body, including mounting holes body alu hole patten bench aligned.svg : same as above, but with the front edge trimmed for easy alignment to the edge of a bench. If you are looking for the shelf / spoil board files take a look at this project: https://hub.shapertools.com/creators/59b9b947291ebbfa71254b56/shares/5e616f4fce53b3000f11981f
