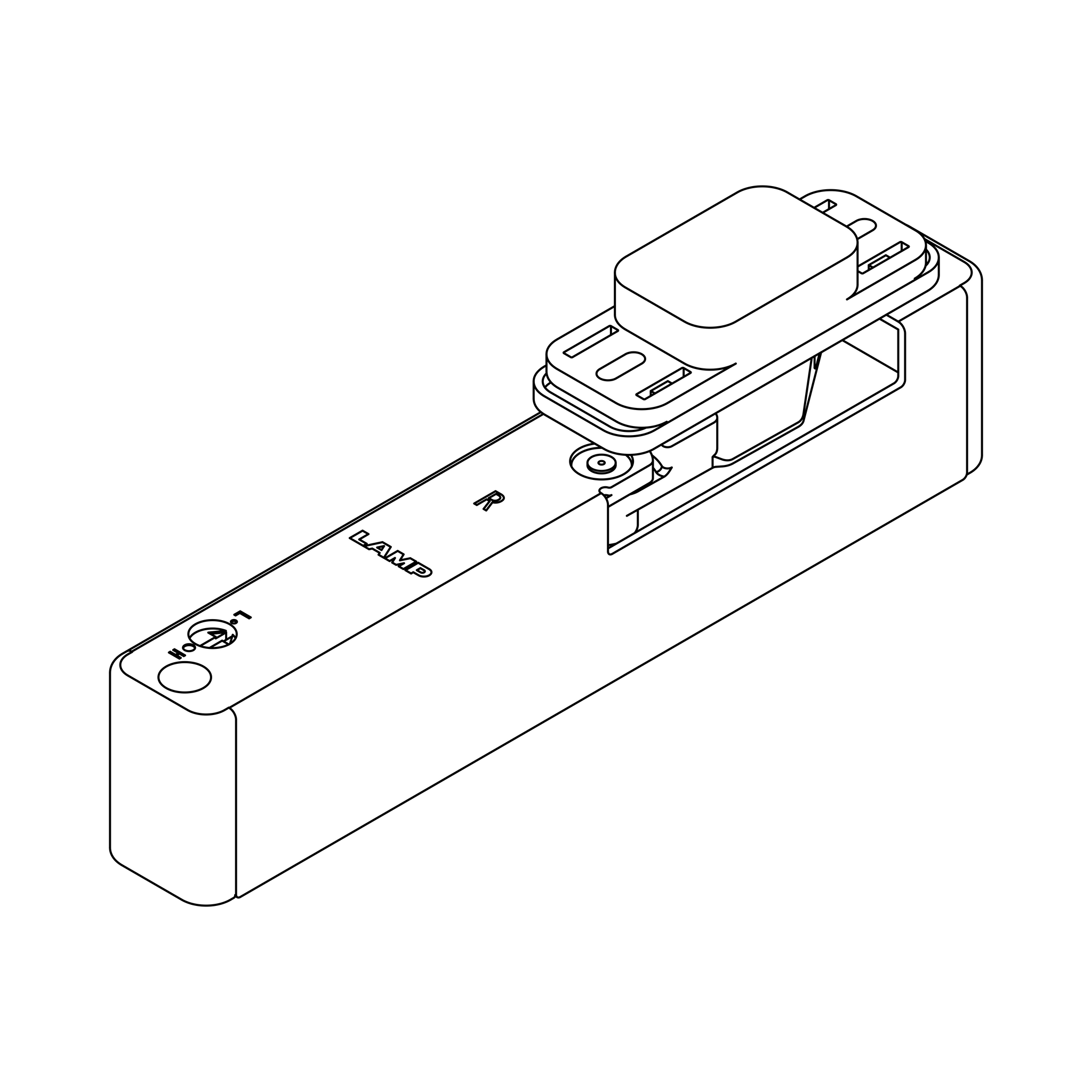

Sugatsune - LDD-V 185mm L x 26mm W x 38mm D

Sugatsune

LDD-V

Other Details

Overall Dimensions

185mm L x 26mm W x 38mm D

Screw Size

M4 x 45mm

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

38mm

Material Thickness

33mm

Additional Info

Refer to documentation for frame template placement

Files

Report File Issues

Cut Files

Manufacturer Resources

LDD-V - Datasheet.pdf
LDD-V - Installation Instructions.pdf
