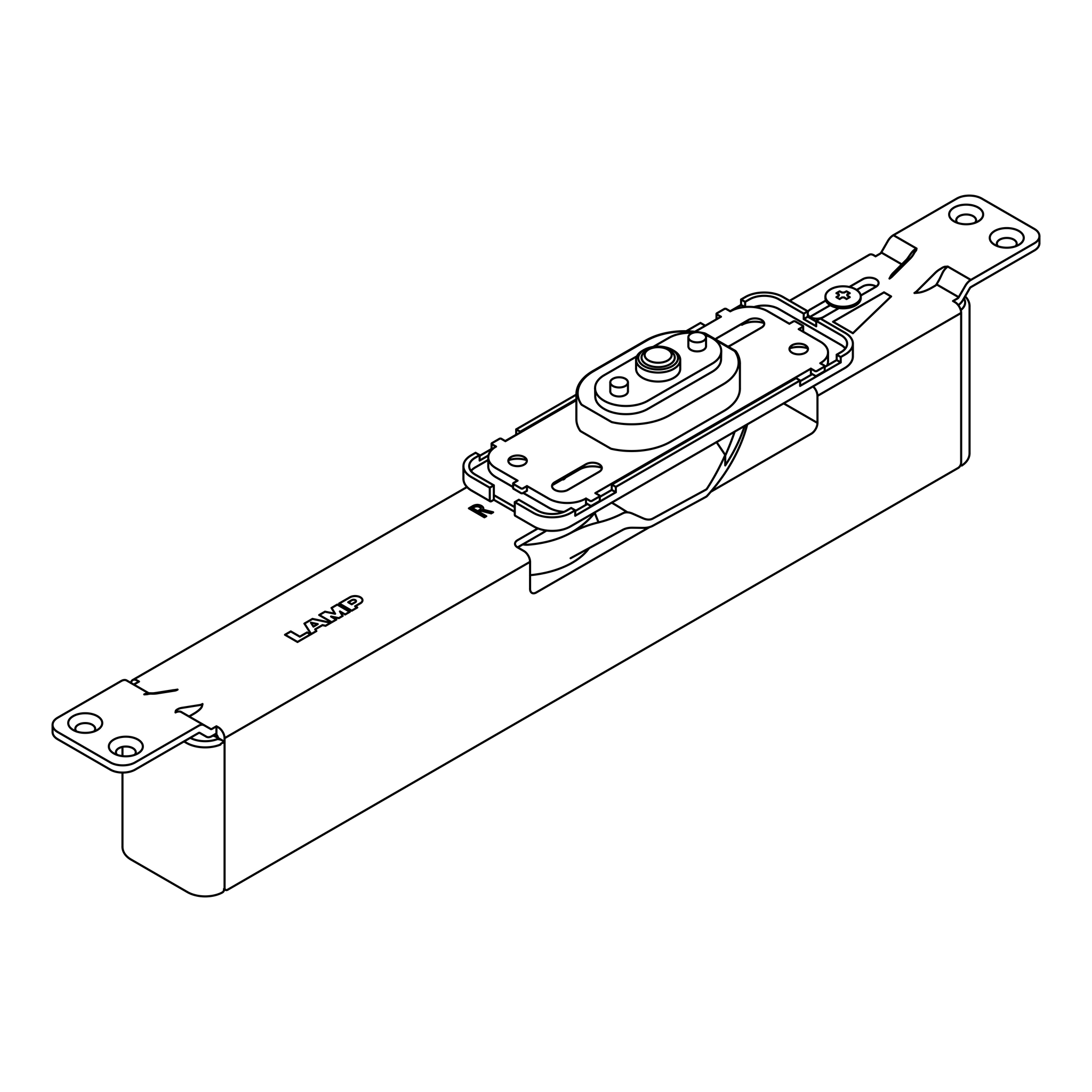

Sugatsune - LDD-V100 296mm L x 30mm W x 48mm D

Sugatsune

LDD-V100

Other Details

Overall Dimensions

296mm L x 30mm W x 48mm D

Screw Size

M3.5 x 20mm

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

48mm

Material Thickness

40mm

Additional Info

Refer to documentation for frame template placement

Files

Report File Issues

Cut Files

Manufacturer Resources

LDD-V100 - Datasheet.pdf
LDD-V100 - Installation Instructions.pdf
