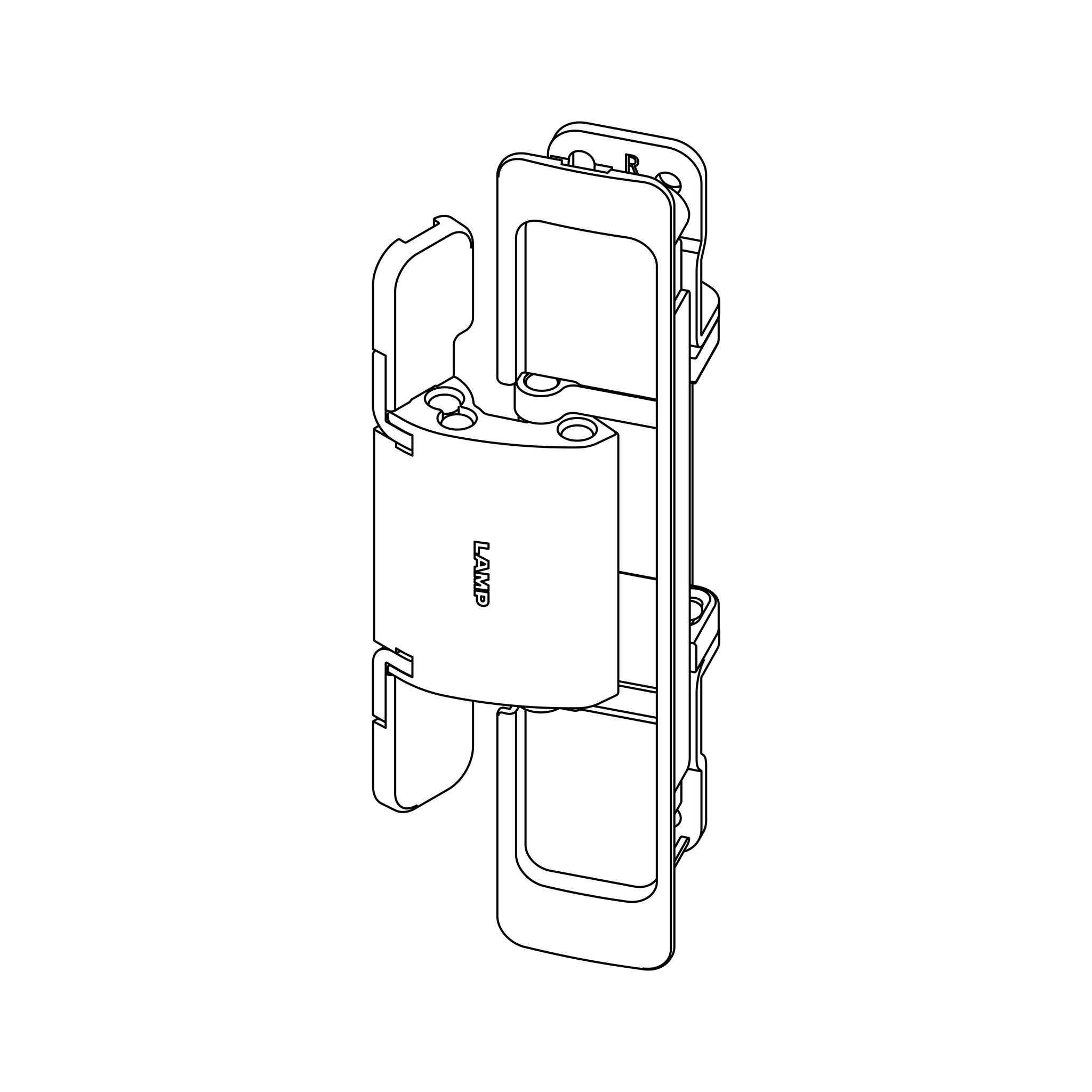

Sugatsune - HES2S-150-A110 Concealed - 160mm L x 31mm W x 41.5mm D

Sugatsune

HES2S-150-A110

Hinge Details

Overall Dimensions

160mm L x 31mm W x 41.5mm D

Style

Concealed

Screw Size

M4 x 20mm

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

40mm

Material Thickness

35mm

Additional Info

Refer to documentation for frame template placement

Files

Report File Issues

Cut Files

Manufacturer Resources

HES2S-150-A110 - Datasheet.pdf
