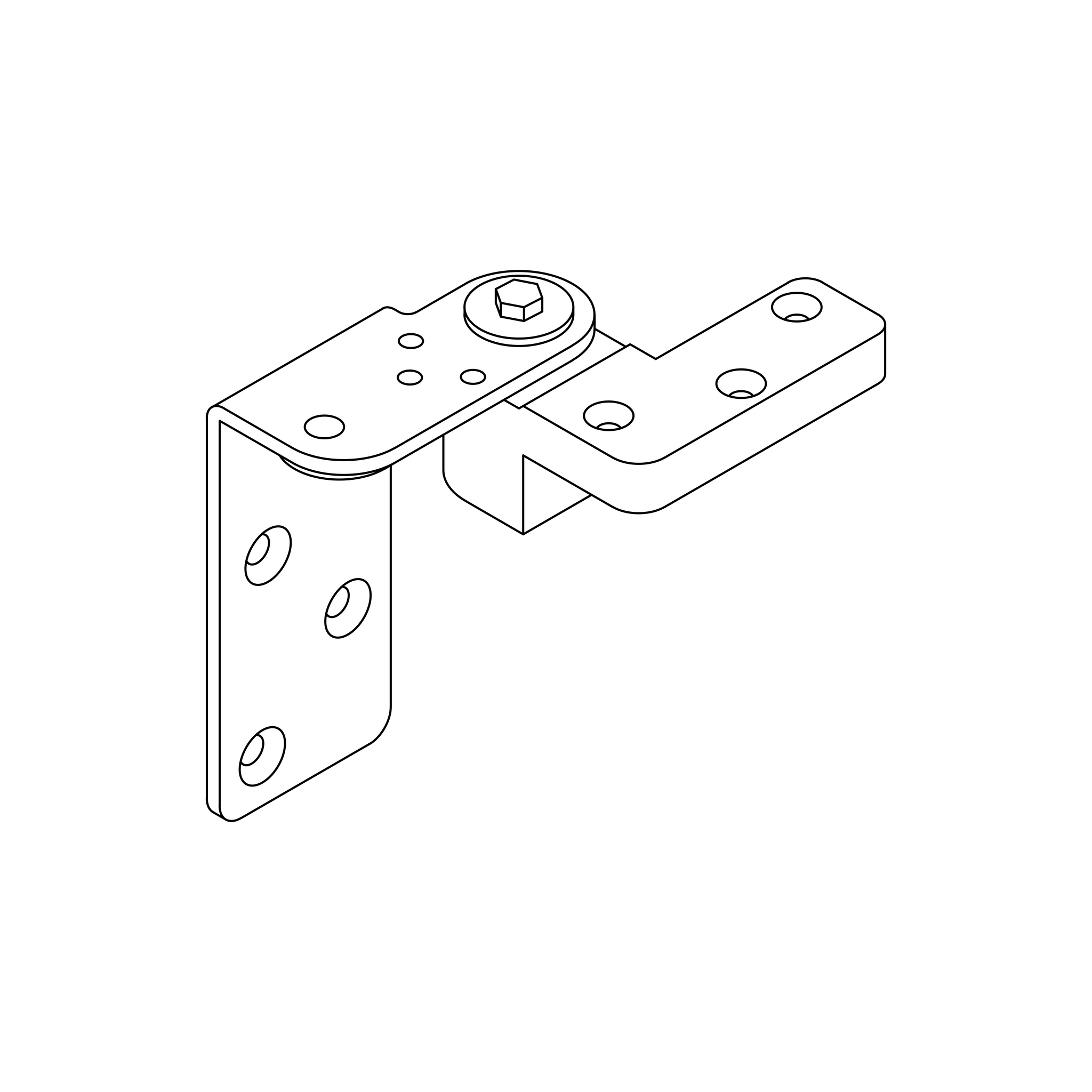

Sugatsune - PH-01 Offset Pivot - 86mm H x 67mm W x 65mm D

Sugatsune

PH-01

Hinge Details

Overall Dimensions

86mm H x 67mm W x 65mm D

Style

Offset Pivot

Screw Size

4mm

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

10mm

Material Thickness

33mm

Files

Report File Issues

Cut Files

Manufacturer Resources

PH-01 - Installation.pdf
PH-01.pdf
