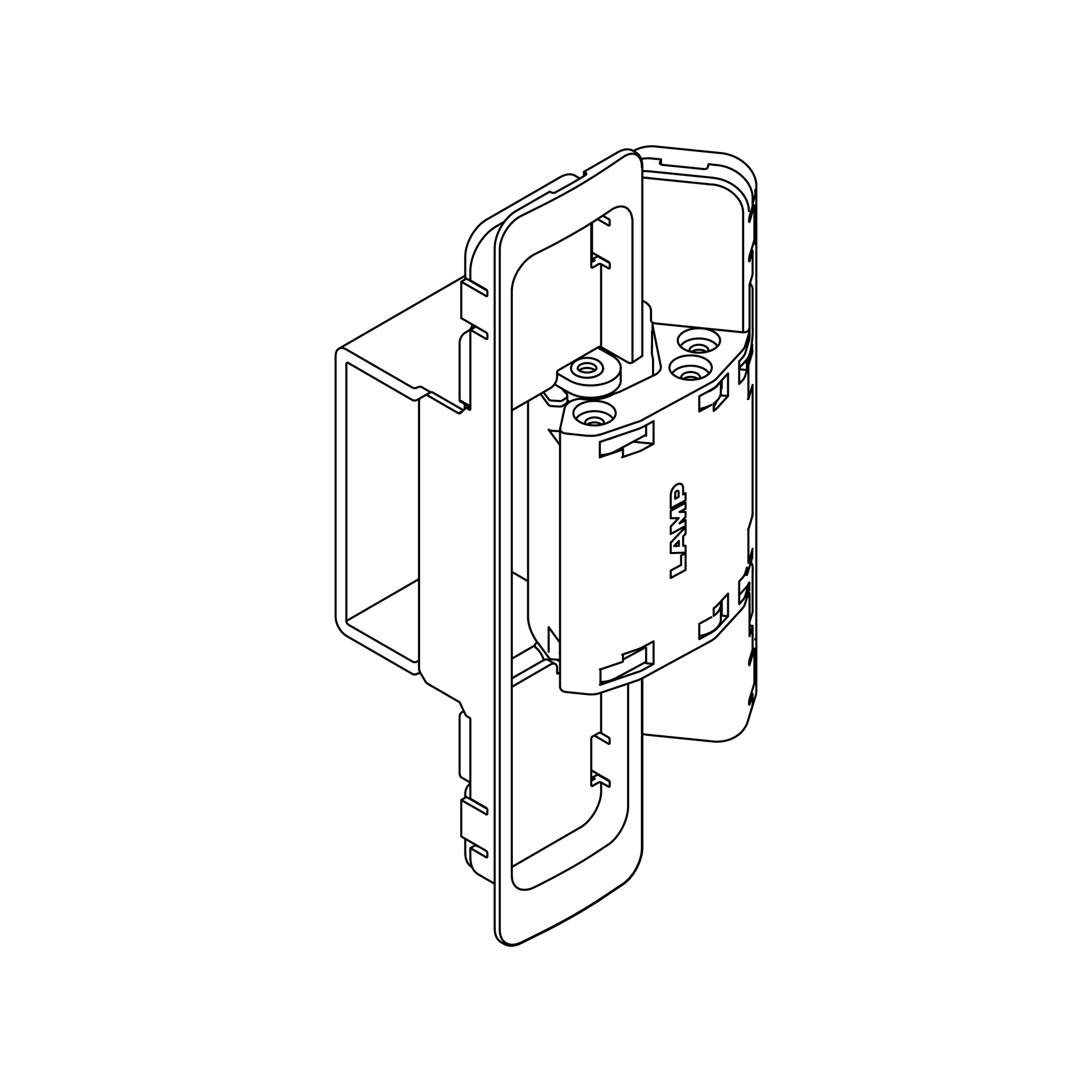

Sugatsune - HES2S-140 Concealed - 160mm L x 29.5mm W x 64mm D

Sugatsune

HES2S-140

Hinge Details

Overall Dimensions

160mm L x 29.5mm W x 64mm D

Style

Concealed

Screw Size

4mm

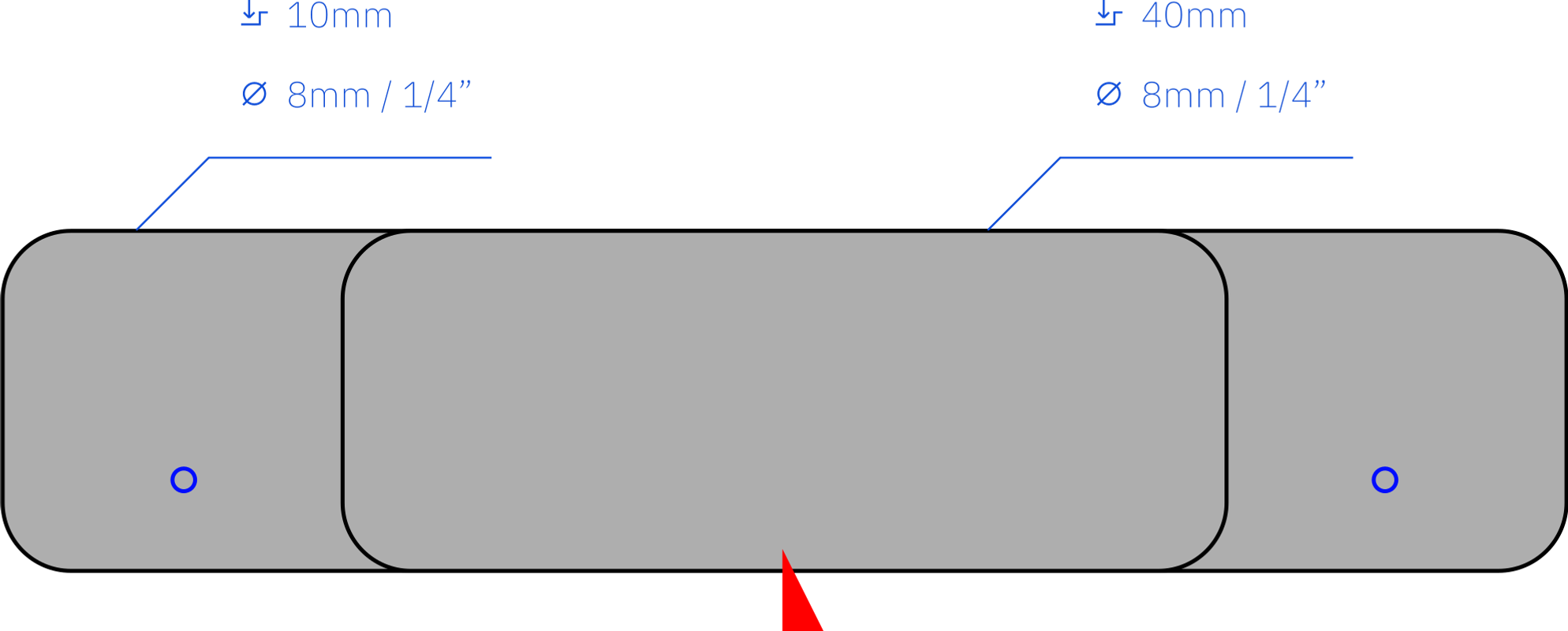

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

40mm

Material Thickness

38mm

Files

Cut Files

Manufacturer Resources

HES2S-140 - Installation.pdf

HES2S-140.pdf
