Sugatsune
HES3D-W190
Sync to My Files
Hinge Details
Overall Dimensions
190mm L x 64mm H x 36mm W
Style
Concealed
Screw Size
M5 x 30mm

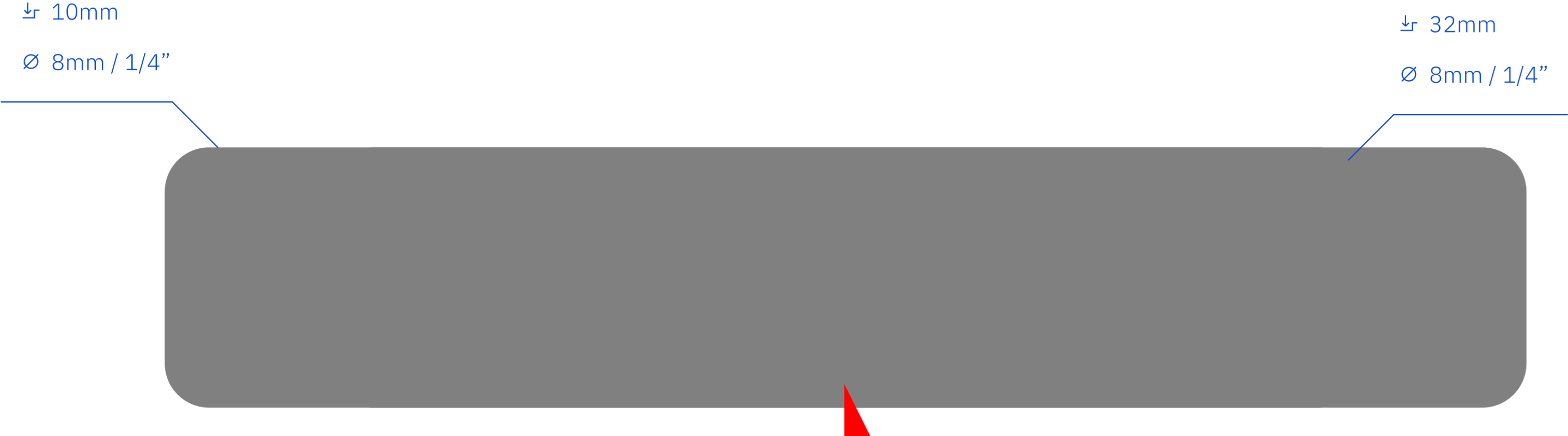

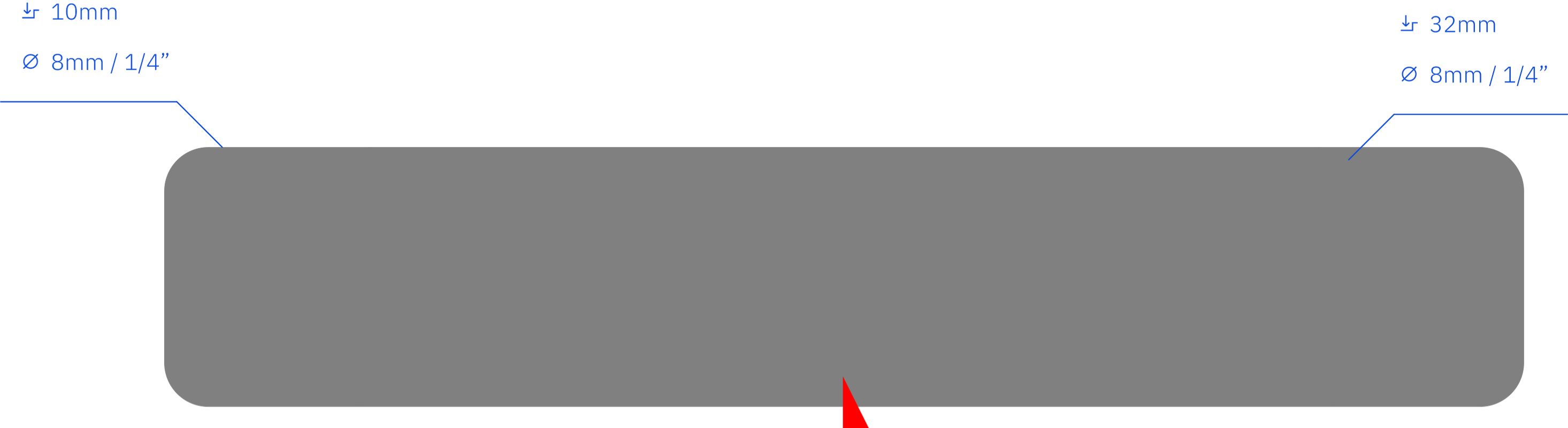

Cut Info
Recommended Cutters
8mm / 1/4"
Mortise Depth
32mm
Material Thickness
42mm
Report file issues
Files
Cut Files
HES3D-W190 - Door - REV A.svg
HES3D-W190 - Frame - REV A.svg
Manufacturer Resources
HES3D-W190.pdf
Download All Files
