Sugatsune - HES3D-E190 Concealed - 190mm L x 56mm H x 34mm W

Sugatsune

HES3D-E190

Hinge Details

Overall Dimensions

190mm L x 56mm H x 34mm W

Style

Concealed

Screw Size

M5 x 30mm

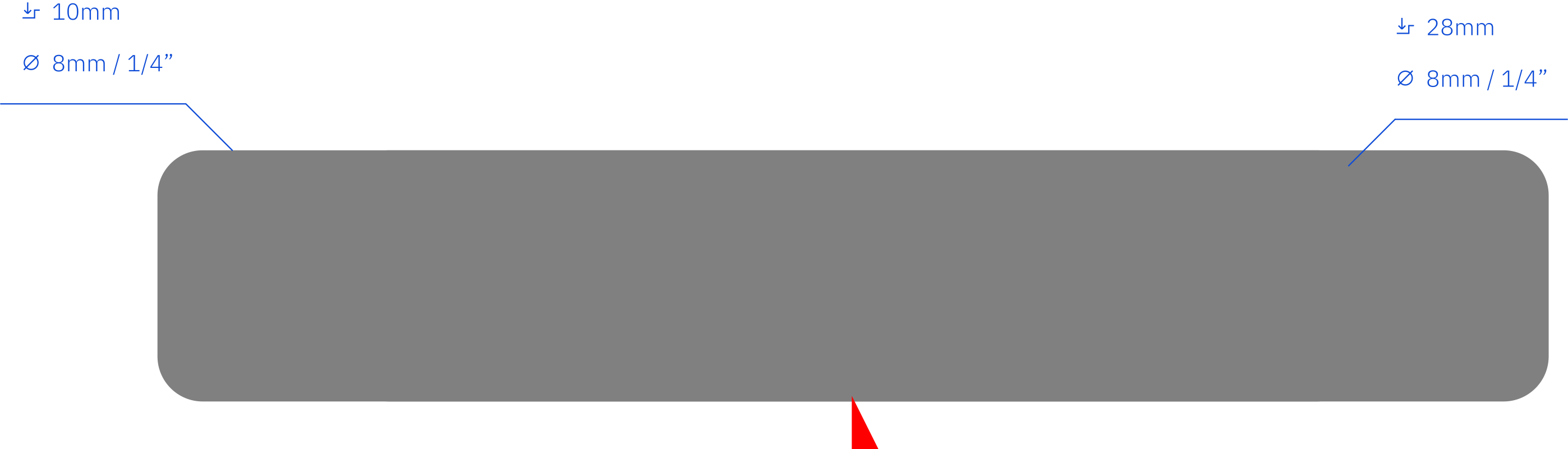

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

28mm

Material Thickness

38mm

Files

Cut Files

Manufacturer Resources

HES3D-E190.pdf
