Sugatsune - HES3D-90 Concealed - 90mm L x 32mm H x 18mm W

Sugatsune

HES3D-90

Hinge Details

Overall Dimensions

90mm L x 32mm H x 18mm W

Style

Concealed

Screw Size

M4 x 20mm

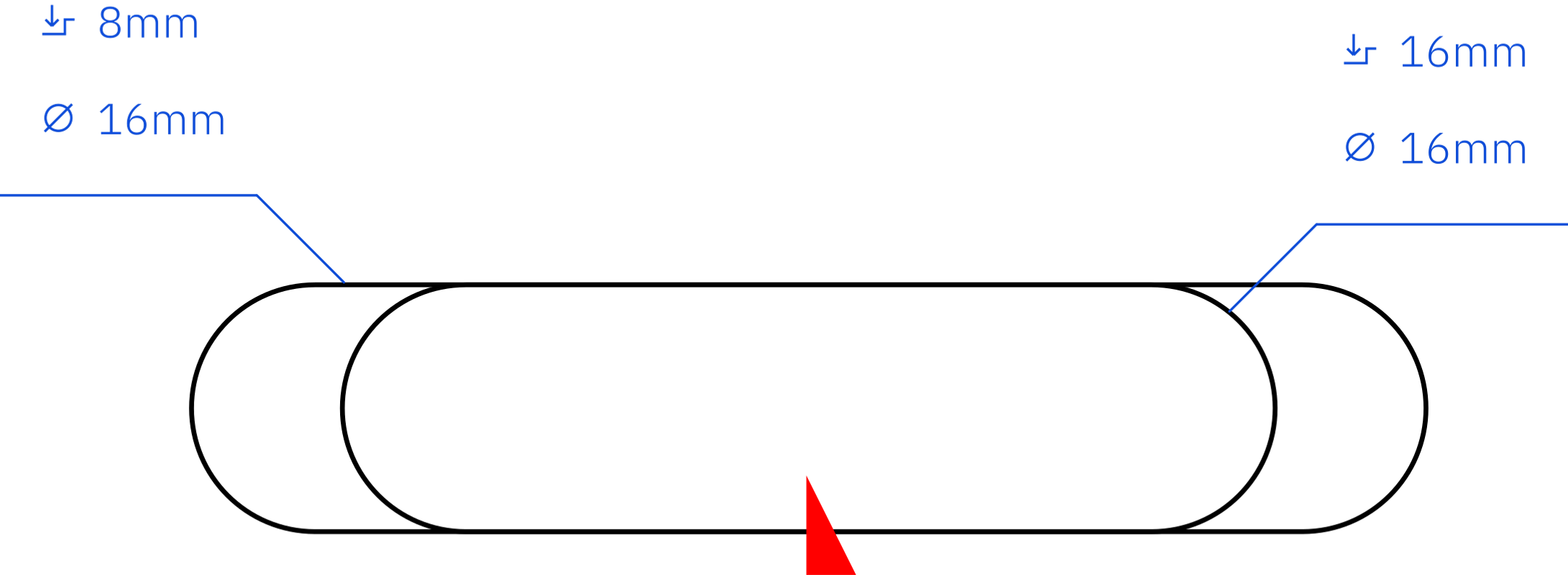

Cut Info

Recommended Cutters

16mm

Mortise Depth

16mm

Material Thickness

23mm

Files

Report File Issues

Cut Files

Manufacturer Resources

HES3D-90.pdf
