Häfele - Rafix 20 - 16mm Ready To Assemble - ⌀ 20mm x 13.9mm H

Häfele

Rafix 20 - 16mm

Fastener Details

Overall Dimensions

⌀ 20mm x 13.9mm H

Style

Ready To Assemble

Required Additional Hardware

Rafix connecting bolt required

Cut Info

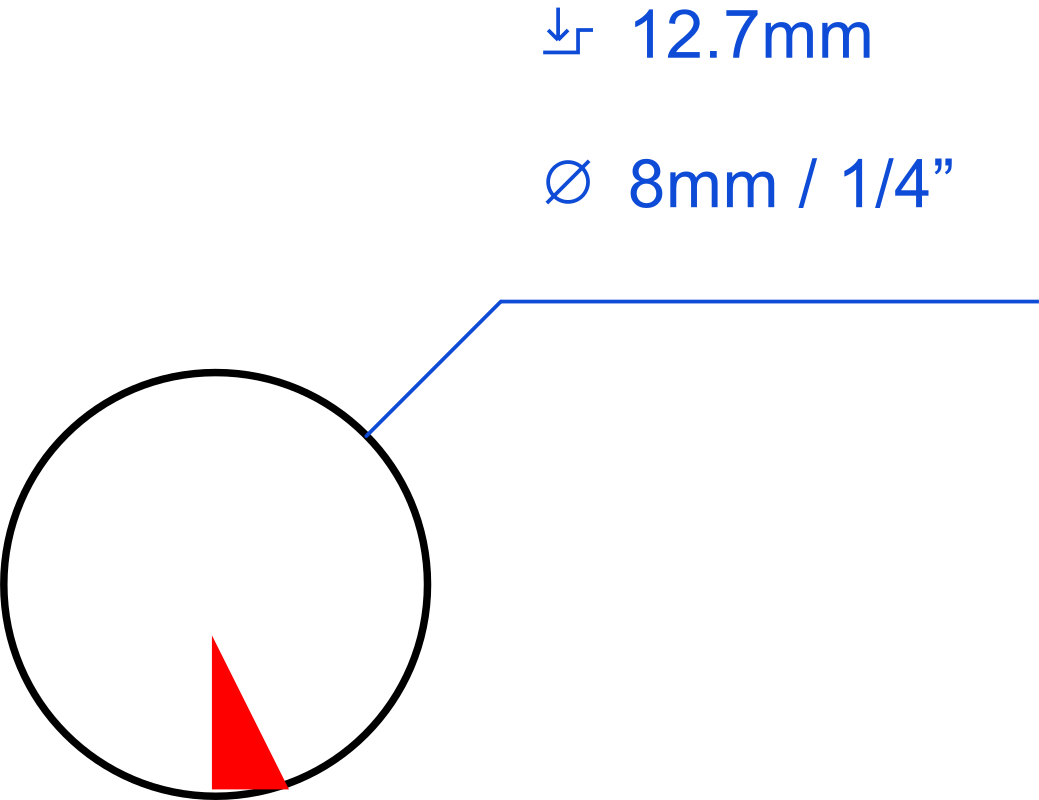

Recommended Cutters

8mm / 1/4"

Mortise Depth

12.7mm

Material Thickness

16mm

Files

Report File Issues

Cut Files

Manufacturer Resources

Rafix_20_Installation.pdf
