Brusso

CB-302 Butt Hinge

Hinge Details
Overall Dimensions

1.250" L x 0.495" W x 0.187" H

Style

Butt

Screw Size

#3

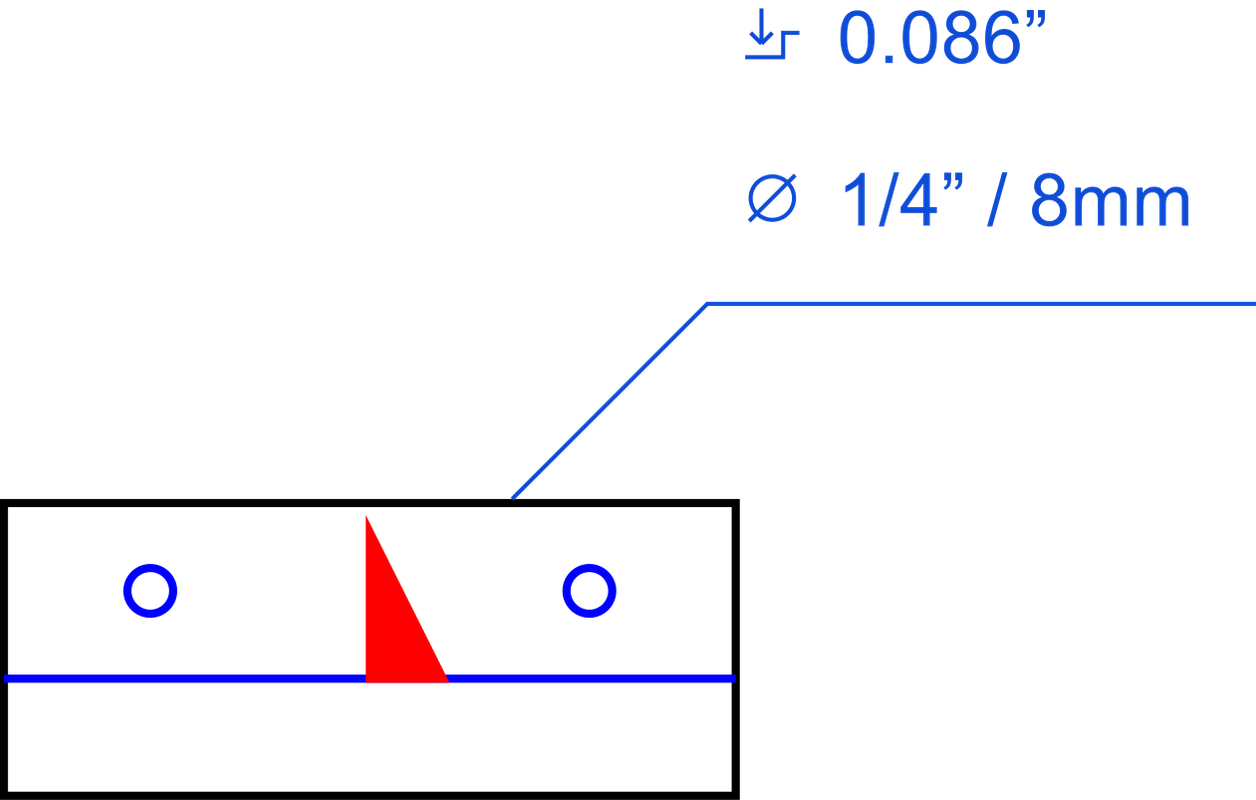

Cut Info
Recommended Cutters

8mm / 1/4"

Mortise Depth

0.086"

Additional Info

Chisel sharp corners

Files
Cut Files
Manufacturer Resources

Brusso_Hardware_LLC_Installation_Instructions_CB-302_Butt_Hinge.pdf

Brusso_Hardware_LLC_Tear_Sheet_CB-302_Butt_Hinge.pdf
