SOSS - BH104 Barrel - ⌀ 10mm x 23mm L

SOSS

BH104

Hinge Details

Overall Dimensions

⌀ 10mm x 23mm L

Style

Barrel

Screw Size

#3

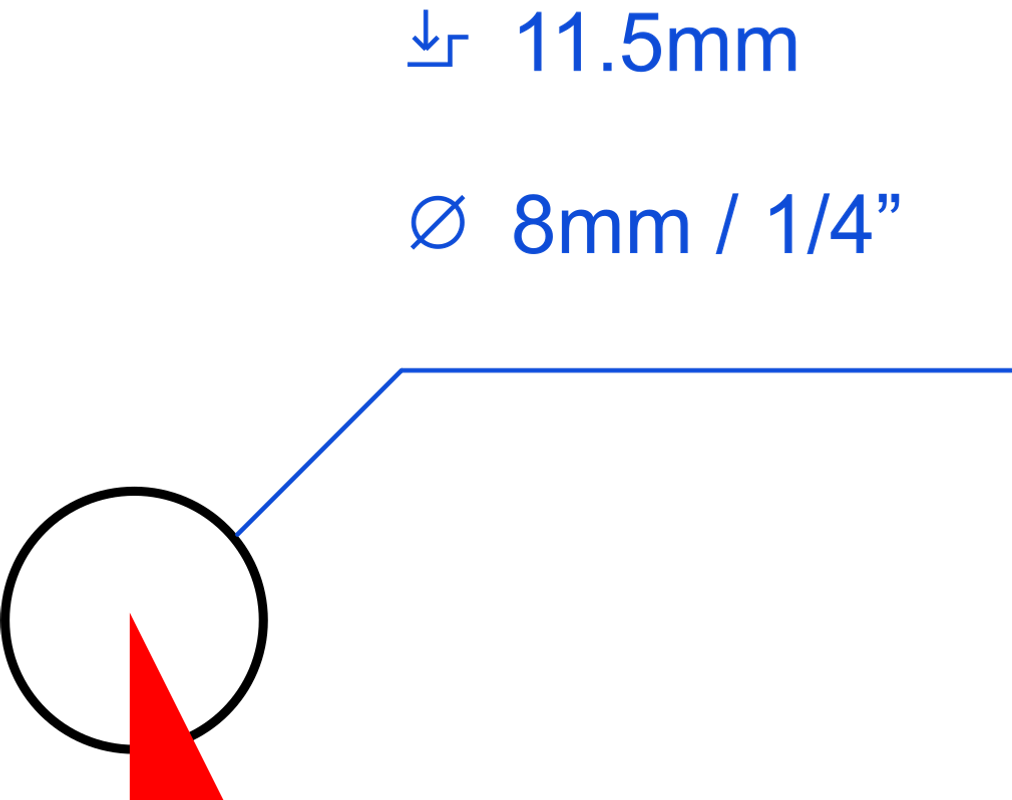

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

11.5mm

Material Thickness

0.5"

Files

Cut Files

Manufacturer Resources

Barrel-Hinge-Instructions.pdf

SOSS_BH104R.pdf
