Blum

Horizontal Mounting Plate

Mounting Plate Details
Style

Horizontal

Screw Size

5mm, #6

Required Additional Hardware

CLIP Top Concealed Hinge

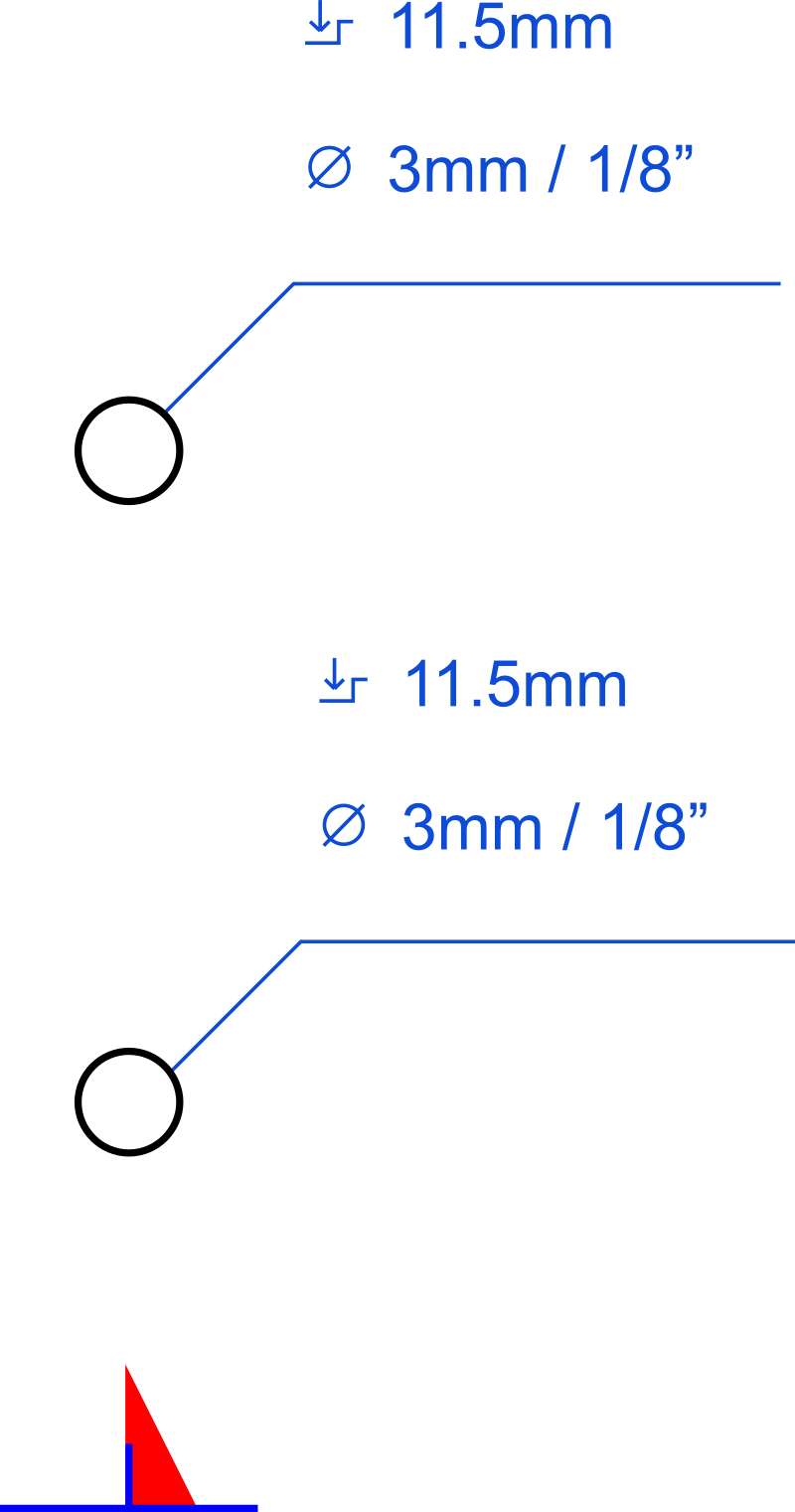

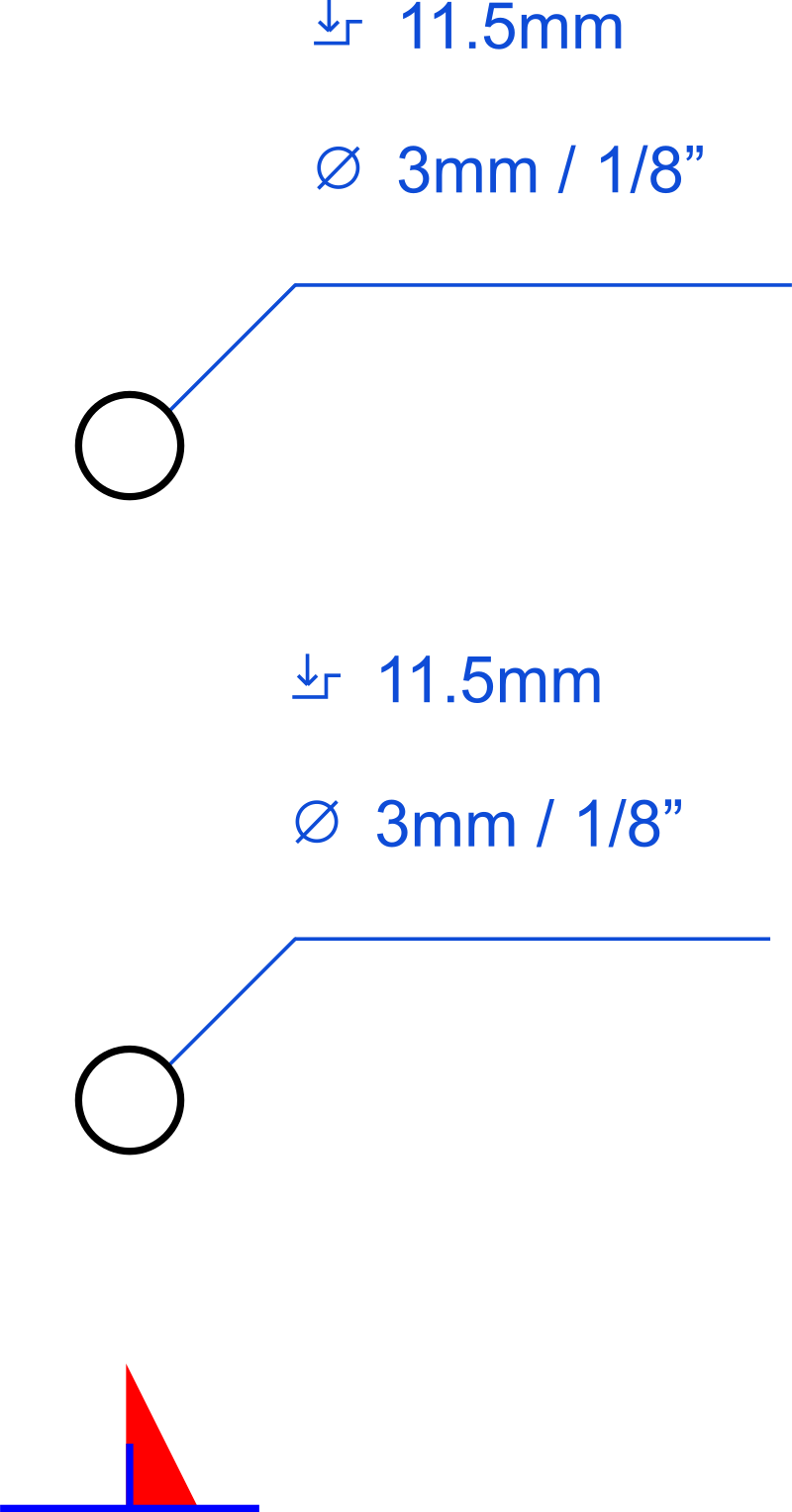

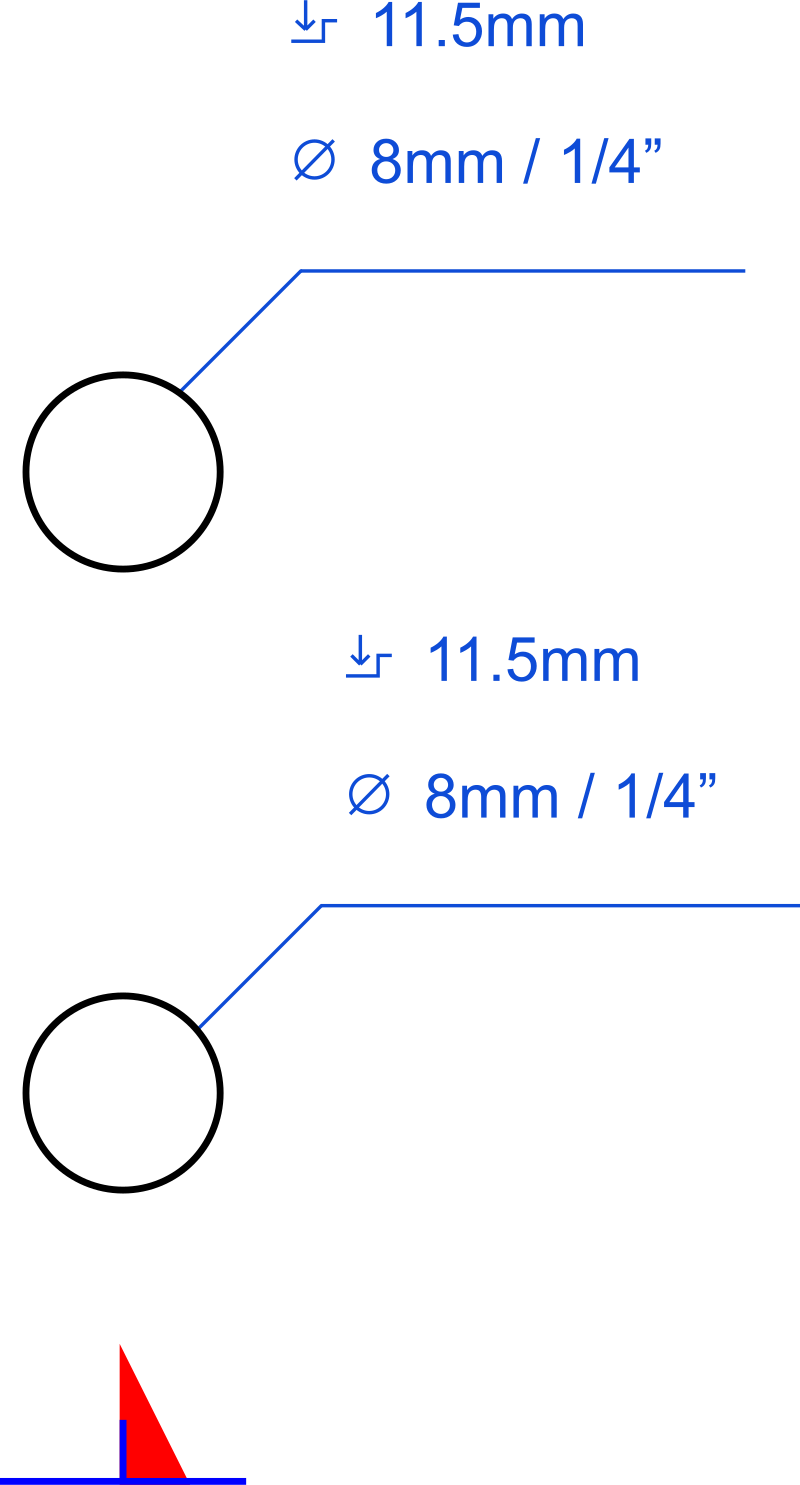

Cut Info
Recommended Cutters

8mm, 3mm / 1/4", 1/8" / Engrave

Mortise Depth

11.5mm

Files
Cut Files
Manufacturer Resources

Blum CLIP Series Attachment and Adjustment.pdf

Blum CLIP Series Detailed Information.pdf

Blum CLIP Series Hinge Identification Guide.pdf

Blum CLIP Series Installation Instructions.pdf
