Blum

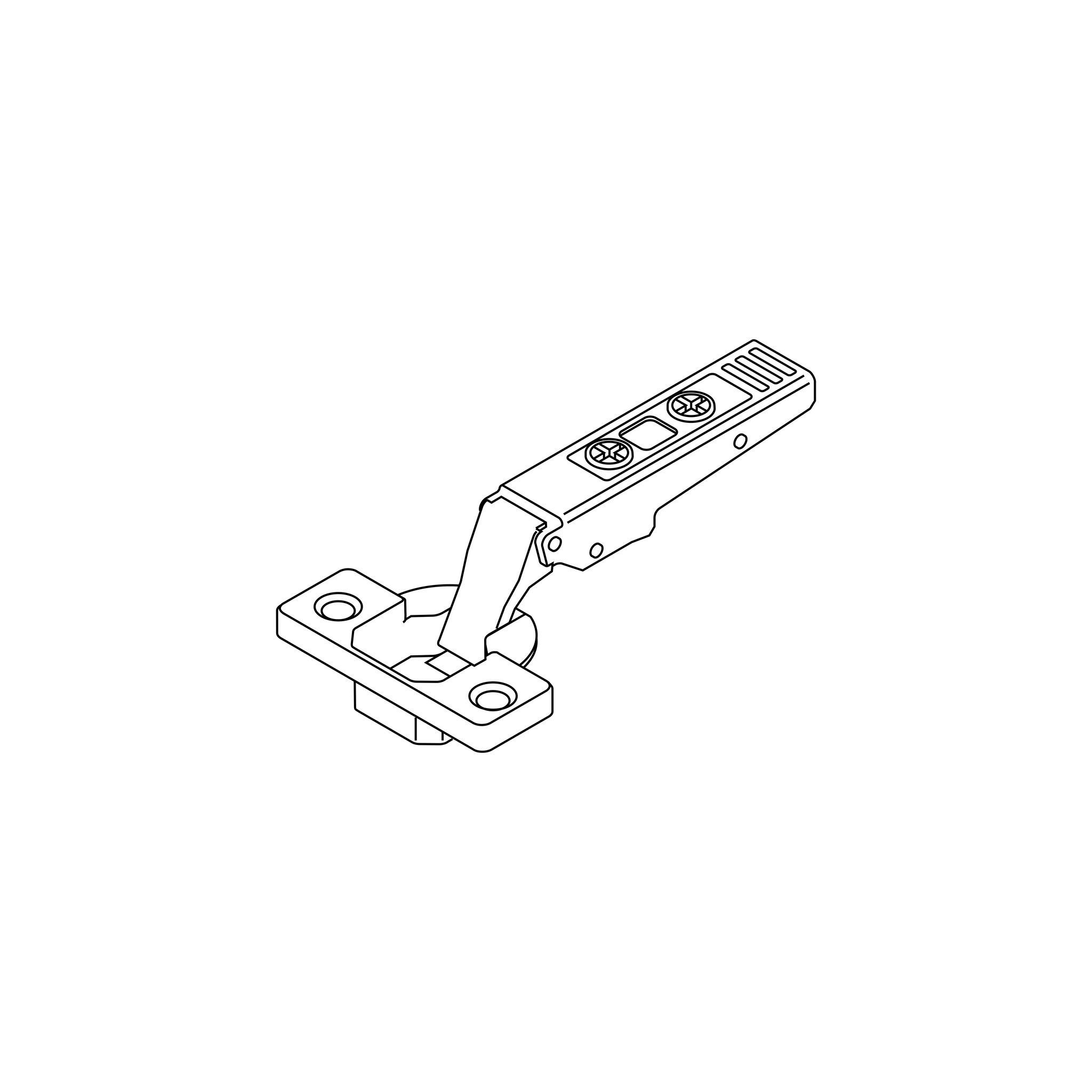

CLIP Top Concealed Hinge
Hinge Details
Style
ConcealedScrew Size
5mm, #6Required Additional Hardware

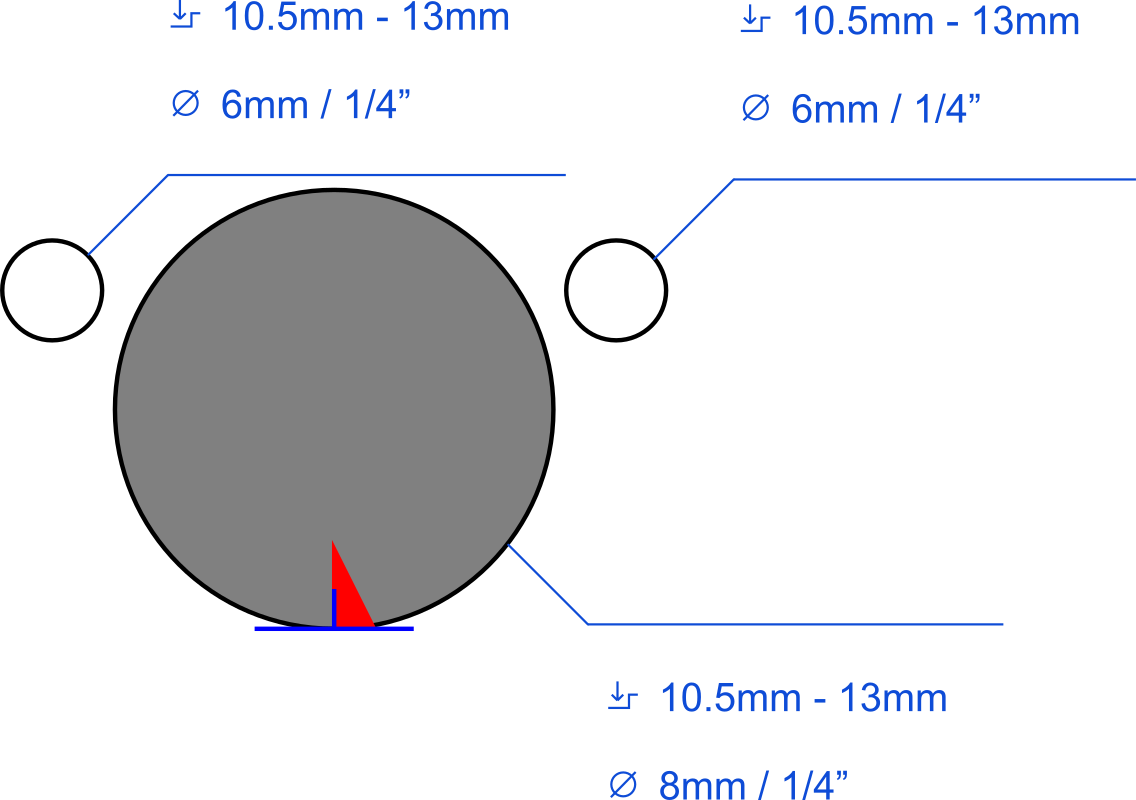

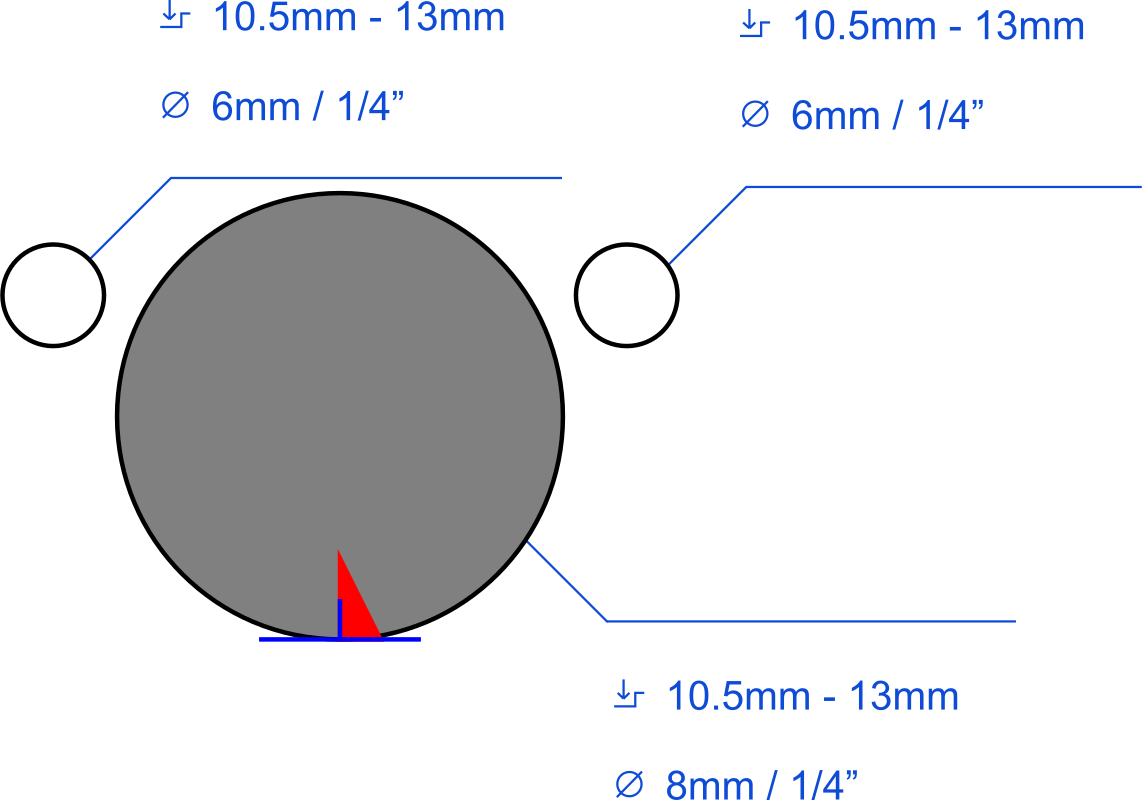

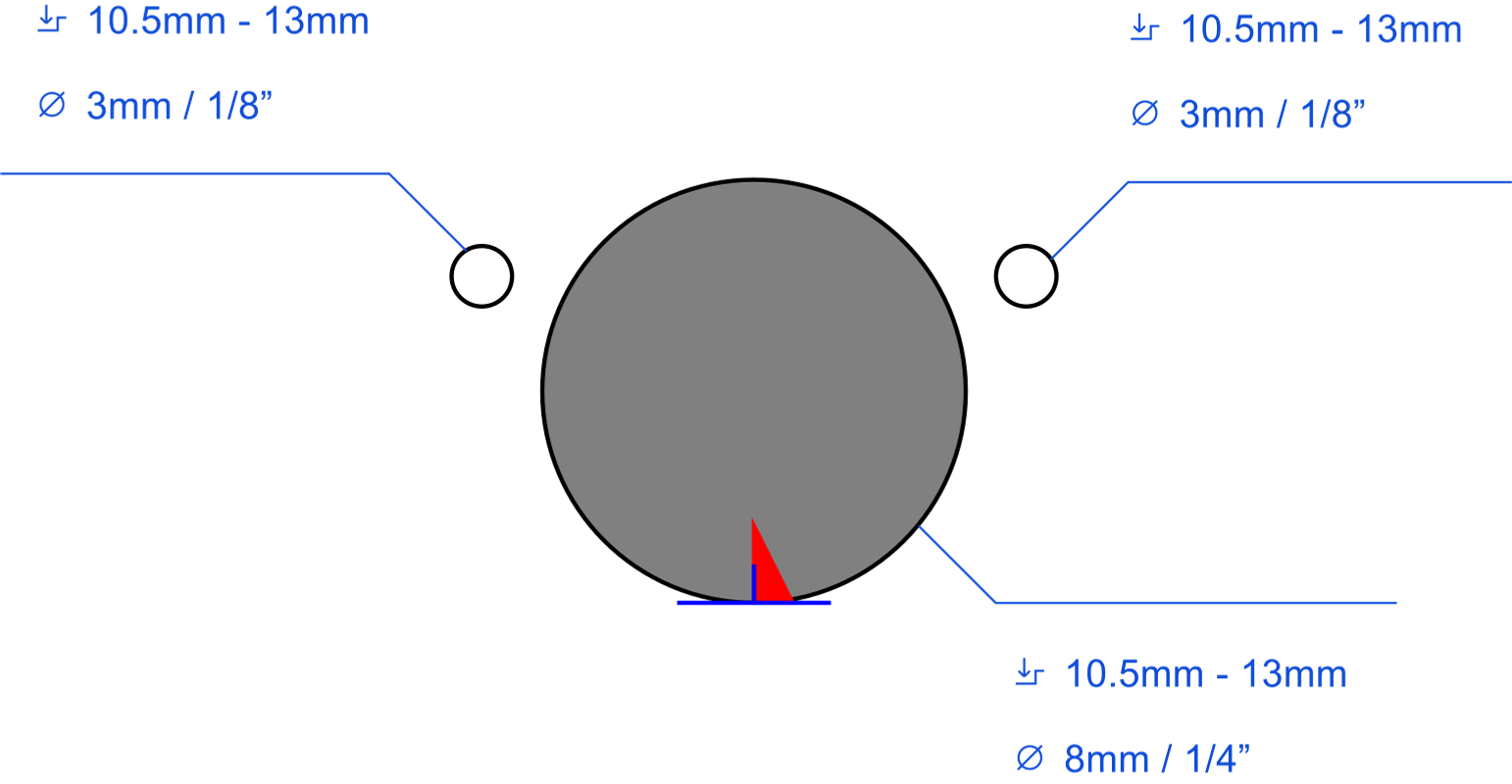

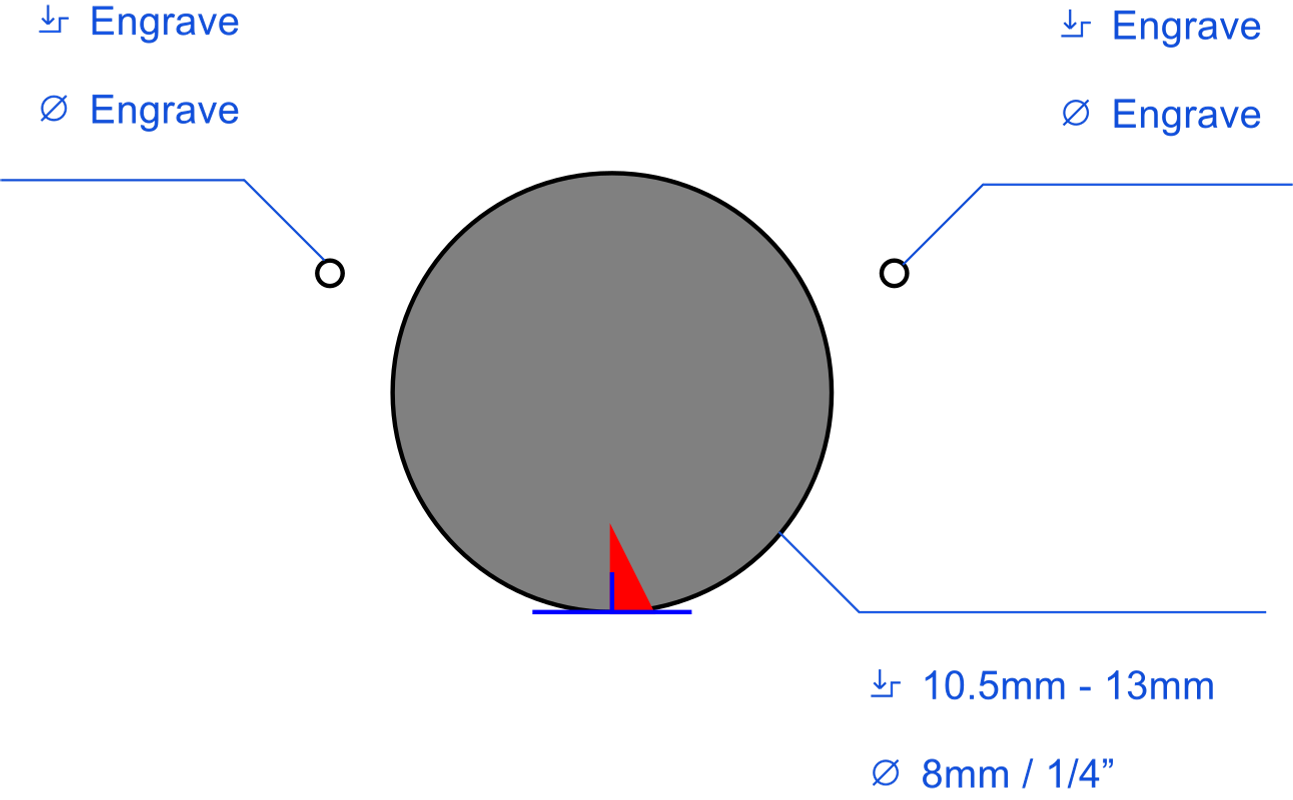

CLIP Top Mounting PlateCut Info
Recommended Cutters
8mm, 6mm, 3mm / 1/4", 1/8" / EngraveMortise Depth
10.5mmAdditional Info
See manufacturer's instructions for bore distance and for depths less than 13mmFiles
Cut Files
CLIP Top EXPANDO Concealed Hinge - REV B.svg
CLIP Top INSERTA Concealed Hinge - REV B.svg
CLIP Top Knock-in Concealed Hinge - REV B.svg
CLIP Top Screw-on Concealed Hinge - System Screw - REV B.svg
CLIP Top Screw-on Concealed Hinge - Wood Screw - REV B.svg
Manufacturer Resources
Blum CLIP Series Attachment and Adjustment.pdf
Blum CLIP Series Detailed Information.pdf
Blum CLIP Series Hinge Identification Guide.pdf
Blum CLIP Series Installation Instructions.pdf
