Brusso

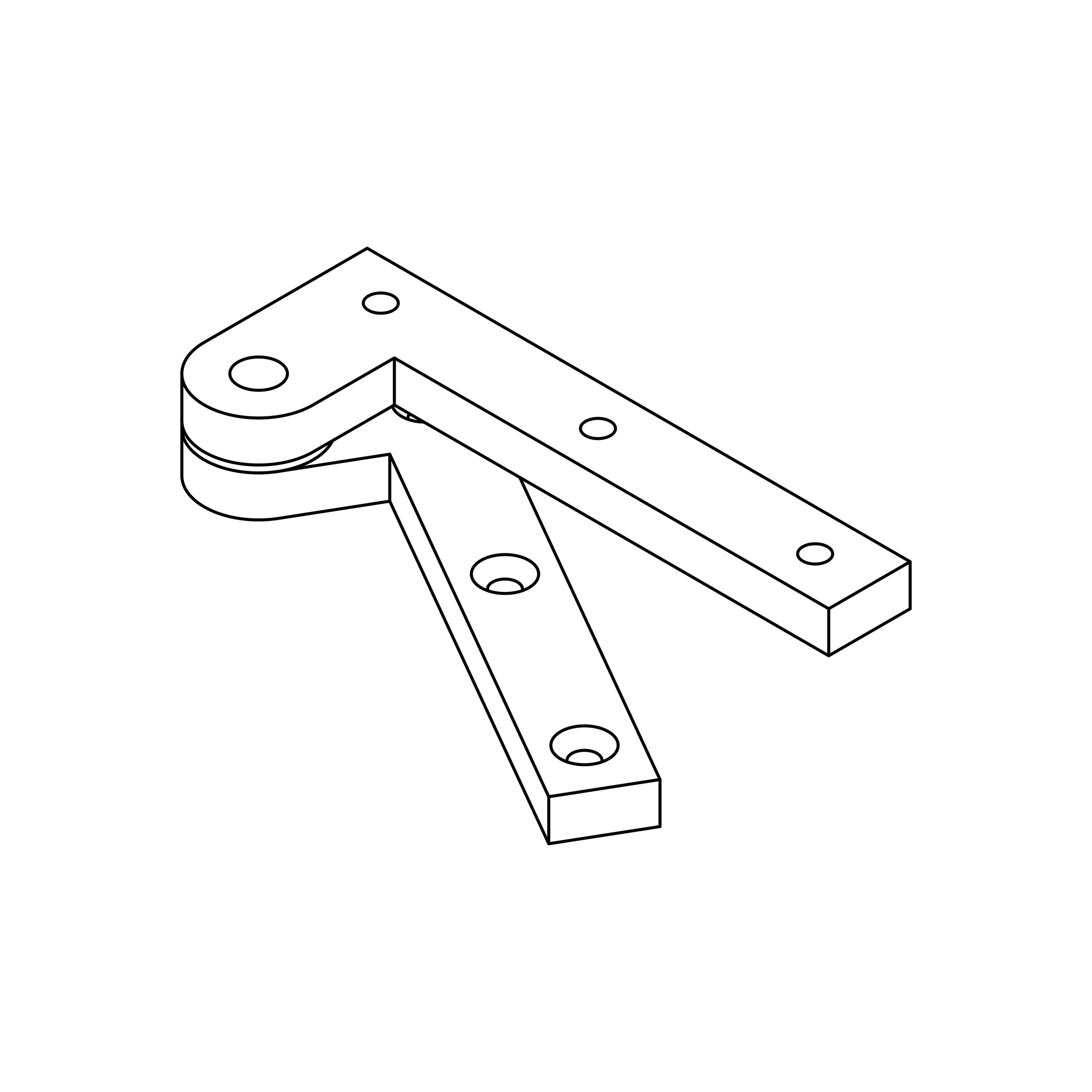

L-19 Offset Pivot Hinge

Hinge Details
Overall Dimensions

5.000" L x 2.000" W x 0.813" D

Style

Offset Pivot

Screw Size

#10

Cut Info
Recommended Cutters

8mm / 1/4"

Mortise Depth

0.375"

Additional Info

Chisel sharp corners

Files
Cut Files
Manufacturer Resources

Brusso_Hardware_LLC_Installation_Instructions_L-19_Pivot_Hinge.pdf

Brusso_Hardware_LLC_Tear_Sheet_L-19_Pivot_Hinge.pdf
