Brusso - L-39 Offset Pivot Hinge Offset Pivot - 1.750" L x 0.866" W x 0.281" D

Brusso

L-39 Offset Pivot Hinge

Hinge Details

Overall Dimensions

1.750" L x 0.866" W x 0.281" D

Style

Offset Pivot

Screw Size

#4

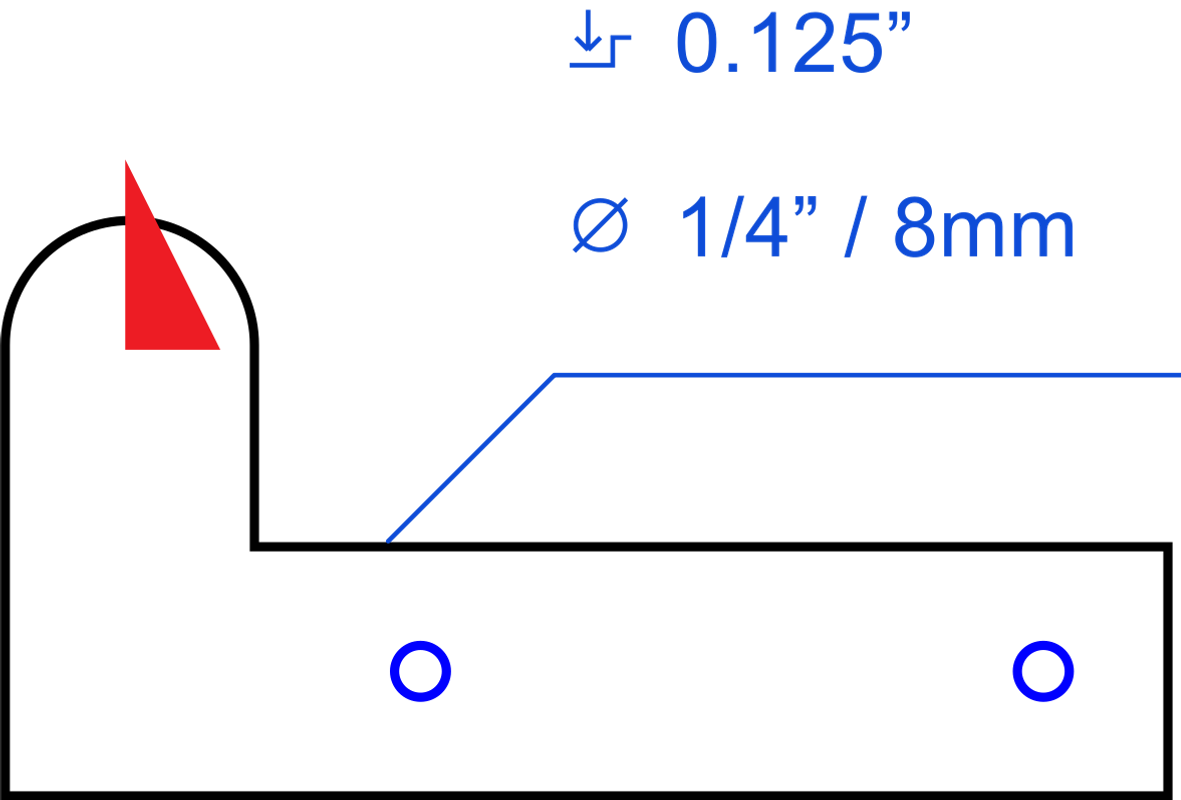

Cut Info

Recommended Cutters

8mm / 1/4"

Mortise Depth

0.125"

Additional Info

Chisel sharp corners

Files

Report File Issues

Cut Files

Manufacturer Resources

Brusso_Hardware_LLC_Installation_Instructions_L-39_Pivot_Hinge.pdf
Brusso_Hardware_LLC_Tear_Sheet_L-39_Pivot_Hinge.pdf
