Brusso

ST-93 Center Pivot Hinge

Hinge Details
Overall Dimensions

2.500" L x 0.625" W x 0.600" D

Style

Pivot

Screw Size

#8

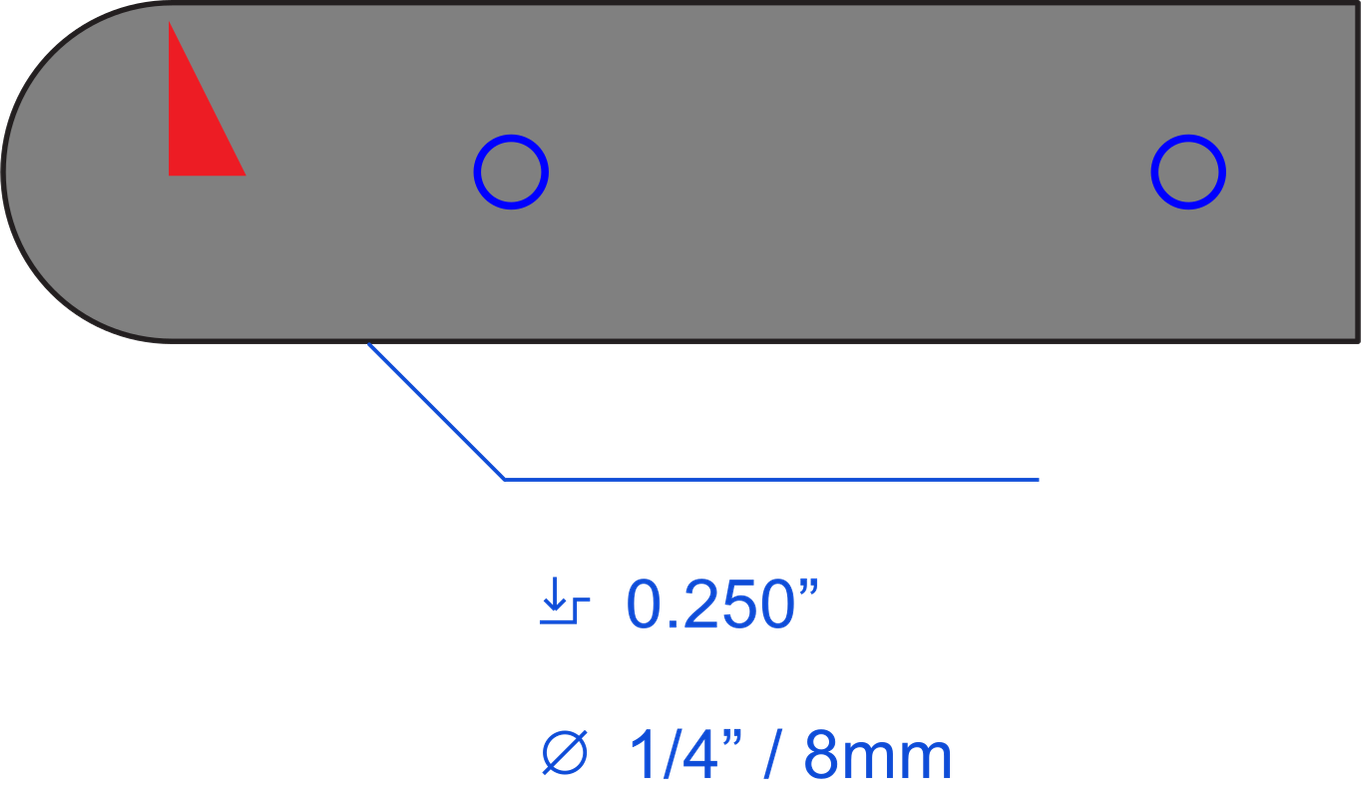

Cut Info
Recommended Cutters

8mm / 1/4"

Mortise Depth

0.25"

Additional Info

Chisel sharp corners

Files
Cut Files
Manufacturer Resources

Brusso_Hardware_LLC_Installation_Instructions_ST-93_Pivot_Hinge.pdf

Brusso_Hardware_LLC_Tear_Sheet_ST-93_Pivot_Hinge.pdf
