Connie's Computer Monitor Riser

By john.d.schneider
|
BY-NC-SA 4.0 License
|
Updated Wed Jul 10 2024

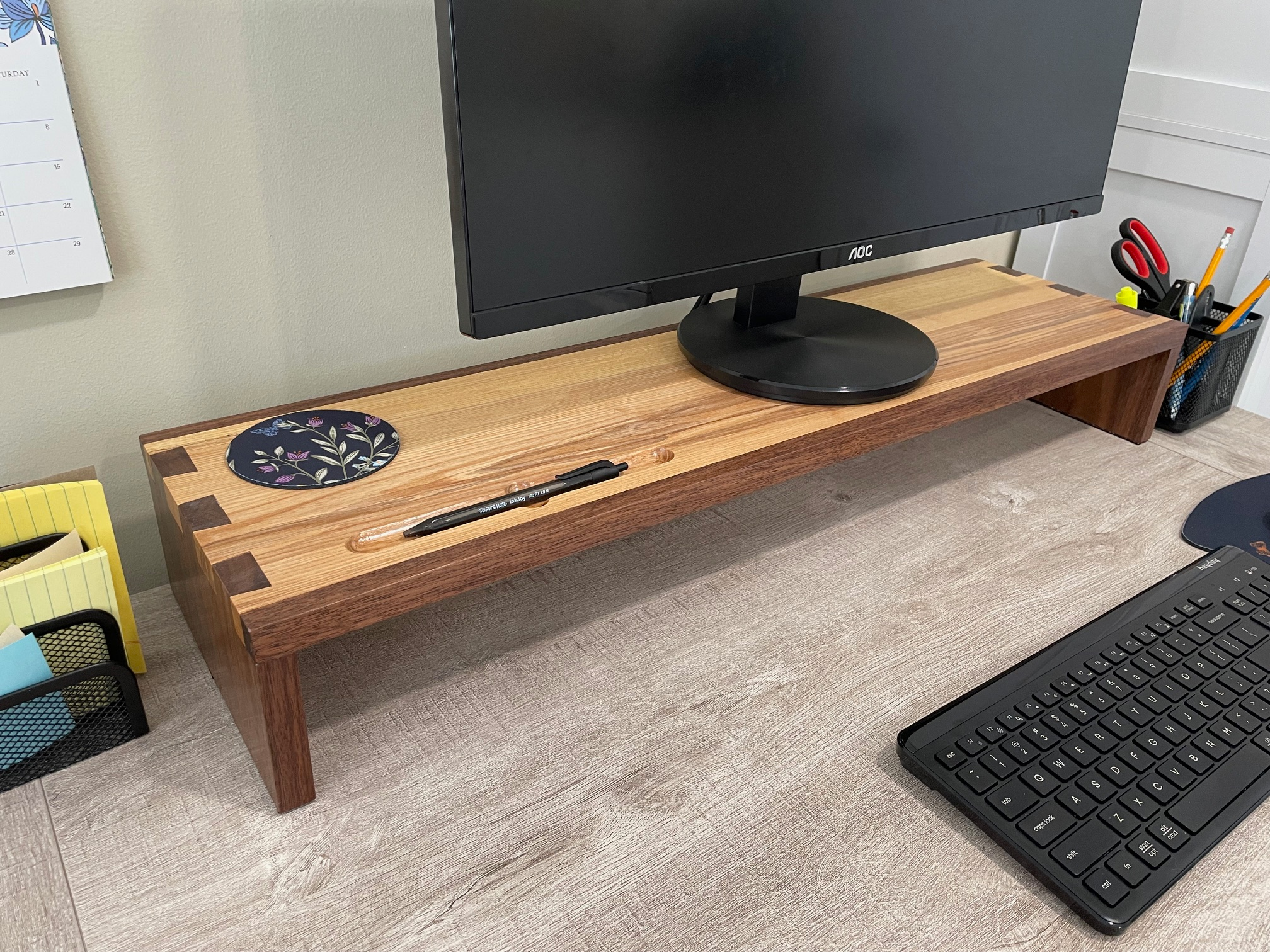

This is a computer monitor riser I made for my wife's office. It is made of ash and walnut.

1 hr
Easy

13

Decor

Files Included (6)

  • Computer_riser_dovetails.png

    68 kB
  • computer_riser_pins_a.svg

    1 kB
  • computer_riser_pins_b.svg

    1 kB
  • computer_riser_tails.svg

    1 kB
  • Note on Dovetails for Connies computer riser.docx

    107 kB
  • pencil-holder.svg

    6 kB

Materials

The top of the computer riser is 3/4" x 9" x 32". It is made from a piece of 3/4" x 7 7/8" x 32" piece of ash, with two pieces of 3/4" x 1/2" x 32" walnut strips glued to both the front and back.

The legs are each 3/4" x 9" x 4".

Tools

Shaper Origin

Table Saw

Clamps

Dovetail bit, 5/8" diameter, 7 degree angle, 3/4" tall

Straight bit, 1/2" diameter, 1" tall

Instructions

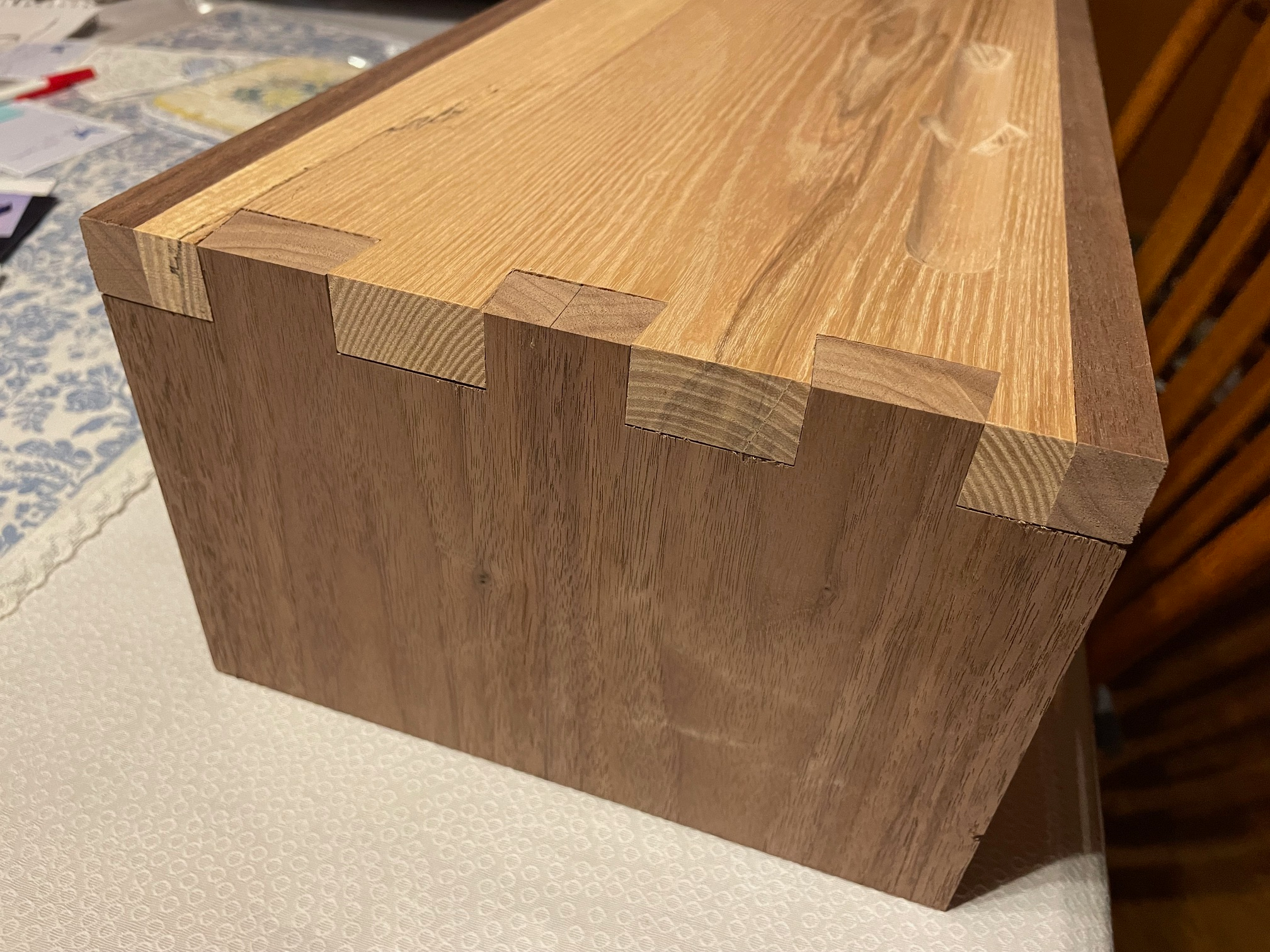

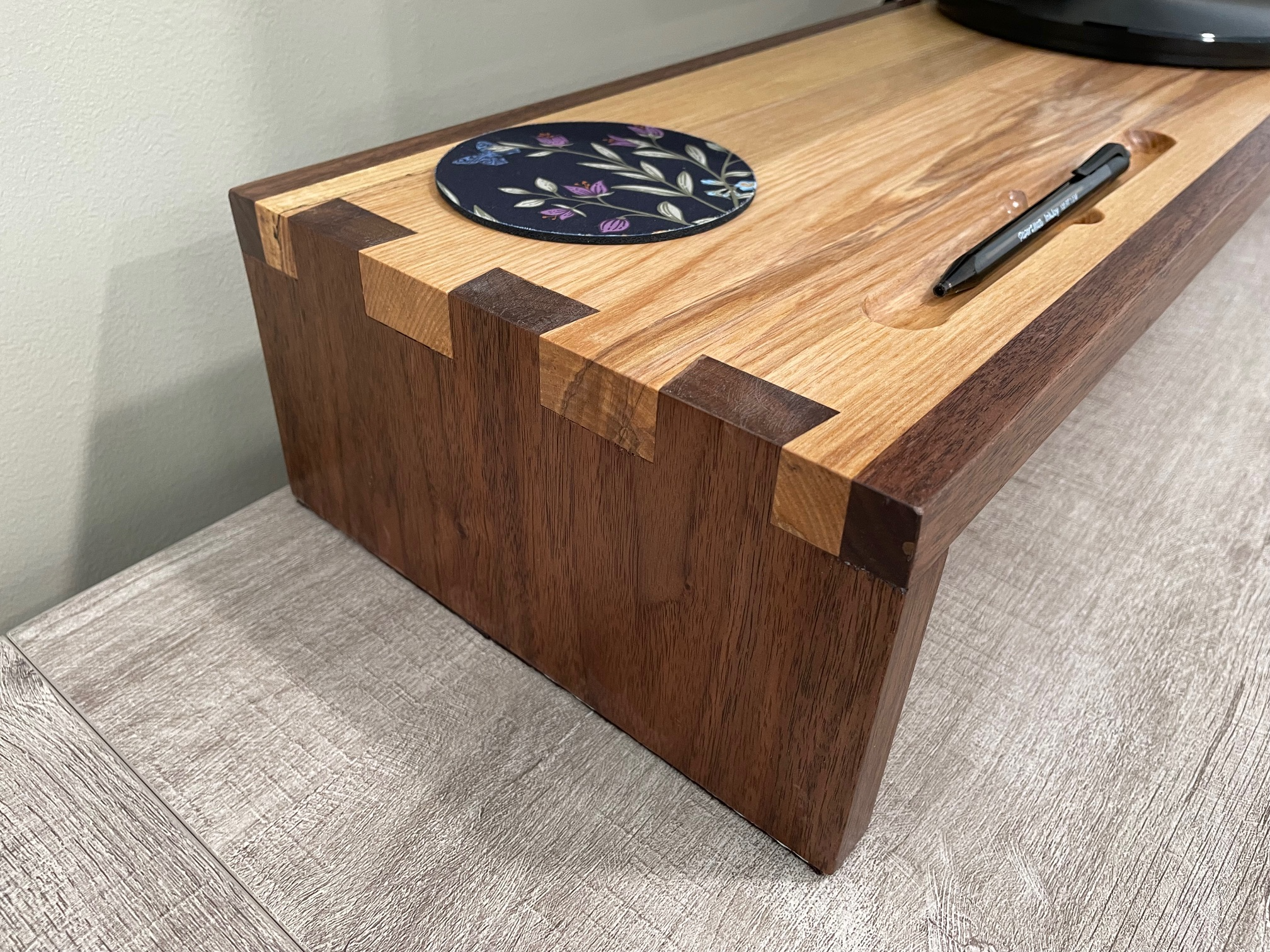

This is the first project I ever mad with the Shaper Origin. I used the very excellent site dovetails.bieber.dev to design the dovetails. I included a .png file of the image on the site in case it helps anyone who wants to use the site to design dovetails. It took me a few tries to understand how to use the .svg files in order to create dovetails that fit right, so I wrote up some notes to myself for the next time in hopes it will make it easier to remember the steps. I have included those notes in the project files in case it will help anyone else. I recommend making the dovetails from scraps the first time, until you get the hang of it. Be sure to use scrap that is the same dimensions as your expensive wood, so they will correctly prepare you for any adjustments you need to make so they fit right.
