Small Side Table

By john.d.schneider
|
BY-NC-SA 4.0 License
|
Updated Wed Jul 10 2024

This is a small side table made from Walnut and Brazillian cherry. It is joined using mortises and tenons cut using the SO.

> 2 hr
Intermediate

8

Furniture

Files Included (15)

  • IMG_2127.jpg

    1 MB
  • IMG_2128.jpg

    1 MB
  • IMG_2143.jpg

    1 MB
  • IMG_2144.jpg

    1 MB
  • IMG_2145.jpg

    950 kB
  • IMG_2146.jpg

    1 MB
  • IMG_2150.jpg

    1 MB
  • IMG_2151.jpg

    1 MB
  • IMG_2166.jpg

    1 MB
  • mortises-for-side-table-leg-tenon.svg

    5 kB
  • mortises-for-side-table-legs-a.svg

    14 kB
  • mortises-for-side-table-legs-left.svg

    14 kB
  • mortises-for-side-table-legs-right.svg

    14 kB
  • tenons-for-side-table-rail-b.svg

    2 kB
  • tenons-for-side-table-rails-a.svg

    2 kB

Materials

The legs are 3/4" walnut. Each leg is two pieces, one that is 3" X 29", and the other that is 2.25" X 29".

The front and back rails are 1/2" Brazillian cherry, 3" x 13.5" and 1.5" x 13.5". A .75" tenon is cut on the end of each rail, making the finish length 12".

The side rails are are 1/2" Brazillian cherry, 3" x 6.5" and 1.5" x 6.5". A .75" tenon is cut on the end of each rail, making the finish length 5".

The top is a 3/4" glue-up, with walnut in the middle and edges, and Brazillian cherry stripes in between. The finished dimensions are 12.25" x 20".

Tools

Shaper Origin

Table Saw

Tapering jig

Band saw

Sanding Blocks

Clamps for gluing up the top

Clamps for holding the mortises and tenons together.

Instructions

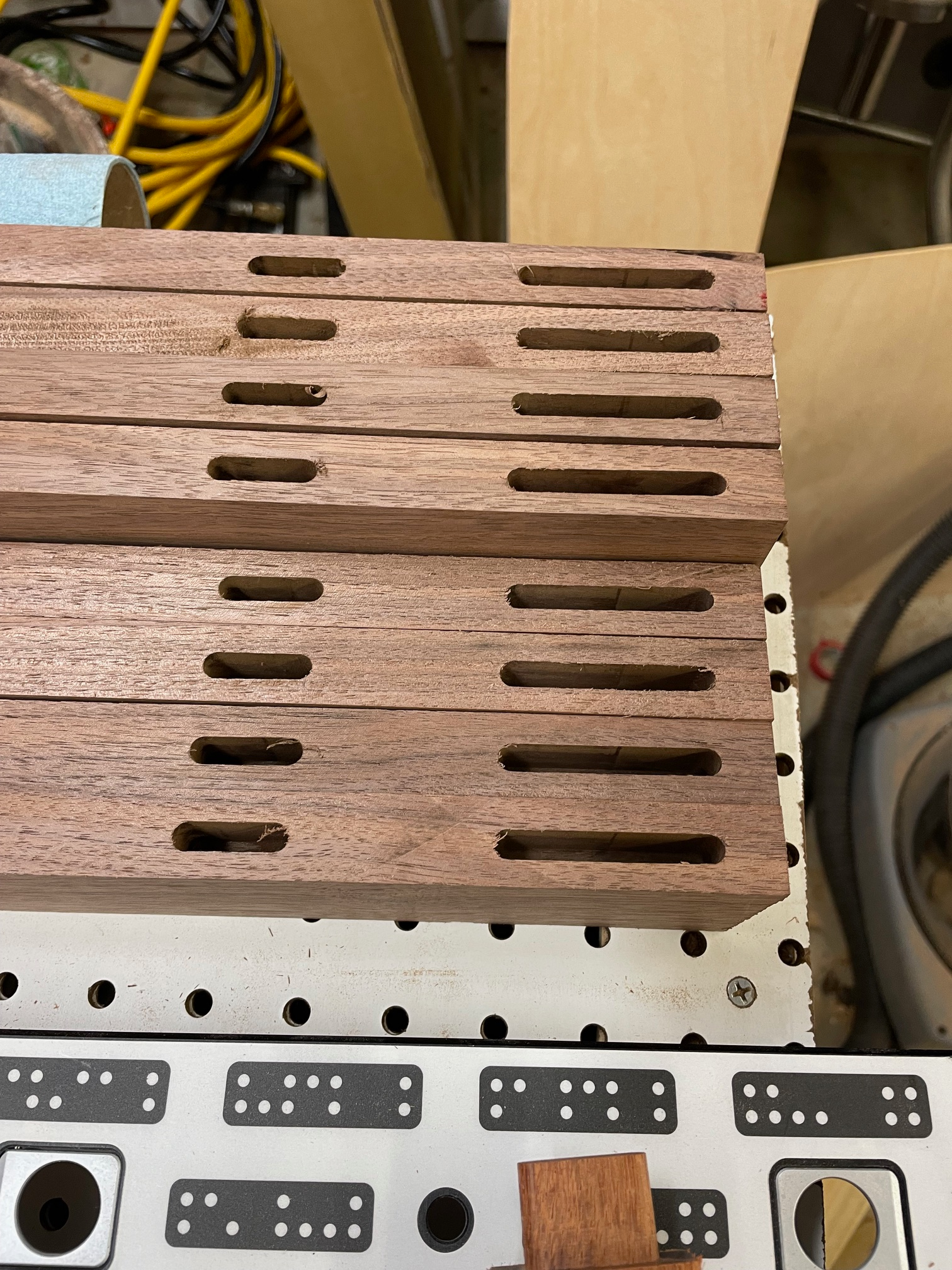

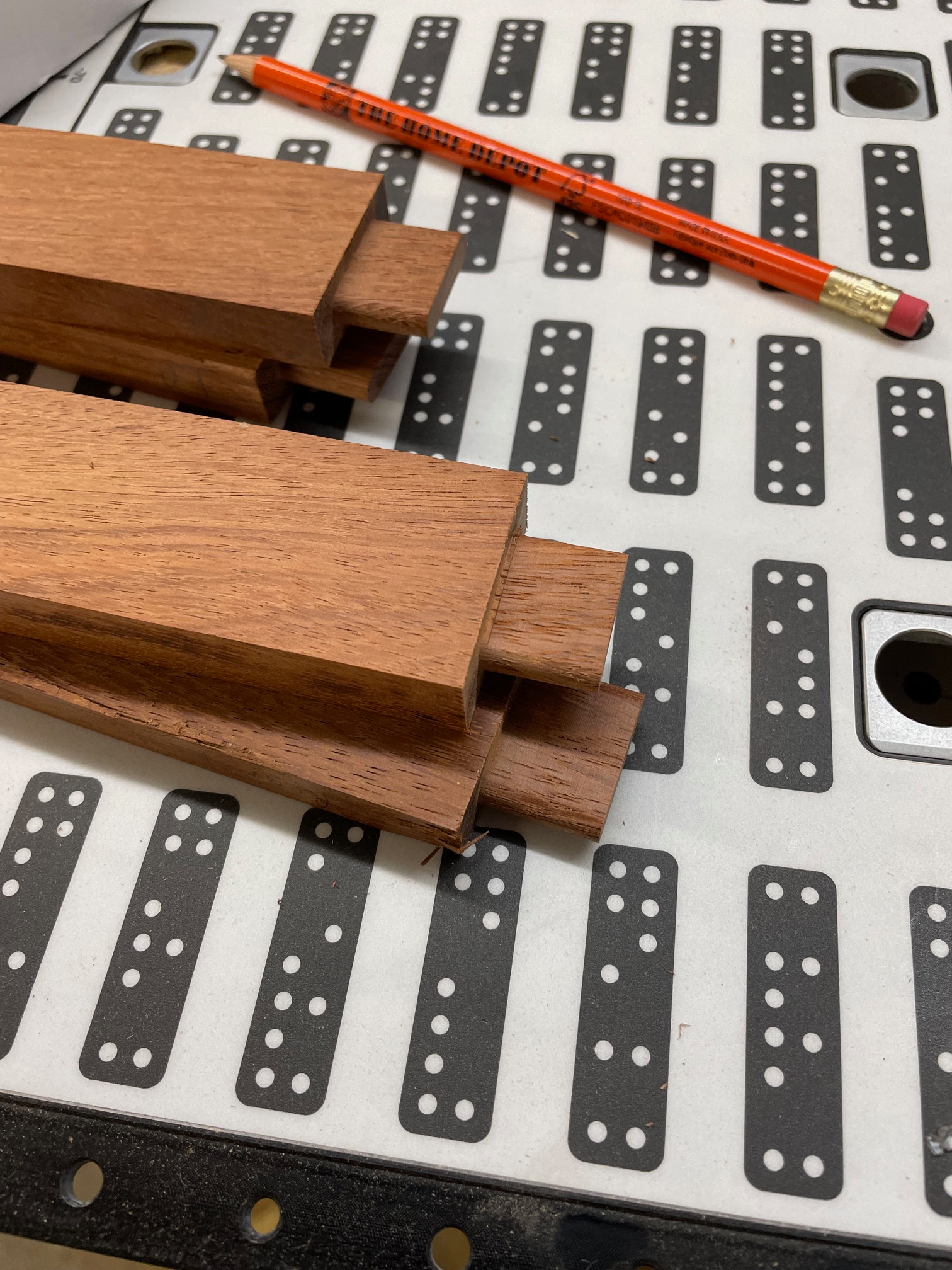

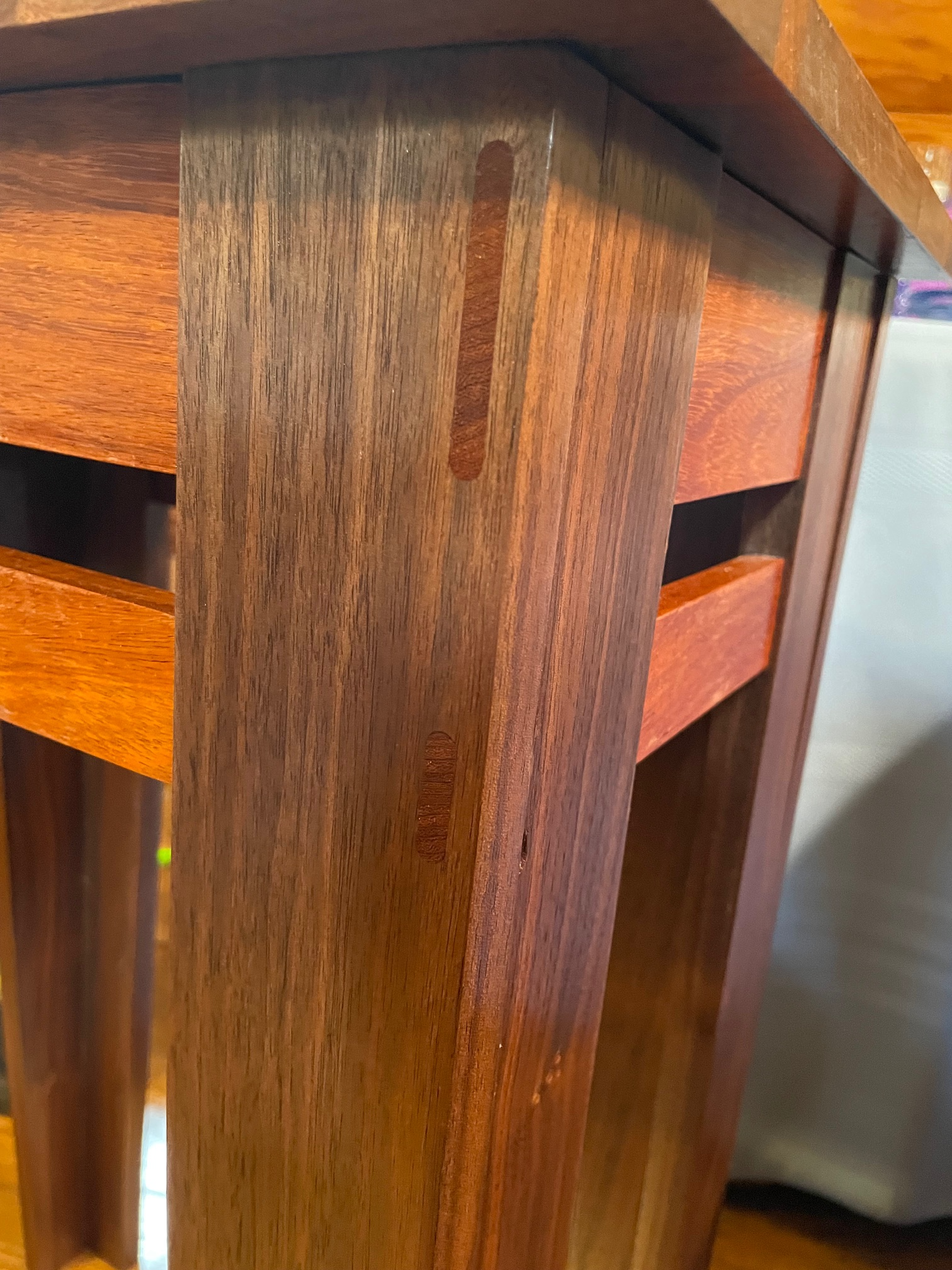

The legs are 3/4" walnut. Each leg is two pieces, one that is 3" X 29", and the other that is 2.25" X 29". I routed the holes for the mortises and dowels using the SO to join the two pieces together. I also used the SO to cut mortises for the rails. The legs are joined to each other at right angles with through tenons and dowels cut using the SO. The result is an angled leg that is 3" on each side. After I glued the legs together, I tapered the legs from about 10" from the top to the bottom, taking off about 1" width off the bottom of each side of each leg. There are two rails each on the top, bottom, and sides. They each have a 3/4" tenon at each end (cut with SO), and glued into the matching mortise in the legs. One trick I used for the first time on this project is to finish sand everything to 240 grit, and apply the first coat of polyurethane (and letting it dry) before gluing the legs together, or the rails to the legs. That way I was able to simply wipe off any glue squeeze-out with a damp cloth, and none of it soaked into the wood. It worked perfectly. Once the legs were glued to each other, and the rails were glued to the legs, I applied clamps and adjusted them as necessary to make sure the legs sat flat on the floor without a wobble, and the four sides were square. Next I attached the top to each of the legs using dowels. I applied three more coats of polyurethane, sanding with fine sandpaper when necessary, until I ended with a top coat applied with just a smooth cloth.
