Magnetic Router Bit Holder French Cleat
Magnetic router bit tray made with friction fit mitre and tenon joinery for glue and fixing free assembly. Part of a series of 8 tool free French Cleats that I cover how to build in the linked Youtube video. Click my profile link to find the others.
16
Cleats
Files Included (15)

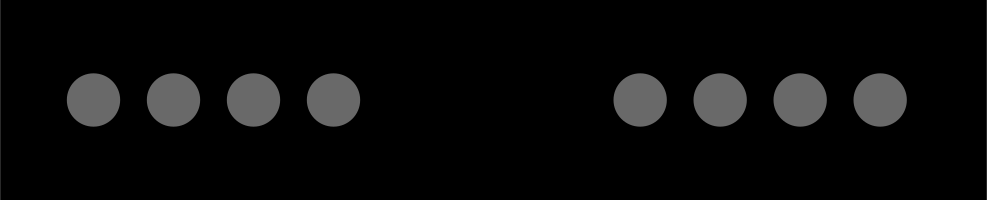

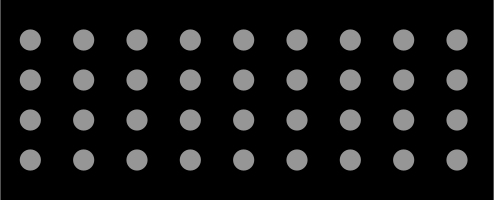

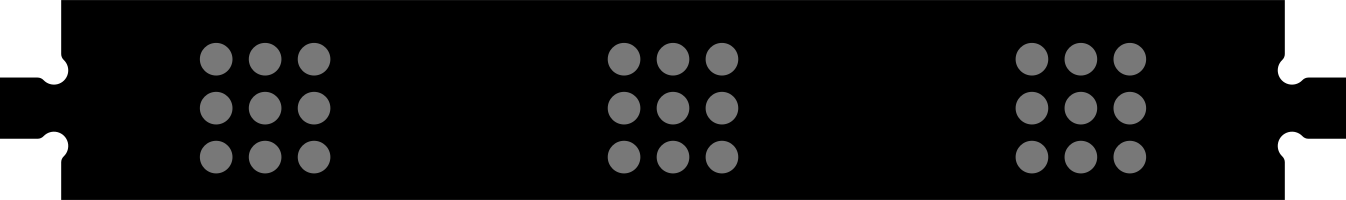

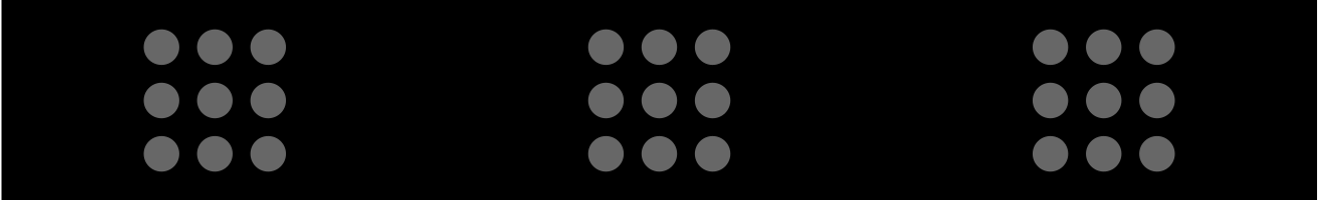

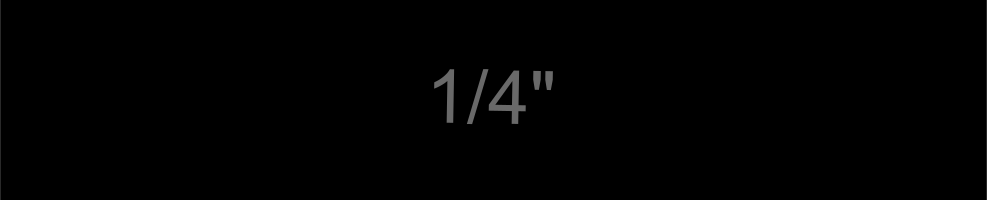

Magnetic Bit Holder 0.25inch Bit Tray - Front Elevation.svg
3 kBMagnetic Bit Holder 0.25inch Bit Tray - Rear Elevation.svg
2 kBMagnetic Bit Holder 0.25inch Bit Tray - Top Elevation.svg

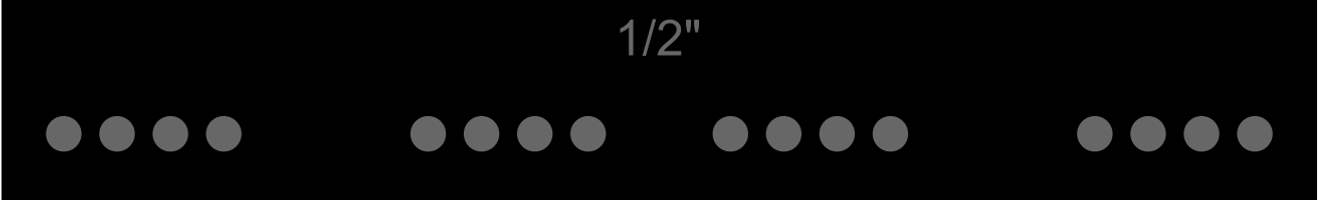

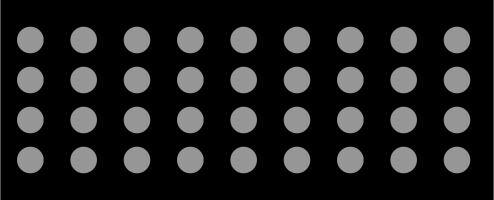

9 kBMagnetic Bit Holder 0.5inch Bit Tray - Front Elevation.svg
9 kBMagnetic Bit Holder 0.5inch Bit Tray - Rear Elevation.svg
7 kBMagnetic Bit Holder 0.5inch Bit Tray - Top Elevation.svg
7 kBMagnetic Bit Holder 8mm Bit Tray - Front Elevation.svg
13 kBMagnetic Bit Holder 8mm Bit Tray - Rear Elevation.svg
2 kBMagnetic Bit Holder 8mm Bit Tray - Top Elevation.svg

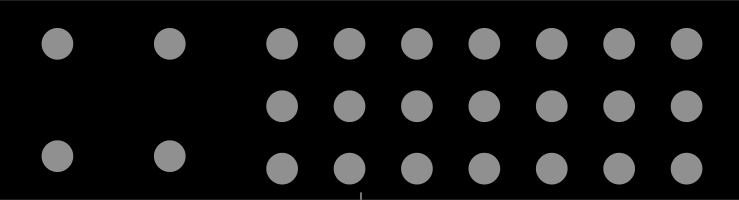

8 kBMagnetic Bit Holder Back 14.8mmED.svg
7 kBMagnetic Bit Holder Bracket 15mmED 2.5inFace.svg
4 kBMagnetic Bit Holder Bracket 15mmED 3inFace.svg
4 kBMagnetic Bit Holder Bracket 15mmED 60mmFace.svg
4 kBMagnetic Bit Holder Bracket 15mmED 80mmFace.svg
4 kBMagnetic Bit Holder Half Shelf 14.8mmED.svg
2 kB
Materials
15mm Ply (or similar see instructions)
Spoil board
Reference board + Shaper tape
Double sided tape
8mm x 3mm magnets
CA glue (for magnets)
Wood glue (for block glue up)
Sand paper
Tools
Shaper Origin
Shaper Workstation
6mm, 8mm spiral upcut bits (or similar)
Engraving bit (optional)
Table Saw/Mitre Saw
Jointer (optional)
Clamps
Instructions
More complete description of how to build is in the linked Youtube Video (use chapters to jump to it). 1. Determine which brackets you should use based on the size of your cleat face (60mm, 80mm, 3", 2.5"); 2. Potentially make SVG adjustments* if your ply is not 15mm (14.8mm real world thickness). Mortices are sized at 15mm wide and 14.8mm tall. Experiment with offsets to see what works with the thickness of ply material you have. I used a 0.1mm offset for internal mortices to ensure tight fit; 3. Make up blocks for router trays (see dimensions photo); 4. Cut brackets; 5. Cut shelf; 6. Helix cut back for magnets; 7. Cut back; 8. Magnet/router bit helix cut blocks using workstation (top elevation files are a mix of 1/2", 1/4", 8mm and 10mm shank); 9 Sand all parts; 10. Glue fit magnets; 11. Push fit assemble brackets/back/shelf. * I cover the basics of SVG adjustment in the Youtube video. Note bracket dimensions assume your wall cleats are made with 3/4" (18mm) ply
