Cutter and Shaper Collet Set Board

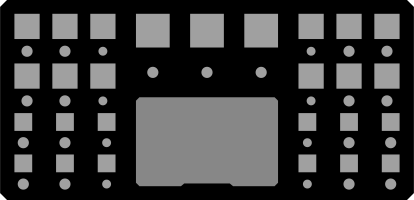

Board which can hold 27 cutters as well as the Shaper Systainer for the collets. 8 Holes are for 8mm Shaft Cutters with Small Boxes 4 Holes are for 1/4" Shaft Cutters with Small Boxes 8 Holes are for 8mm Shaft Cutters with Medium Boxes 4 Holes are for 1/4" Shaft Cutters with Medium Boxes 3 Holes are for 8mm Shaft Cutters with Big Boxes
36
Storage & Organization
Files Included (1)
Cutter_ShaperColletSet_Board.svg
14 kB
Materials
Any 18mm Wood. (I used Oak for my Board)
Tools
16mm cutter for collet Systainer pocket.
6mm cutter for bigger holes and pockets
3mm cutter for the smaller holes and pockets
engraving cutter for the chamfers
Instructions
Easy to make. Start with the holes and pockets for the cutters, continue with the collet systainer pocket and then the outside of the board. I did not need to use any offset (besides the chamfers). But before removing the board it is recommended to make a fit check with the cutters and boxes.
