McMaster Carr 1/4-20 Bolt Slot
I designed these slots to work with McMaster-Carr 1/4"-20 threaded inserts and bolts.
10 min
Easy
5
Jigs & Fixtures
Files Included (1)
McMaster .25-20 Bolt Slot.svg
1 kB
Materials
6"x14" 1/2" ply

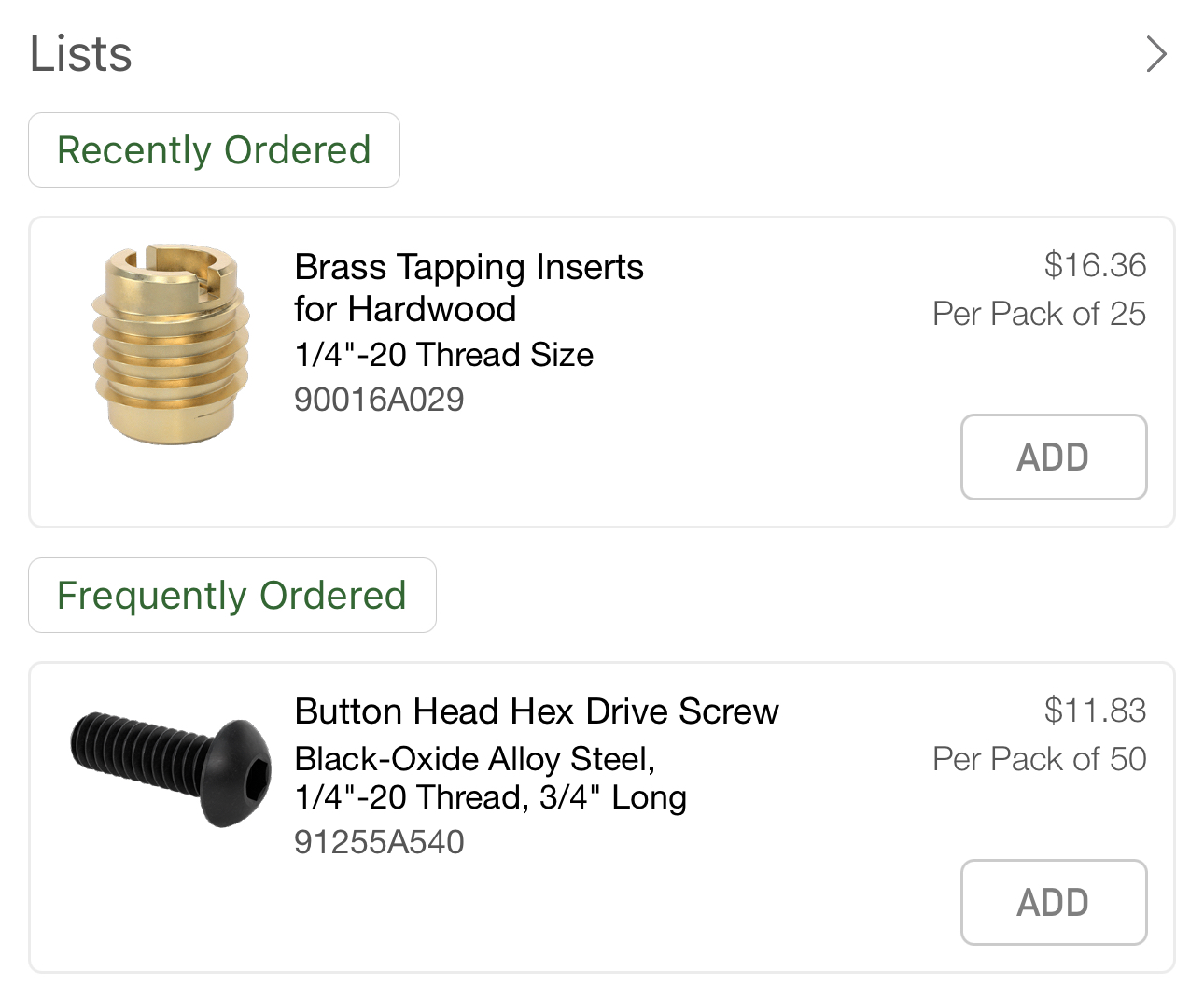

Brass Tapping Inserts for Hardwood, 1/4"-20 Thread Size
https://www.mcmaster.com/90016A029
Button Head Hex Drive Screw, Black-Oxide Alloy Steel, 1/4"-20 Thread, 3/4" Long
https://www.mcmaster.com/91255A540
Tools
Shaper Origin
Origin hex wrench
Instructions

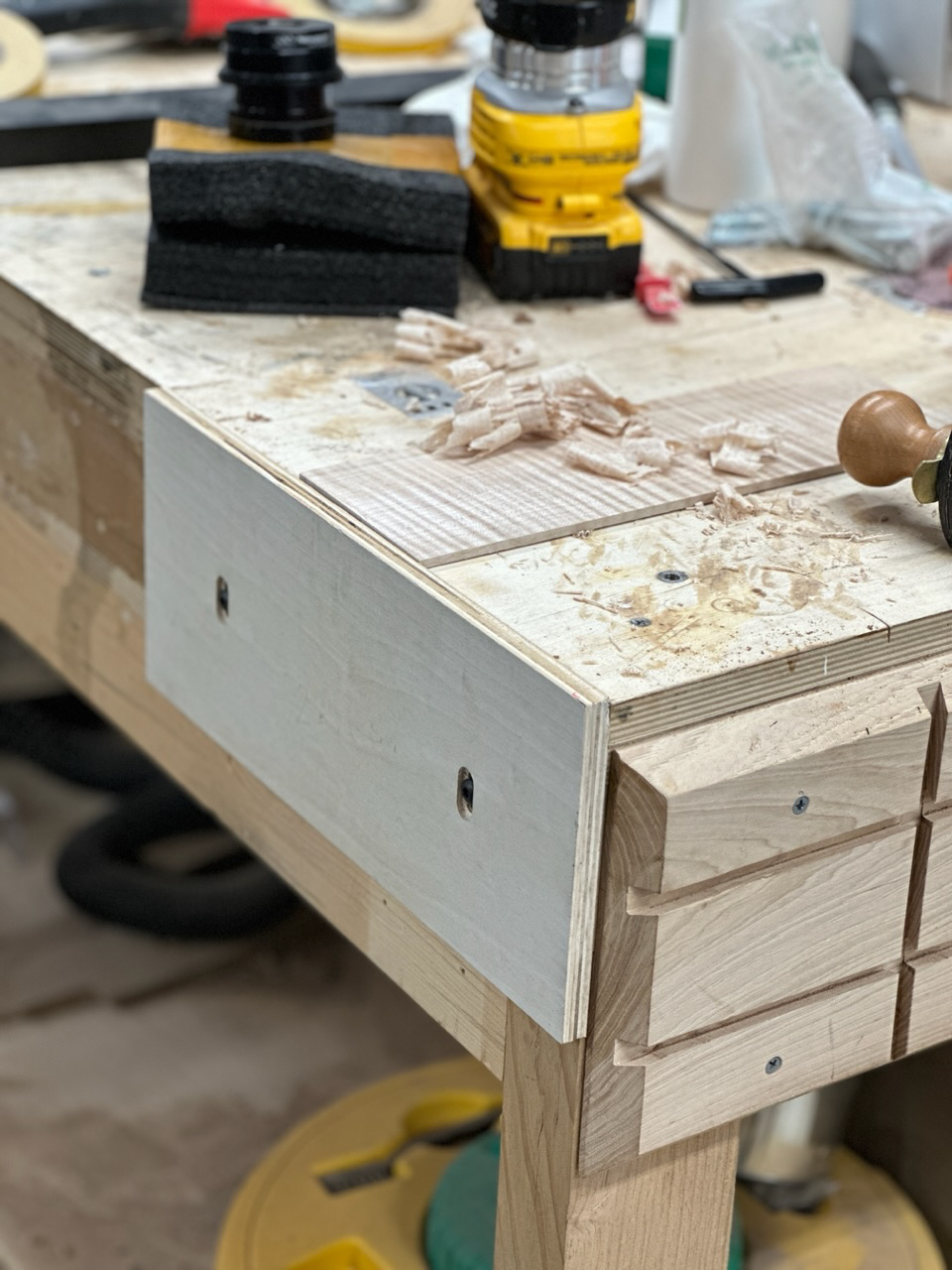

This specific project was a plane stop for the edge of my bench. I placed the slots in a vertical orientation 3" over from both sides and on center vertically on the board. I also centered the two slots at 3" from the top and bottom.
