DIY Plate for Shaper Origin

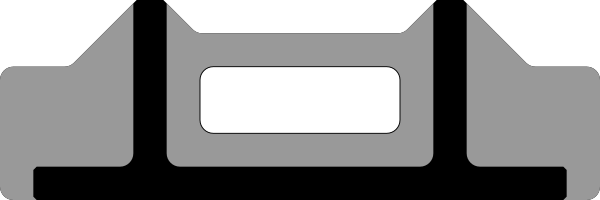

DIY Plate for Shaper Origin. The slotted holes are for the standard Festool FSZ clamps The Guide Piece works for the alignment and finding the zero position Alignment holes are for 16mm bench dogs
404
Jigs & Fixtures
Files Included (6)
SO_PLATE_DIY - PART1.STEP
1 MBSO_PLATE_DIY - PART1.svg
81 kBSO_PLATE_DIY - PART2.STEP
130 kBSO_PLATE_DIY - PART2.svg
2 kBSO_PLATE_DIY_3D_PDF.PDF
188 kBSO_PLATE_DIY.PDF
50 kB
Materials
16mm MDF sheet (450x362mm)
16mm MDF sheet (180x60mm)
Tools
6mm straight bit
Engraving bit
Instructions
1. Please check the lines before starting your cut (inside vs outside etc.), I used Fusion to make the SVG attached and added som additional lines with illustrator. 2. Cut at least 8mm deep to ensure the Festool FSZ clamps to fit 3. When changing the thickness of the plate or the size of the benchdogs ensure to change some of the other dimensions as well (Instructions in attached PDF). 5. Remember to remove the alignment block (PART 2) before starting you cut.(I've already cut into one...) Have fun!
