Shaper Origin Tool Caddy
Shaper Origin Tool Caddy. All the tools you need for cutting in a simple, compact and easy-to-build, tray.
98
Storage & Organization
Files Included (1)

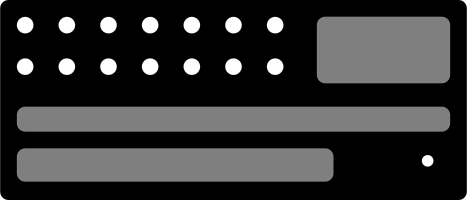

Shaper Tool Caddy.svg
3 kB
Materials
3/4” MDF or Equivalent
Tools
Shaper Origin
1/4” Spiral Up-cut Bit
1/8” Spiral Up-cut Bit (Best for bit holes)
Finish sandpaper for smoothing cut edges
Instructions
All dimensions were derived from caliper measurements on actual tools. Use adequate offsets for all progressive cuts and converge on final dimensions based on dry fitting. Important to check all fits prior to removing stock from Workstation. - Front Tray (temporary holding tray while cutting). Depth = 0.15” - Wrench Tray (friction-fit cut). Depth = 0.625” - Rectangular Collate Tray. Depth = 0.50” - Hex Wrench Hole. Depth = 0.65” - Bit Holes. Depth = 0.625” (If you have 1/8” bits, be sure to reduce some hole diameters).
