Large Kids Building Blocks
Large building blocks (lego type) timber cls 63 X 38 mm cut at 152mm lenthgs. Using a 12.7mm cutter. Cut the top with the lugs using "Top 4 Peg Shaper.Svg" To a depth of 10mm (i done it one pass) Cut he sqaure oultine 1st and the the outside of the holes next. For the underside, using the 12.7mm cutter cut the 4 holes to 11mm deep using the helix function. I made a little jig to hold the blocks in place, should not take more than 8mins per block.........................enjoy!
50
Toys
Files Included (2)

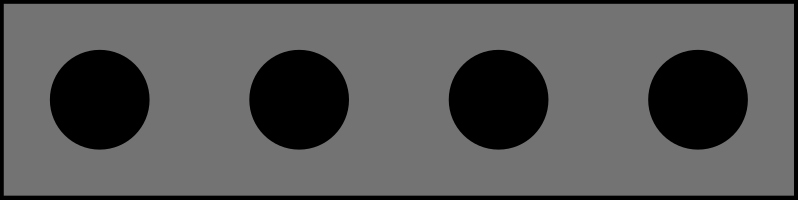

Bottom 4 Hole Shaper.svg

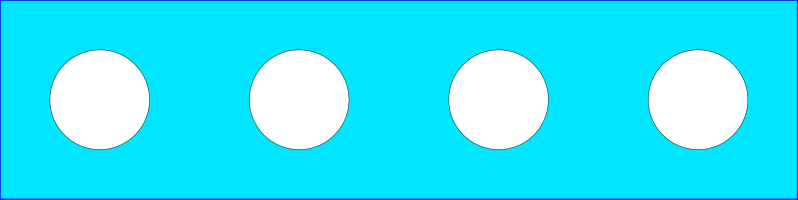

1 kBTop 4 Peg Shaper.svg
831 B
Materials
Cheap CLS 63 X 38 timber
Tools
12.7 mm cheap cutter (Erbauer ¼" Shank Double-Flute Straight Router Cutter 12.7 x 19mm )
Instructions
Using a 12.7mm cutter. Cut the top with the lugs using "Top 4 Peg Shaper.Svg" To a depth of 10mm (i done it one pass) Cut the sqaure oultine 1st and the the outside of the holes next. For the underside, using the 12.7mm cutter cut the 4 holes to 11mm deep using the helix function. I made a little jig to hold the blocks in place, should not take more than 8mins per block.........................enjoy!
