Shaper Origin Gen1 Power Plug IEC Socket
Our Shaper Origin had a broken cable directly above the clamp on the vacuum cleaner connection. Since Shaper Support does not deliver the cable separately, but wants to repair it at great expense after sending in the Shaper Origin, we decided to install an IEC socket. This 3D print should make it easier to repair future cable breaks and was really cheap!
10
Electronics
Files Included (2)
SO-Powerplug_0.24mm_PETG_EM1_2h54m.gcode
7 MBSO-Powerplug.stl
258 kB
Materials
PETG
Tools
3D Printer, e.g. Prusa MK3S+
Instructions

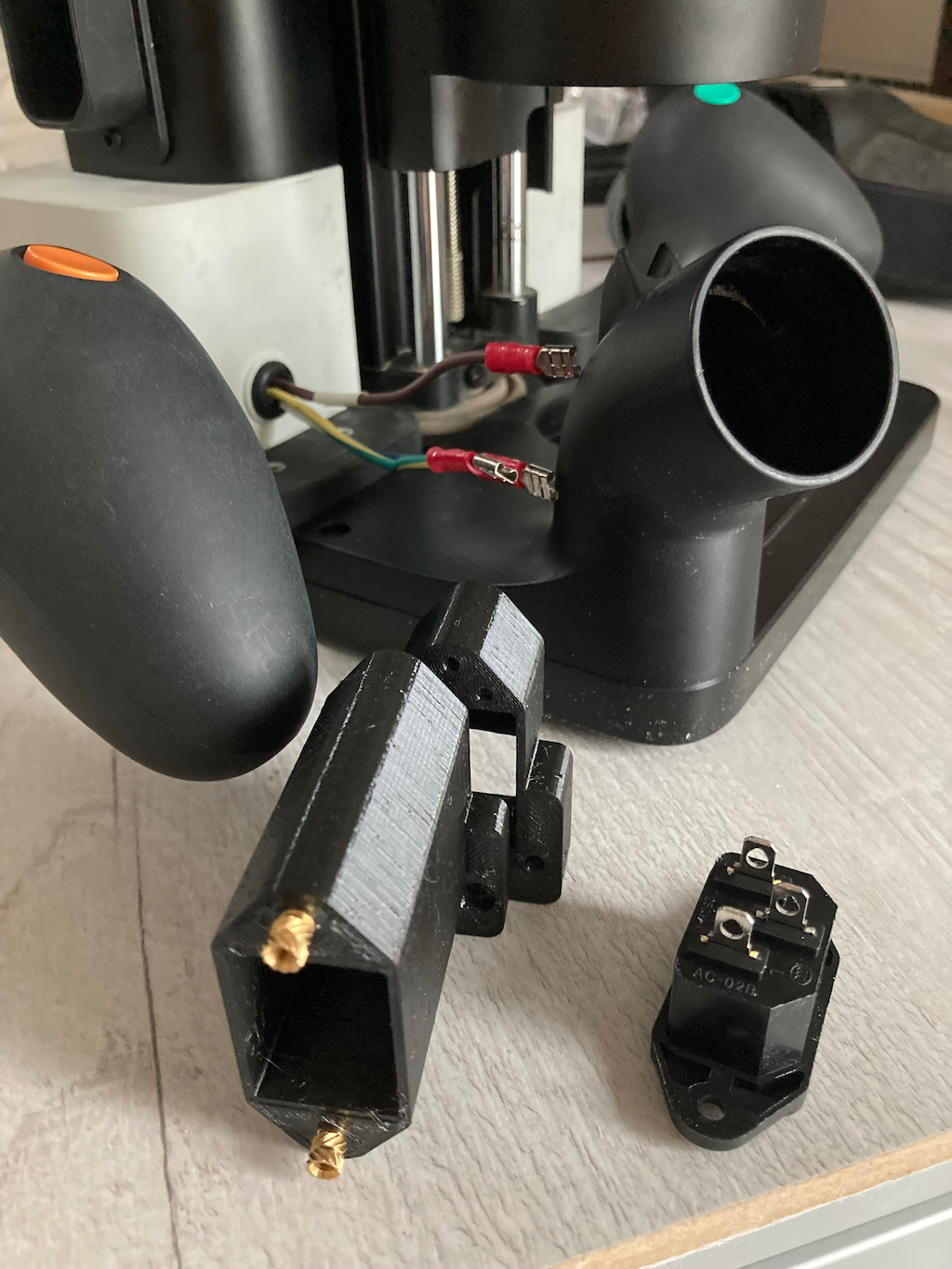

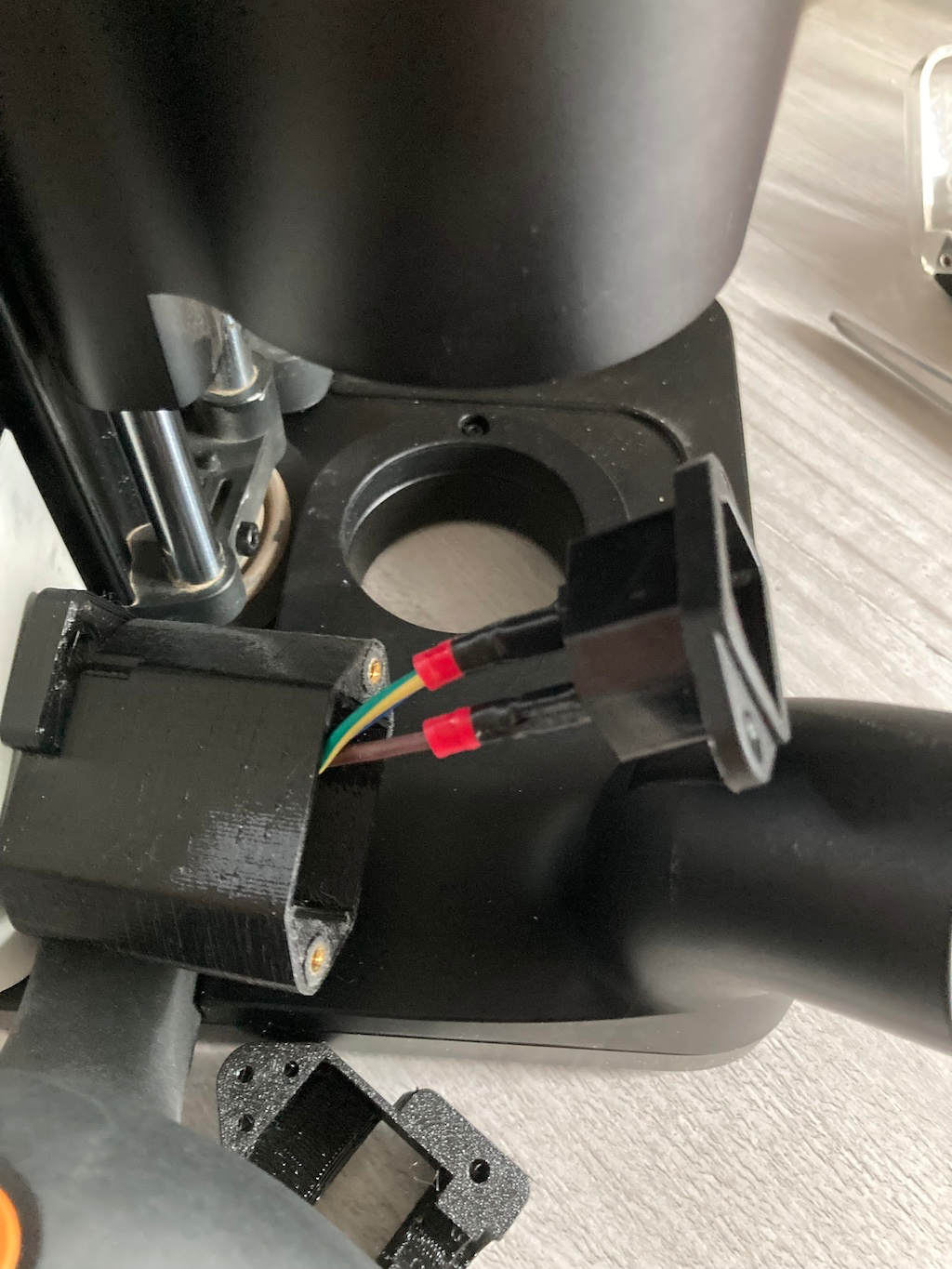

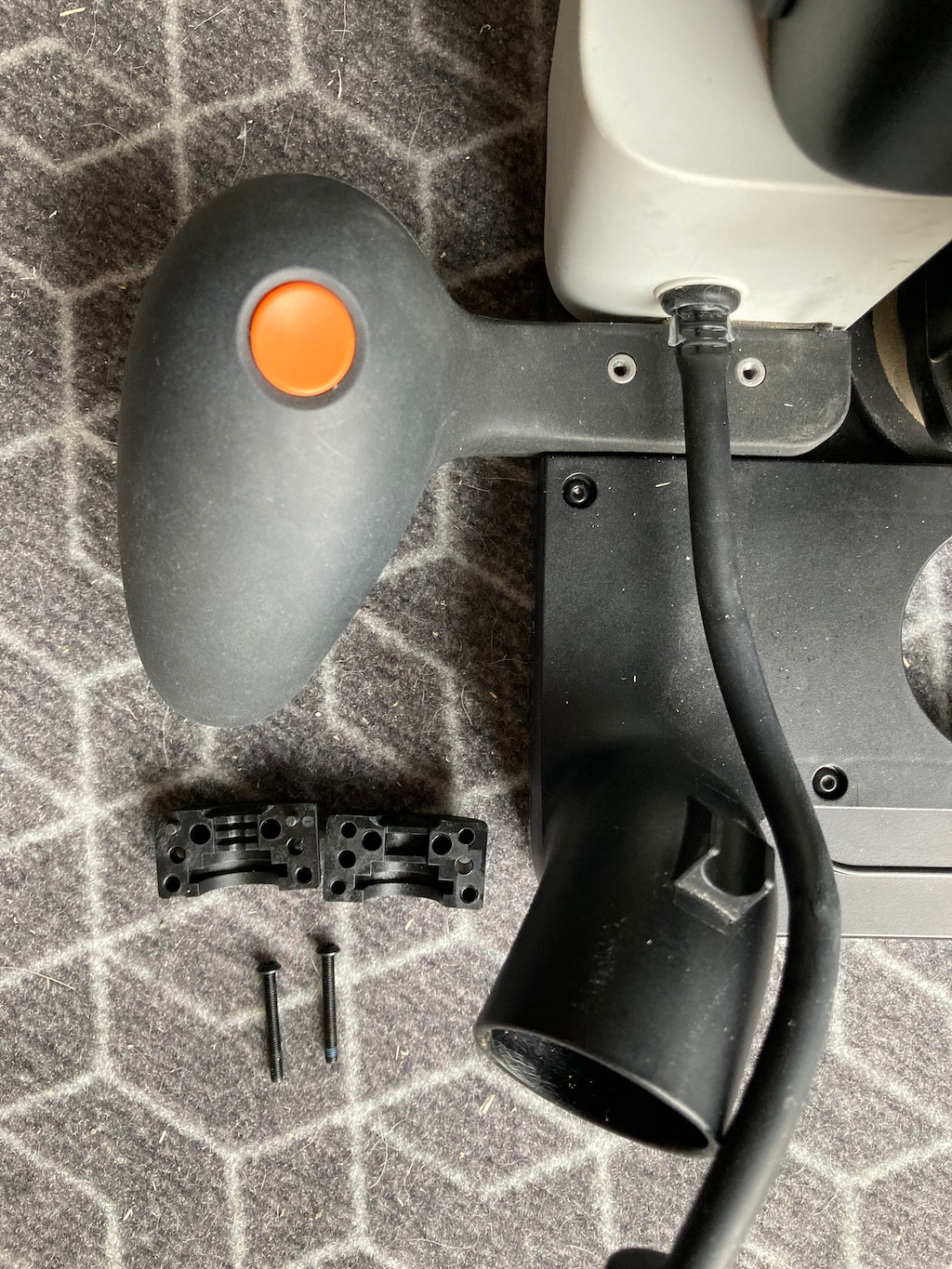

The installation is relatively easy, see the pictures. I cut the cable at approx. 9cm after the housing. You can use the original screws from cable mount. You need in addition: 2x Threaded Inserts M3 x 5.7 mm 2x M3 x 8 mm Countersunk Screws 3x Cable lugs 1x IEC320-C14 Male 3 Pins Screw Mount Inlet AC Power Plug Adapter Connector Socket AC 250V 10A 1x IEC320-C13 Right Angle Female 3Pins Power Adapter Inline Plug Connector AC 250V 10A
