Workstation MFT style top and clamps

|

Updated Mon Oct 16 2023

Since i needed to clamp small pieces to the Workstation but got tired of using double sided tape i made this top for my workstation, inspired by other designs here on the Hub and MFT tables. Made 3 different sizes and some clamps and end stops. Feel free to modify as needed. I think it would be possible to go down to 5-6mm in height for the clamps and for the stops with the right material, but that will be a later test. All drawn in Studio and there are depth encoding in the files.

1 hr

Intermediate

Shaper Workstation

Files Included (8)

12mmClamp4-9mm.svg
29 kB
12mmClamp9-15mm.svg
31 kB

12mmWorkstationTopLarge.svg

205 kB

12mmWorkstationTopMedium.svg

179 kB

12mmWorkstationTopSmall.svg

148 kB

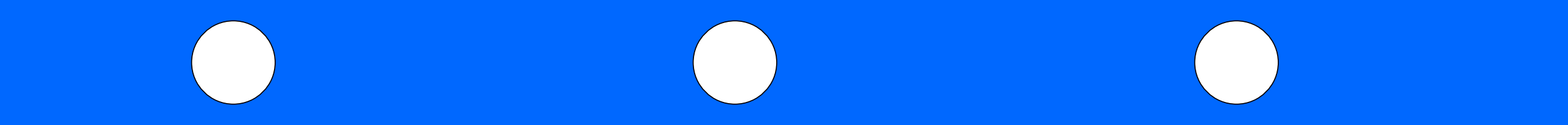

150mmEndStop8mmRods.svg

9 kB

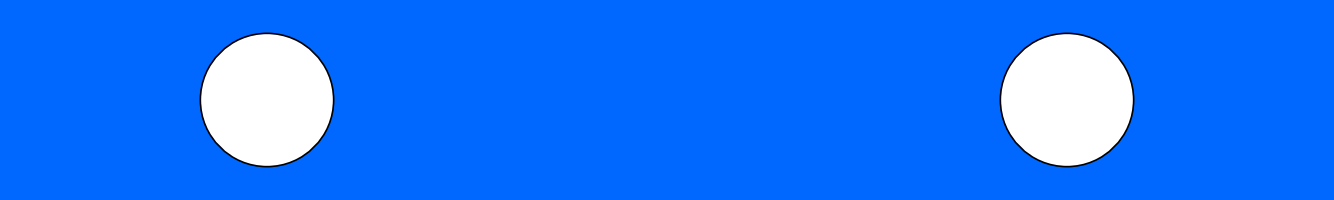

152mmEndStop12mmRods.svg

10 kB

80mmEndStop8mmRods.svg

6 kB

Materials

For the top i used 19mm MDF with high density

152mmEndStop12mmRods, 20x20mm and 152 mm long piece of wood and some 12 mm diameter rods and 28mm long.

80mm and 150mm End stops i used 12x12mm oak and some 8 mm diameter rods and 28mm long.

I made 2 different sizes of clamp using 12mm Baltic Birch plywood and 12mm diamter rods 28mm long.

Tools

SO and Table saw
