PantoRouter Template Trays

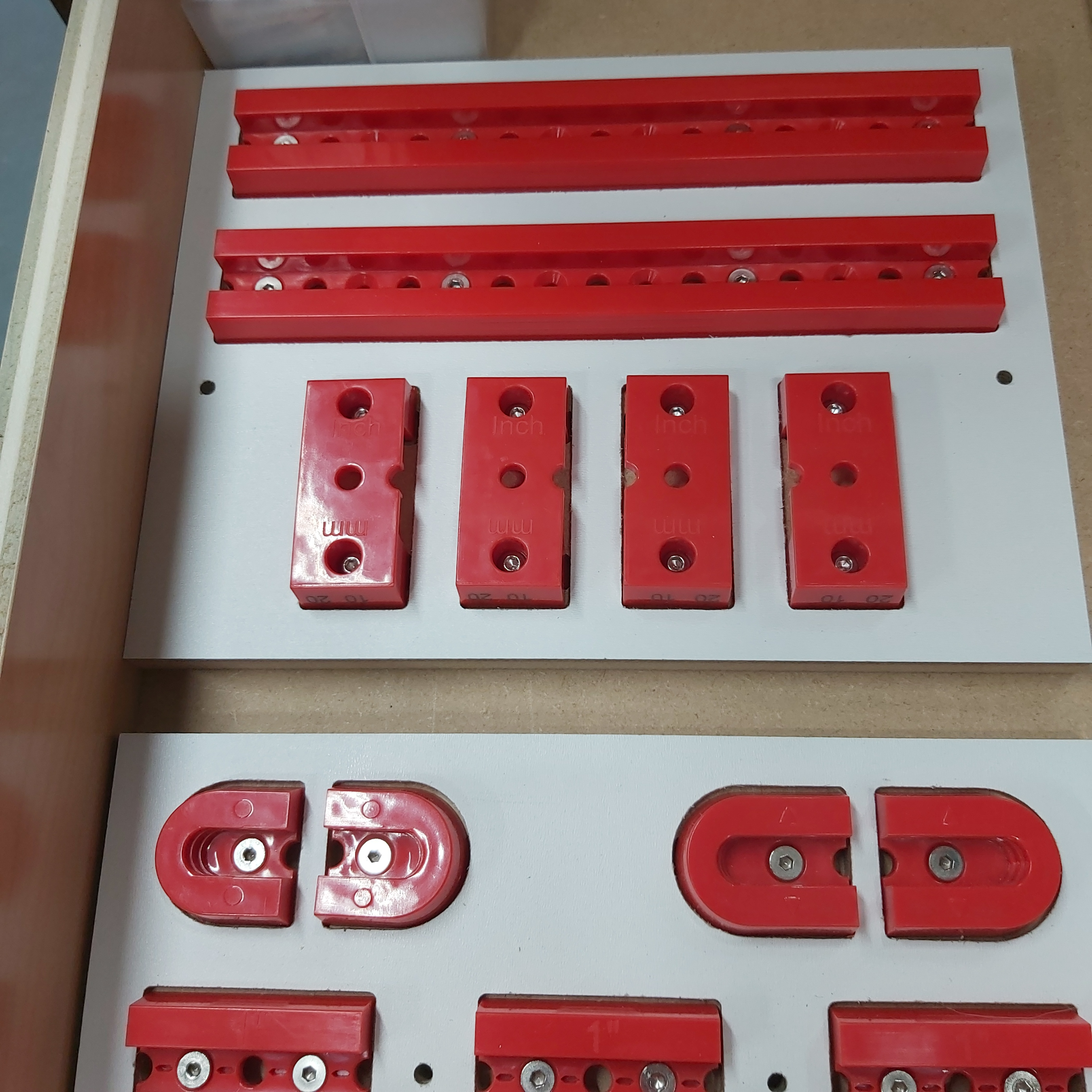

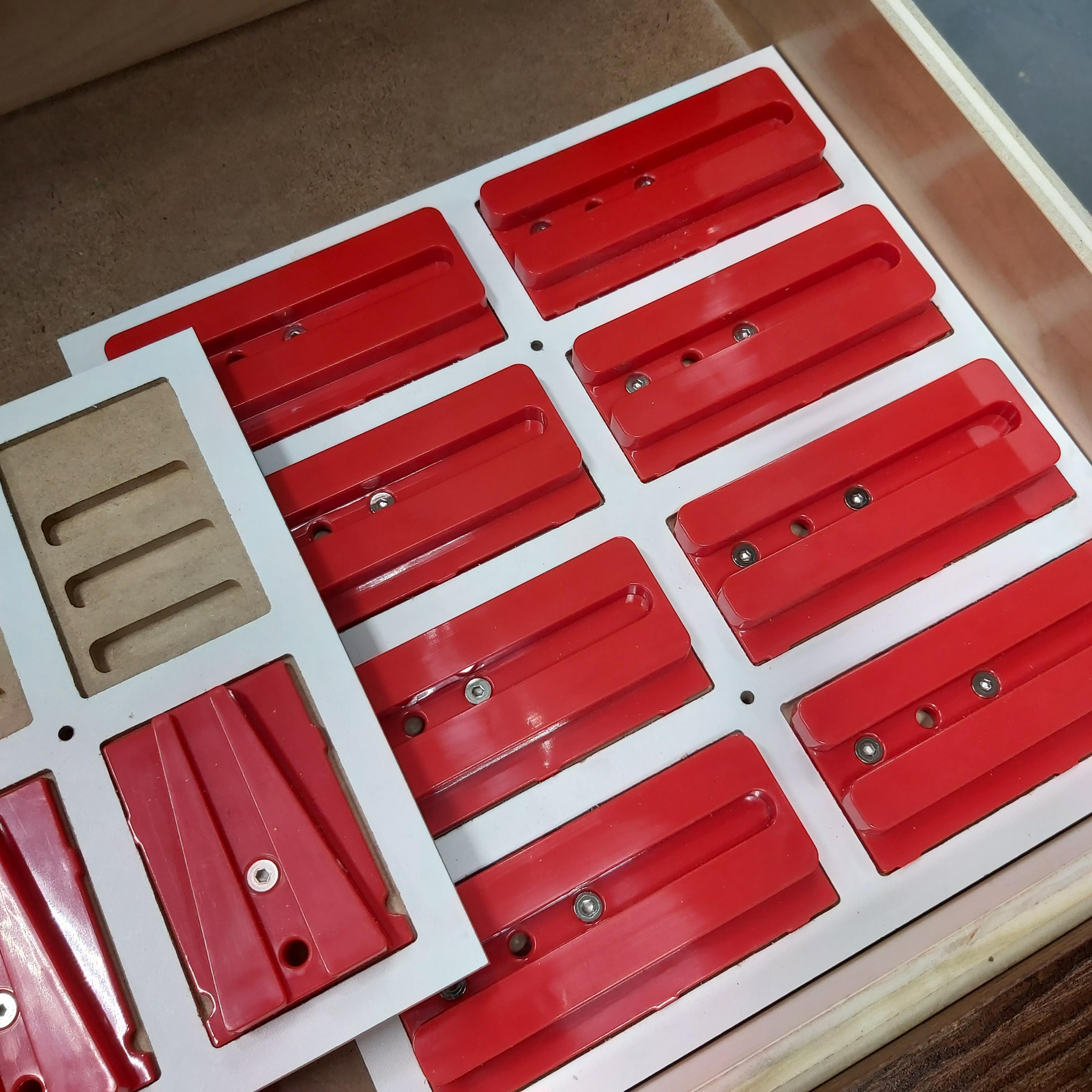

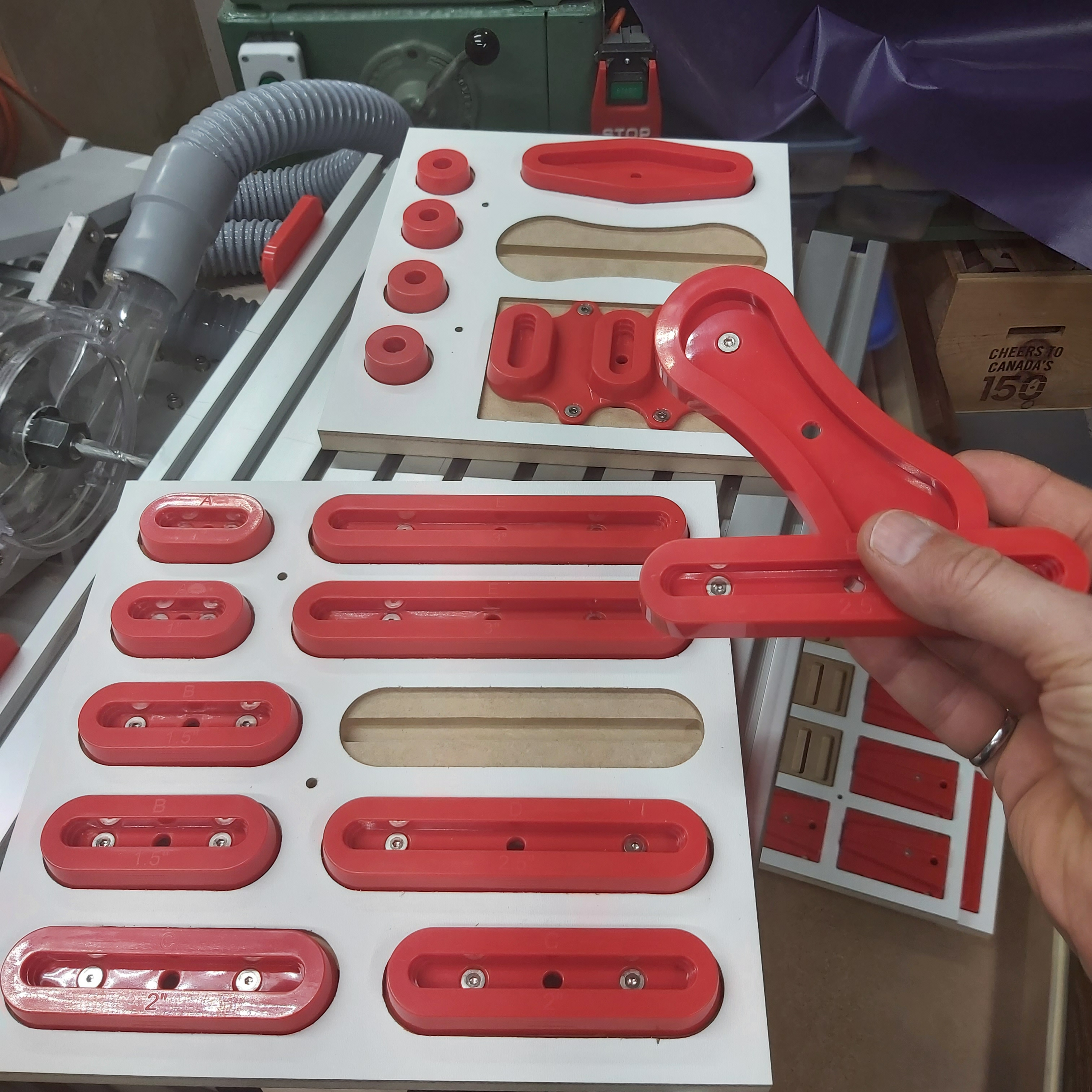

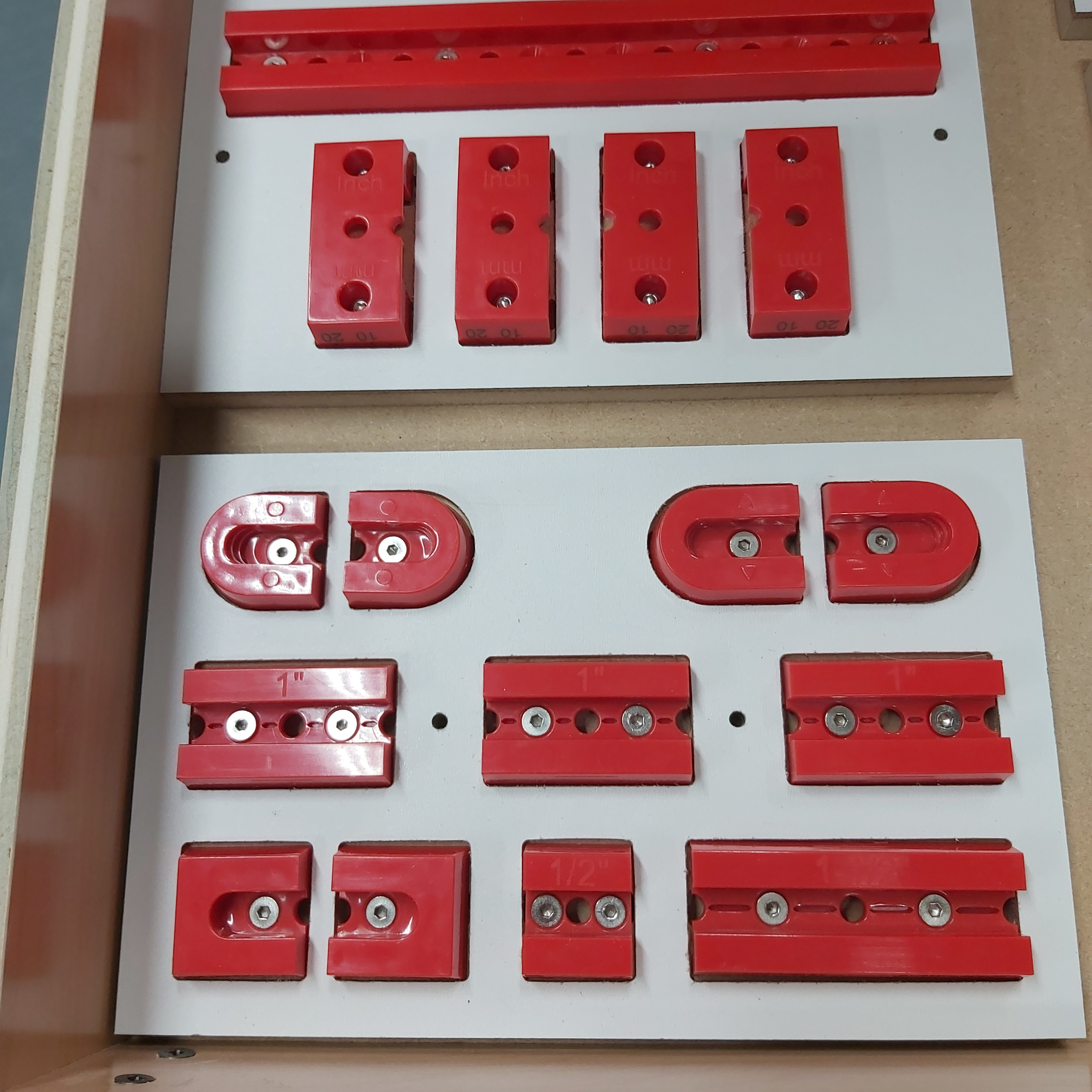

These files can be used to make template trays for the PantoRouter.
3
Jigs & Fixtures
Files Included (14)
BoxJoint_bottom.svg
8 kBBoxJoint.svg
4 kBDovetails_bottom.svg
8 kBDovetails.svg
4 kBLetter_bottom.svg
4 kBLetter.svg
5 kBLetterVertical_bottom.svg
4 kBLetterVertical.svg
3 kBSegmented_bottom.svg
5 kBSegmented.svg
5 kBSlotMortise_bottom.svg
4 kBSlotMortise.svg
3 kBSpecialty_bottom.svg
5 kBSpecialty.svg
5 kB
Materials
1/8" Masonite
3/8" MDF
Cut pieces oversize and then cut to desired size after the trays are glued together
Box Joint - 11" x 11"
Dovetails - 11" x 8"
Letter - 10" x 9.5"
Vertical Letter - 10" x 4"
Segmented - 9" x 6"
Slot Mortise - 9" x 7"
Specialty - 8.5" x 9.5"
Tools
Shaper Origin
1/8" downcut spiral bit
1/4" upcut spiral bit
2 x 5/32" drill bits to align the top and bottom layers while gluing
Instructions
I used 1/8" masonite with a 1/8" downcut bit for the top layer of each tray. Set the cut depth slightly more than 1/8" The bottom layer is made from 3/8" MDF but thicker material could also be used. I routed the openings to 1/4" deep using a 1/4" bit. The alignment holes between the top and bottom layer should be routed with a 1/8" bit to the full depth of the MDF. Once both boards have been machined, glue them together using two 5/32" drill bits to keep the boards aligned. After the glue dries, the trays can be cut to finished size at the tablesaw
