Recessed Grip for Sliding Doors

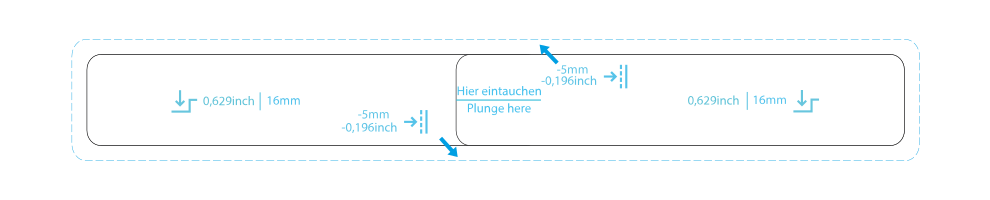

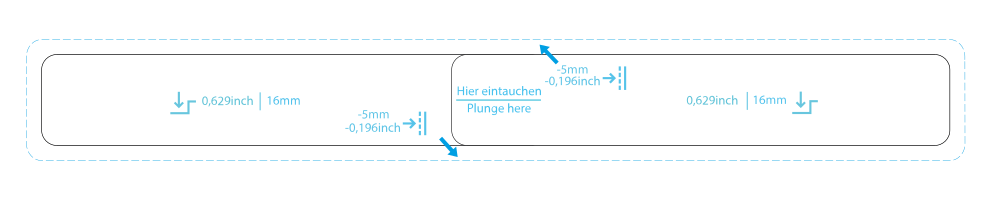

Two variants of a recessed grip, e.g. for sliding doors. Overlapping cut paths enable you to plunge with a special cutter in the center of the file. https://www.instagram.com/tv/CPbGIGcqvht/?utm_medium=copy_link
58
Furniture
Files Included (2)
270 x 30.svg
22 kB300 x 30.svg
22 kB
Materials
Material needs to be thicker than 16mm for this specific handlebar milling cutter.
Tools
Shaper Origin,
ShaperTape,
18mm milling cutter,
22mm handlebar milling cutter
https://www.shapertools.com/store/product/22-mm-x-16-mm-fingerpull-router-bit
Instructions
1. Scan and grid your workpiece 2. Place the file with the distance that you want from the edge of your door. 3. Cut the entire POCKET with an 18mm cutter and a depth of 15mm/0.629inch. Adjust depth passes, if you only have smaller cutters available. 4. Change POCKET to INSIDE path and cut it. 5. Change INSIDE path to GUIDE to make sure that you don't use this path by mistake again. 6. Insert the handlebar milling cutter. Don't forget to Z touch. 7. First set the offset to -2,5mm / 0.098inch 8. Cut both smaller paths one after another to complete the full recessed grip. IMPORTANT: Plunge in the center area to prevent damaging your grip while plunging. 9. Set the offset now too -4,8mm/0,188inch 10. Repeat step 8. 11. Set the offset now too -5mm/0,1968inch 12. Repeat step 8 for a perfect finish. You're done! You can slightly sand the grip and finish it with oil depening on your material. This recessed handle is inspired by Holzrausch.de
