AirTag Ring

By Leon-ShaperTools|BY-NC-SA 4.0 License|Updated May 9th, 2021

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
AirTag Key Holder for the new Apple Airtag You got your new Apple Airtag but don't have the money to buy the expensive accessories? Not a problem! Have fun!

20 min

Easy

84

Files included (2)
NameSize
Airtag 1.svg
783 B
Airtag2.svg
2 kB

In my example: Oak and Wallnut could be done with any hard wood and plywood
Shaper Origin, Workstation, 3mm router bit, 6mm router bit

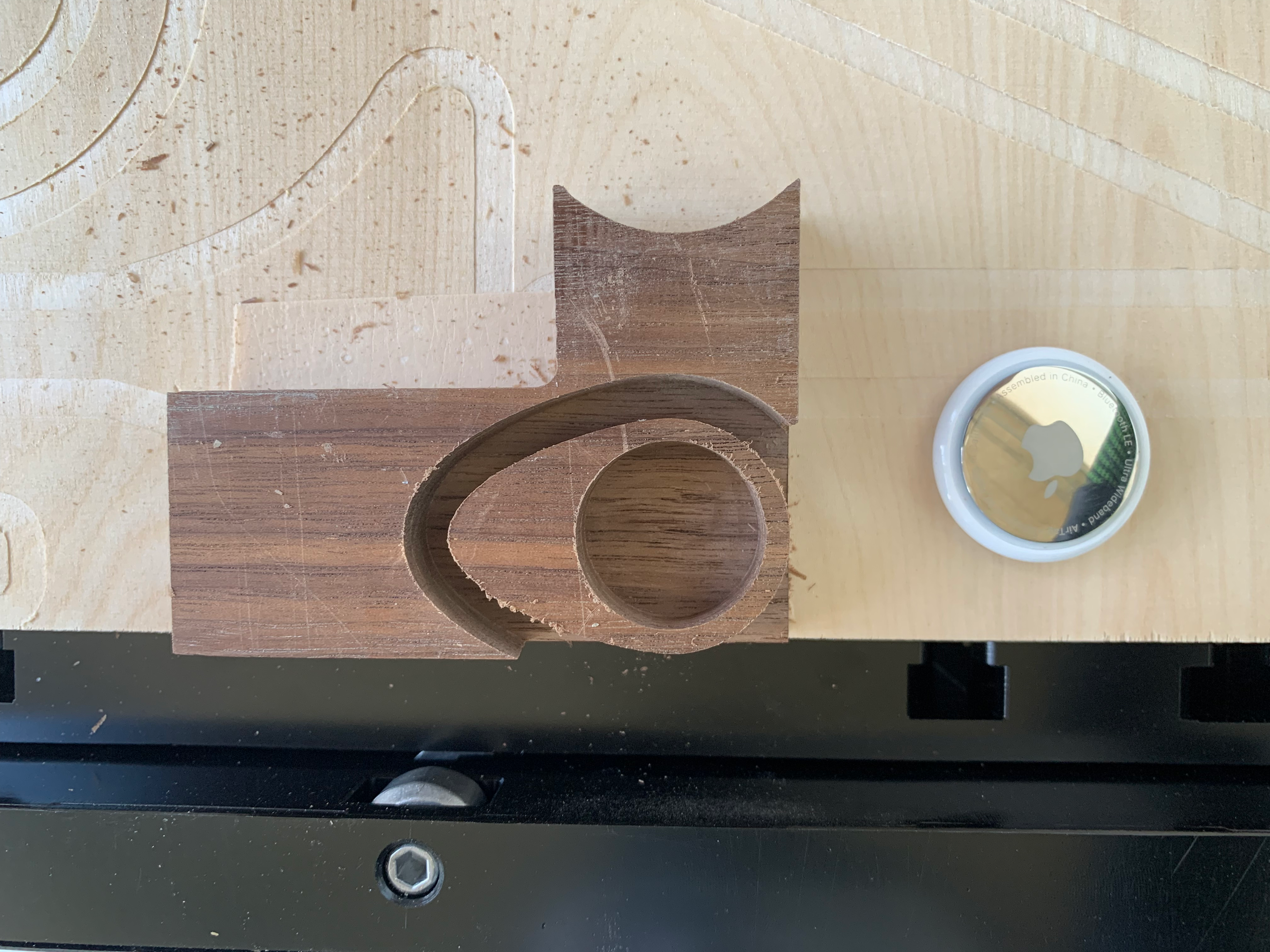

1. First, cut the top view of the AirTag Ring. You can decide if you want to cut the entire Airtag or maybe only the top side. The entire Ring is 12mm thick. 2. After you did the top part you need to clamp it sideways on the workstation to cut the line where the Airtag fits. I had made this area a little bit bigger so you need to align it to: x = -4 y = 0 with the Anker point in the left bottom corner. 3. Now you only need to sand it and do some finishing. 4. At the end carefully slide your Airtag in. Done
