Celtic sailors knot

By Vincent22
|
BY-NC-SA 4.0 License
|
Updated Mon Jan 24 2022

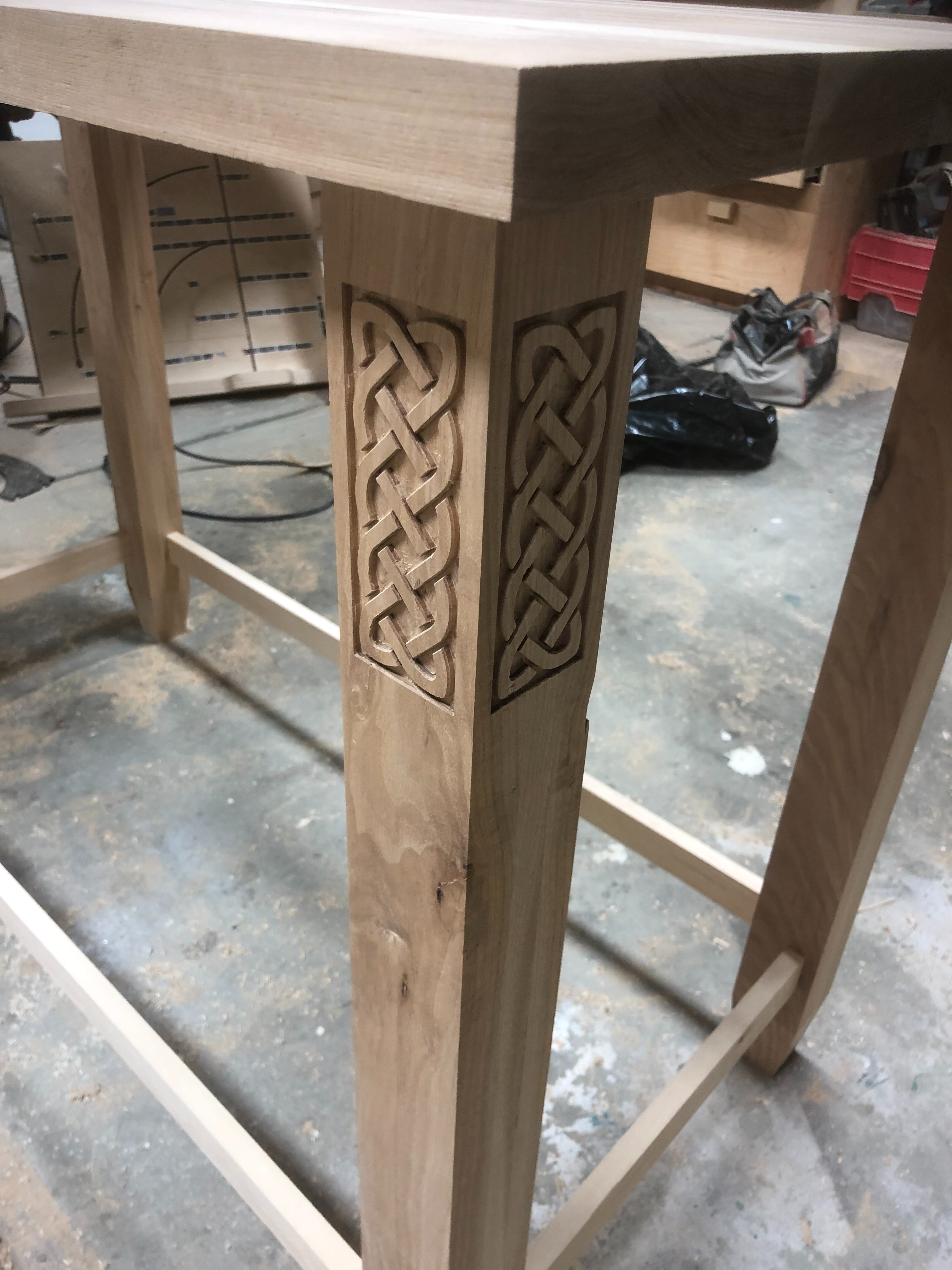

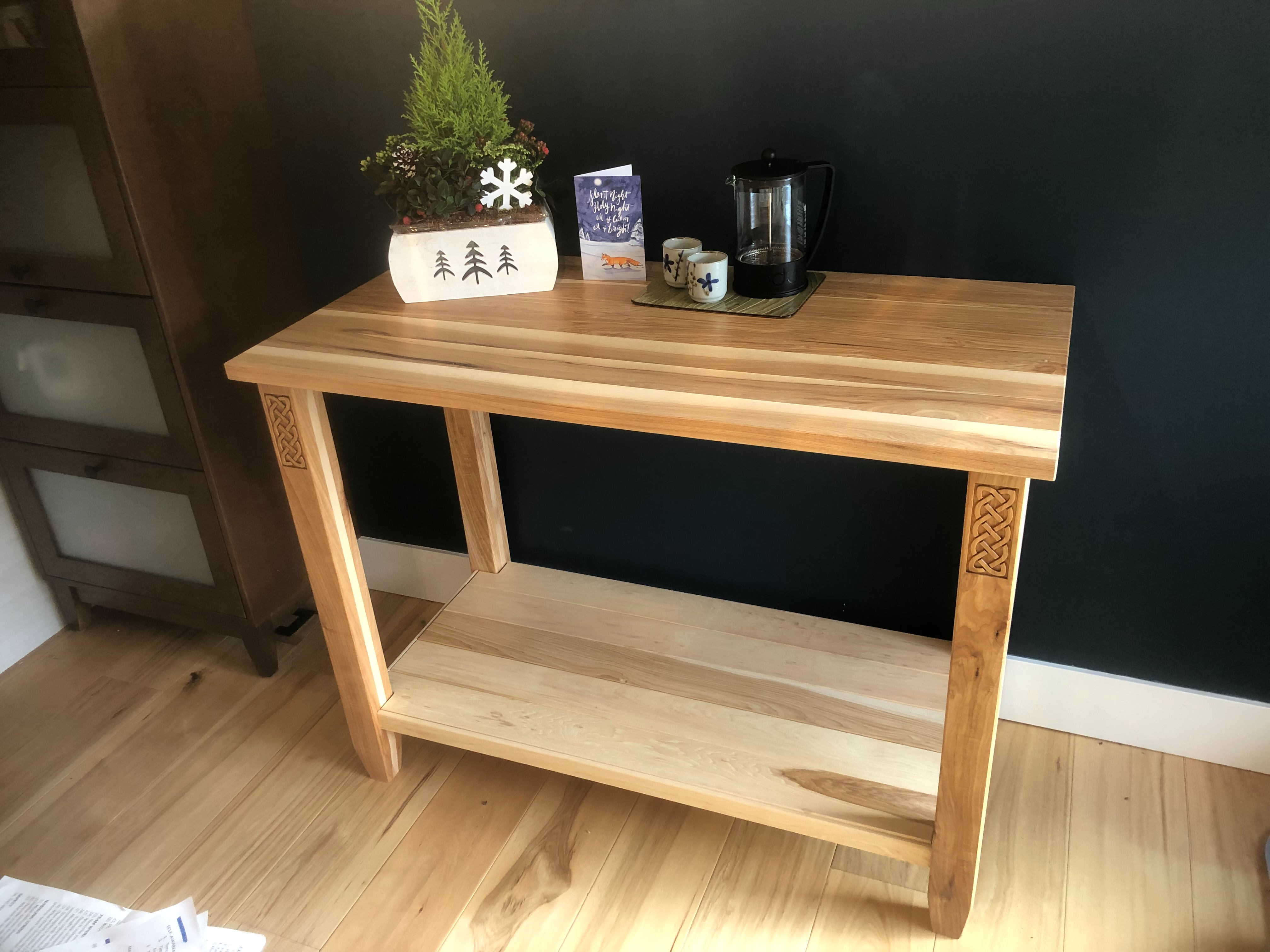

Celtic knot detail I used on corner posts of a hickory table

10 min
Easy

176

Decor

Files Included (1)

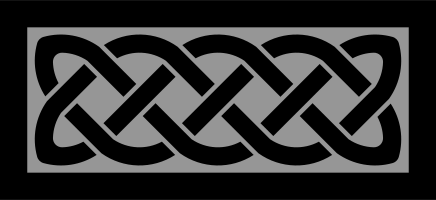

  • sailors knot.svg

    4 kB

Materials

cut into any stock

Tools

Shaper Origin

1/8" end mill bit

1/16" end mill bit

shaper engraving bit

paint

Instructions

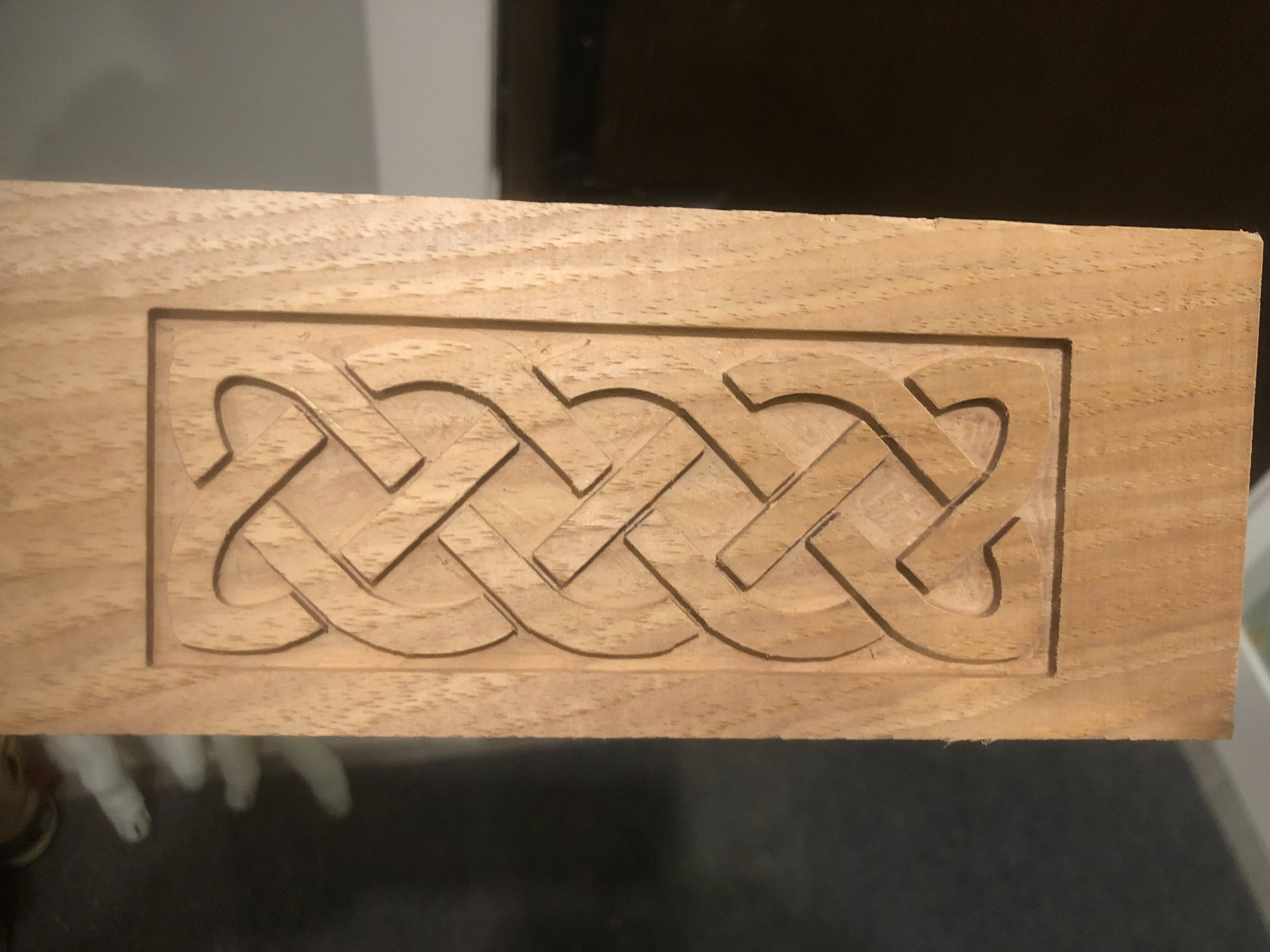

Start with the 1/8 bit with cut set to pocket to remove the majority of the material. Set a neg offset while pocketing to get closer to the finish profile With 1/16 bit set to same cut depth cut set to out side with small offset to clean up pocket. Decrease offset till the bit can cut through the small gaps(I had to use a small neg offset for bit to pass through) With engraving bit clean up edges by cutting on the line and adjust depth to get desired bevel On my test piece I sprayed it black after I was done then sanded off the surface to expose the wood grain just to see what it would look like
