Unicorn Automaton

By BorisBeaulant
|
BY-NC-SA 4.0 License
|
Updated Fri Feb 02 2024

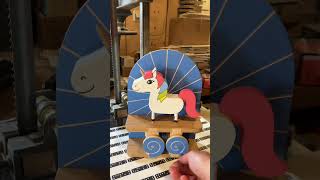

This project allows you to build an automaton featuring a jumping unicorn.

> 2 hr
Intermediate

23

Toys

Files Included (13)

  • attachment.svg

    1 kB

  • back.svg

    3 kB

  • came.svg

    2 kB

  • crank.svg

    3 kB

  • gear.svg

    9 kB

  • structure-leg-top.svg

    1 kB

  • structure-leg.svg

    2 kB

  • structure-top-back.svg

    2 kB

  • structure-top.svg

    3 kB

  • unicorn-bottom.svg

    1 kB

  • unicorn-tail.svg

    2 kB

  • unicorne.svg

    5 kB

  • washer.svg

    1 kB

Materials

8mm Plywood

2 x 180mm x 120mm x 12mm Solid wood

2 x 200mm x 66mm x 12mm Solid wood

4 x 92mm 30mm x 12mm Solid wood

600mm of 8mm dowel

30mm of 6mm dowel

Tools

Shaper Origin

Instructions

You can find the full 3D SketchUp model on L'Air du Bois platform : → https://www.lairdubois.fr/plans/2586-automate-licorne.html This project was fully exported from SketchUp to SVG by the OpenCutList extension. → https://extensions.sketchup.com/extension/00f0bf69-7a42-4295-9e1c-226080814e3e/open-cut-list
