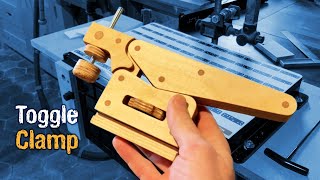

Toggle Clamp for Workstation

By BorisBeaulant

|

BY-NC-SA 4.0 License

|

Updated Mon Jan 16 2023

Here is an easy to use Toggle Clamp for Workstation. Only one hand is necessary to setup up it. Watch the video to see it in action : → https://youtu.be/4c9fde0COY4

1 hr 30 min

Intermediate

202

Jigs & Fixtures

Files Included (14)

Body-Bottom.svg
1 kB
Body-EXT.svg
2 kB

Body-INT.svg

1 kB

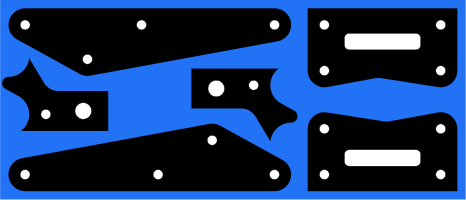

Cutting-EXT.svg

10 kB

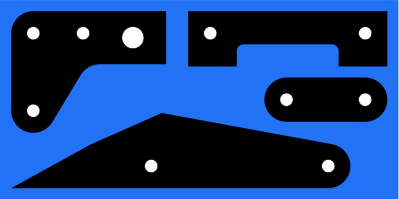

Cutting-INT.svg

5 kB

Handle-EXT.svg

2 kB

Handle-INT.svg

1 kB

Head-EXT.svg

1 kB

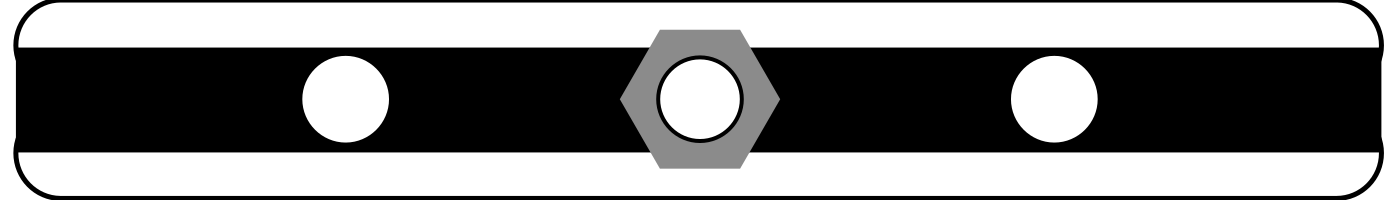

Head-Stem-Nut.svg

1 kB

Head-Stem-Screw-Head-Bottom.svg

776 B

Head-Stem-Screw-Head-Top.svg

884 B

Rod-INT.svg

1 kB

Slider-Up-And-Down.svg

2 kB

Slider-Wheel.svg

2 kB

Materials

Birch plywood (6,5mm thickness) :

- 1 x 280x120mm (EXT)

- 2 x 180x90mm (INT)

- 1 x 150x50mm (Wheels)

Solid wood (12x14mm section) :

- 1 x 90mm (Slider)

Accessories :

- 1 x 6x80 M6 Bolt

- 1 x 6x40 M6 Bolt

- 2 x M6 Nut

- 1 x D6x18mm Washer

- D6mm trunnion

- D10mm trunnion

Tools

- 1/8" bit

- 1/4" bit

Instructions

Watch the video to see the building process : → https://youtu.be/4c9fde0COY4 You can download the Fusion 360 model from L'Air du Bois platform : → https://www.lairdubois.fr/plans/2284-sauterelle-en-contreplaque-pour-serrage-des-pieces-sur-la-workstation-shaper.html
