Organic butterflies inlay

By NixonBroste | Created January 6th, 2021 | Published January 6th, 2021 | Updated January 6th, 2021

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

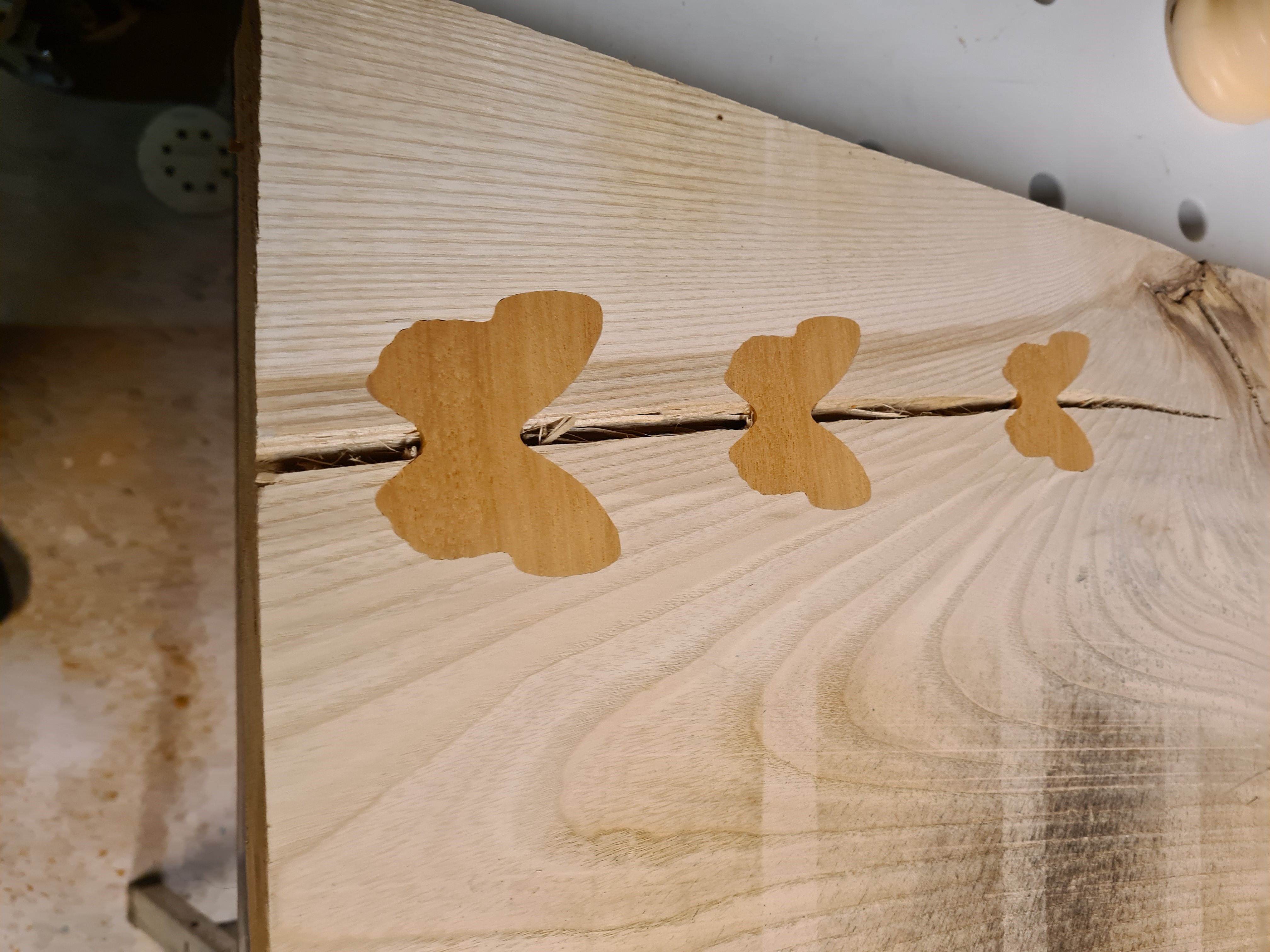

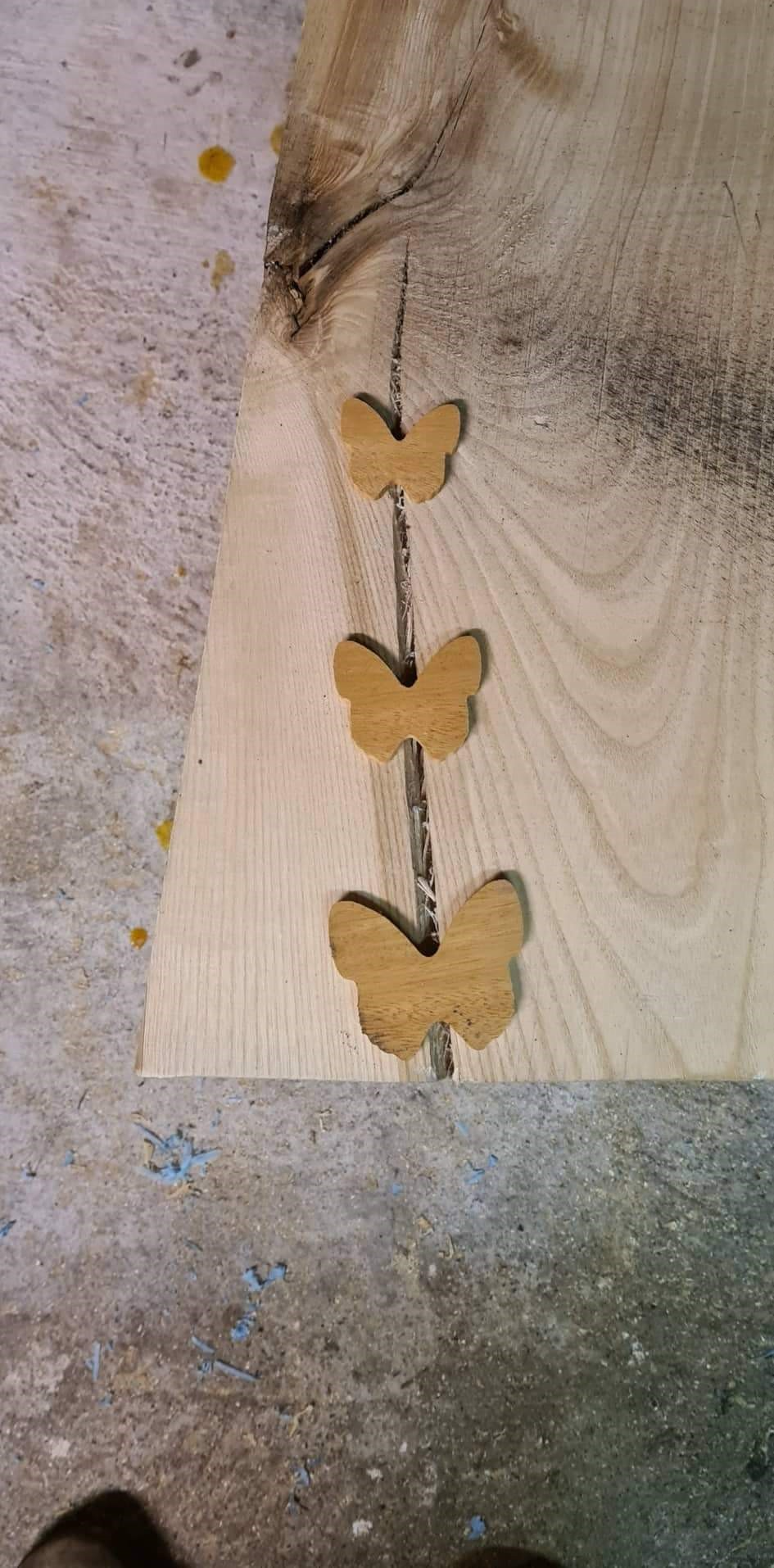

Organic butterflies inlay, same file but i 3 different sizes

50 min

Easy

5

Category

Furniture

Files included (2)
NameSize
sommerfugel NY-interior cut.svg
2 kB
sommerfugel NY-pocket.svg
2 kB

BY-NC-SA 4.0 License

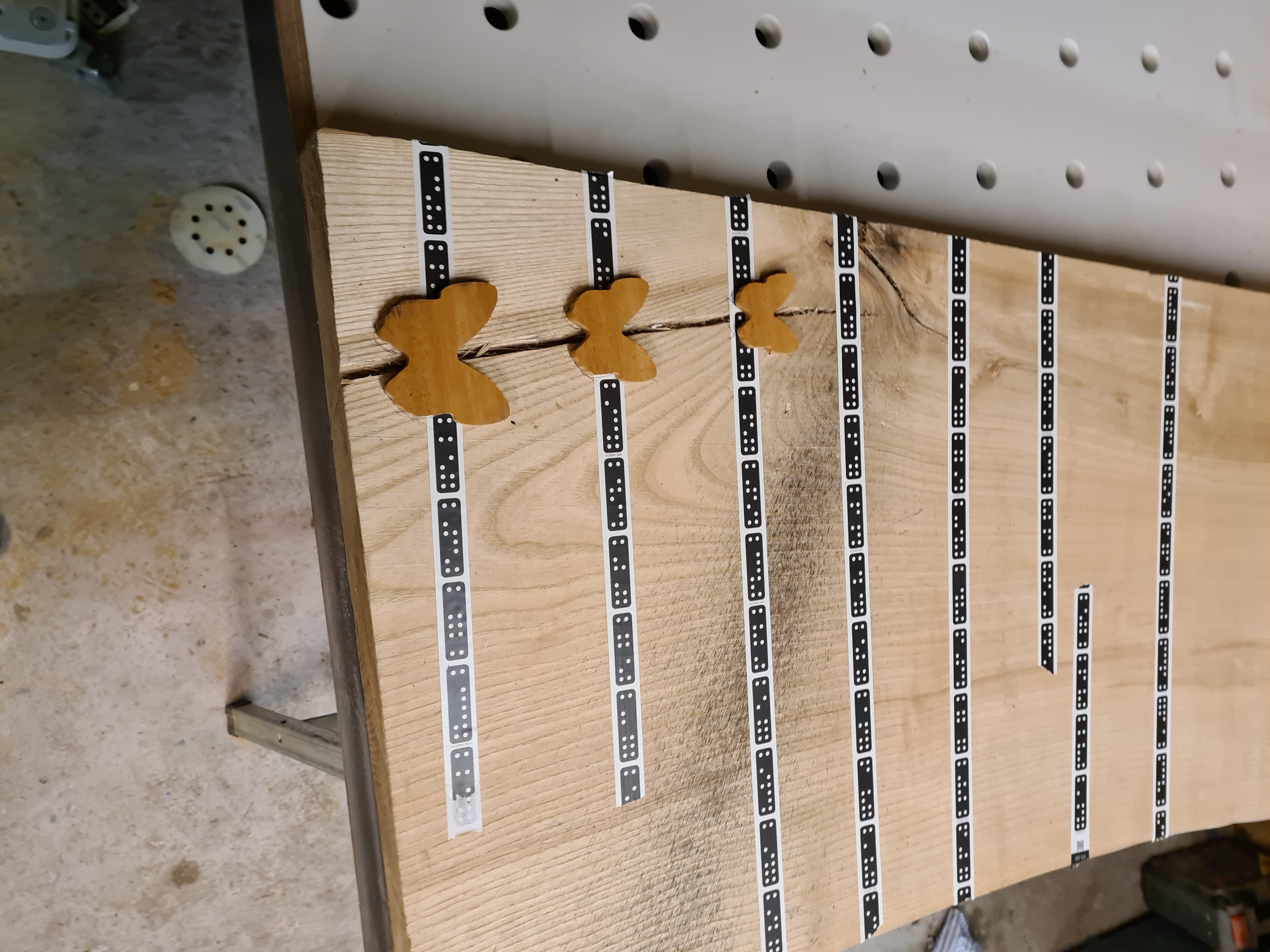

Ash plank Merbau inlay
3mm and 6mm bit

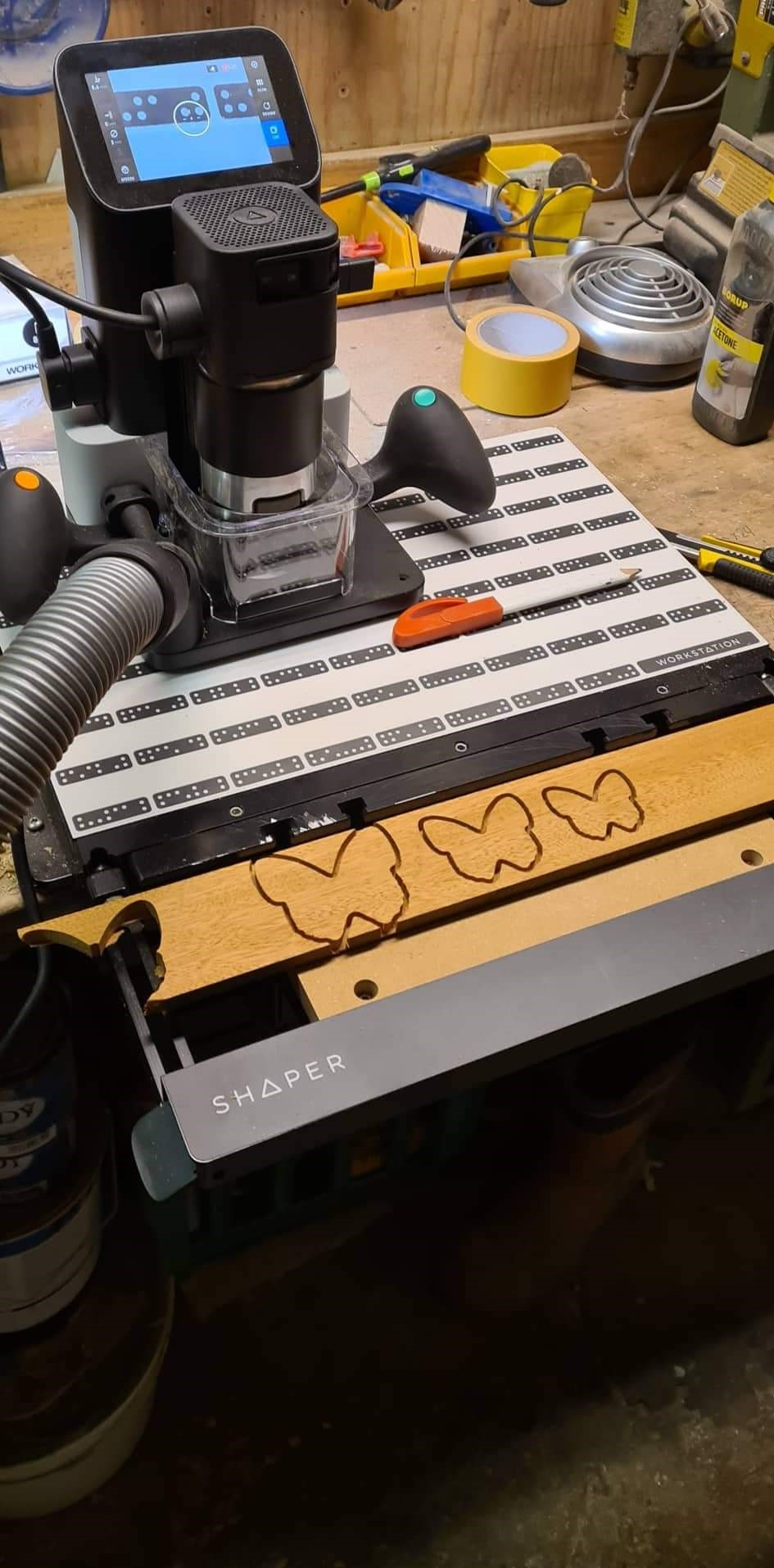

the Sommerfugel NY-interior cut file is a mistake, you'll have to pogram the Shaper to do an outside cut. I made this cut with the 3mm bit and an offset of 1 mm til i had the decired depth, then i cut 0,5 mm deeper with no offset. the pocket of the butterfly was made with the 6mm bit, and the the egde of the pocket was with the 3mm bit in the decired depth with an offset of 0,05mm for a perfect fit :)
