Grove cabling

By Kiko_Piza
|
BY-NC-SA 4.0 License
|
Updated Wed Jan 20 2021

My first project, A 12 mm grove cabling I added to my desk. With 48 mm holle to pass the plugs (could be smaller) and a cap to close it.

1 hr 30 min
Easy

190

Furniture

Files Included (2)

  • Grove Cabling.svg

    2 kB
  • Solid_Grove.svg

    2 kB

Materials

5 mm Mansory

Board desk (in my case was 18 mm)

Tools

Shaper Origin

6 mm bit ( 1/4 inch)

Instructions

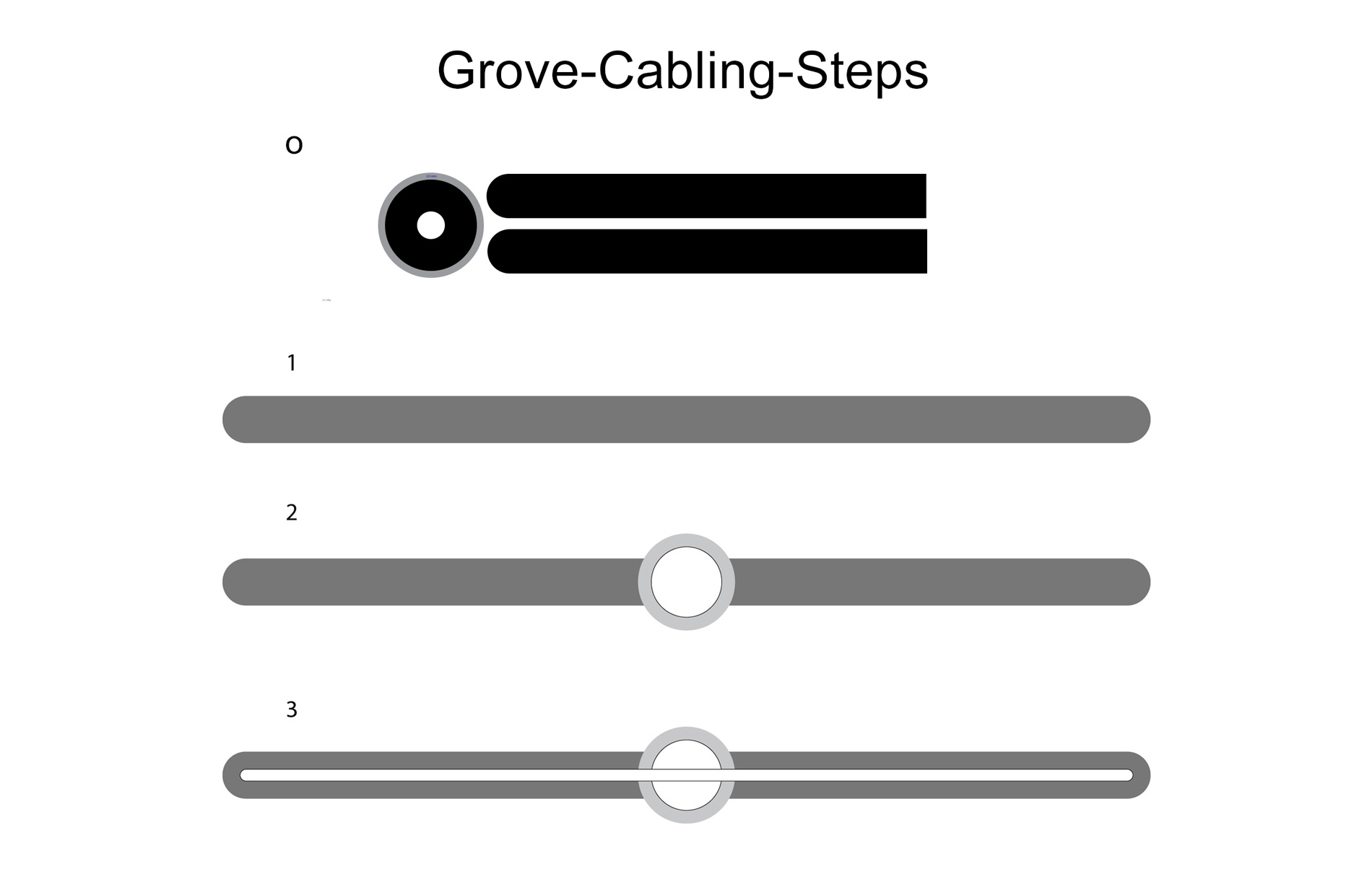

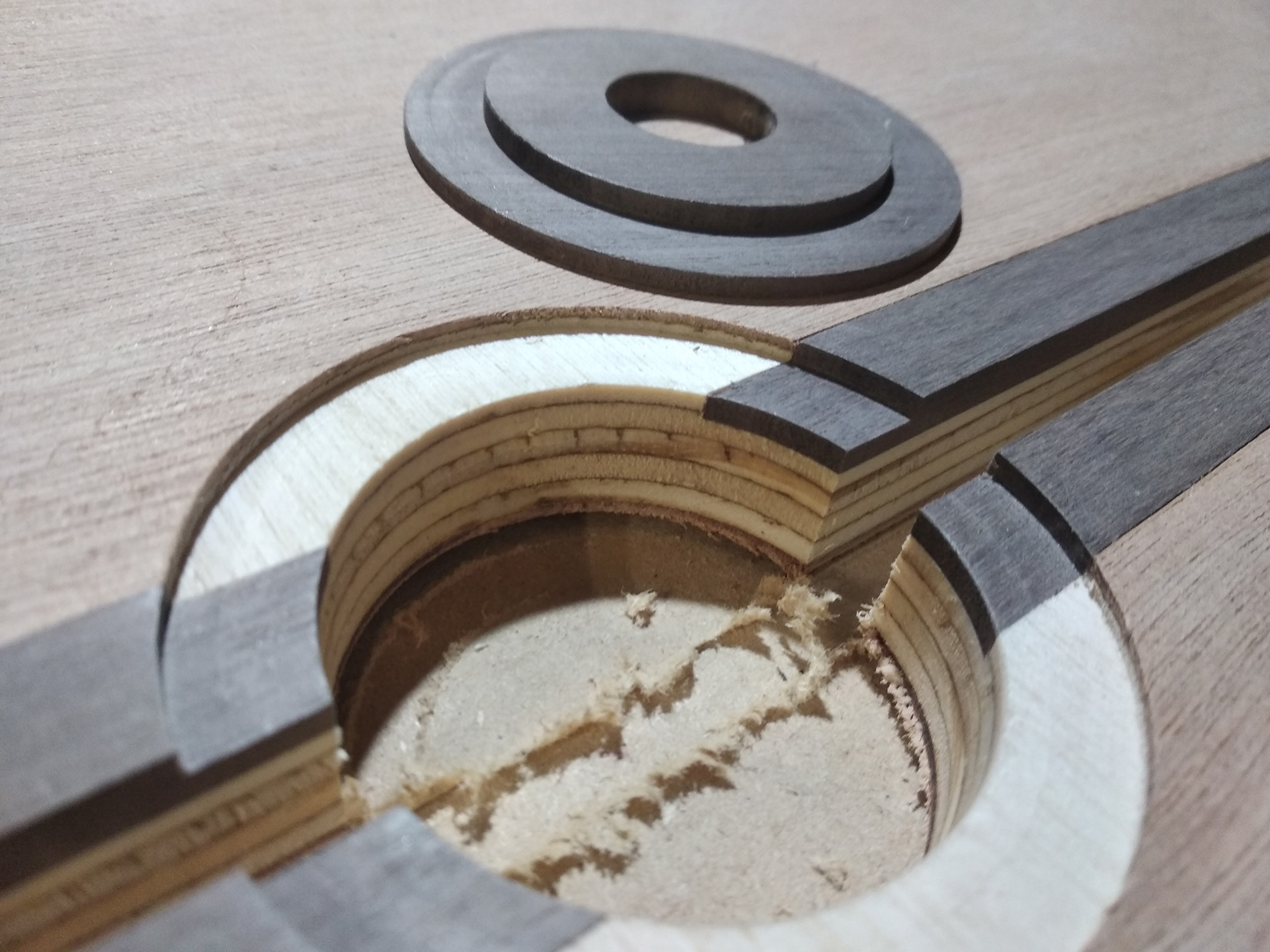

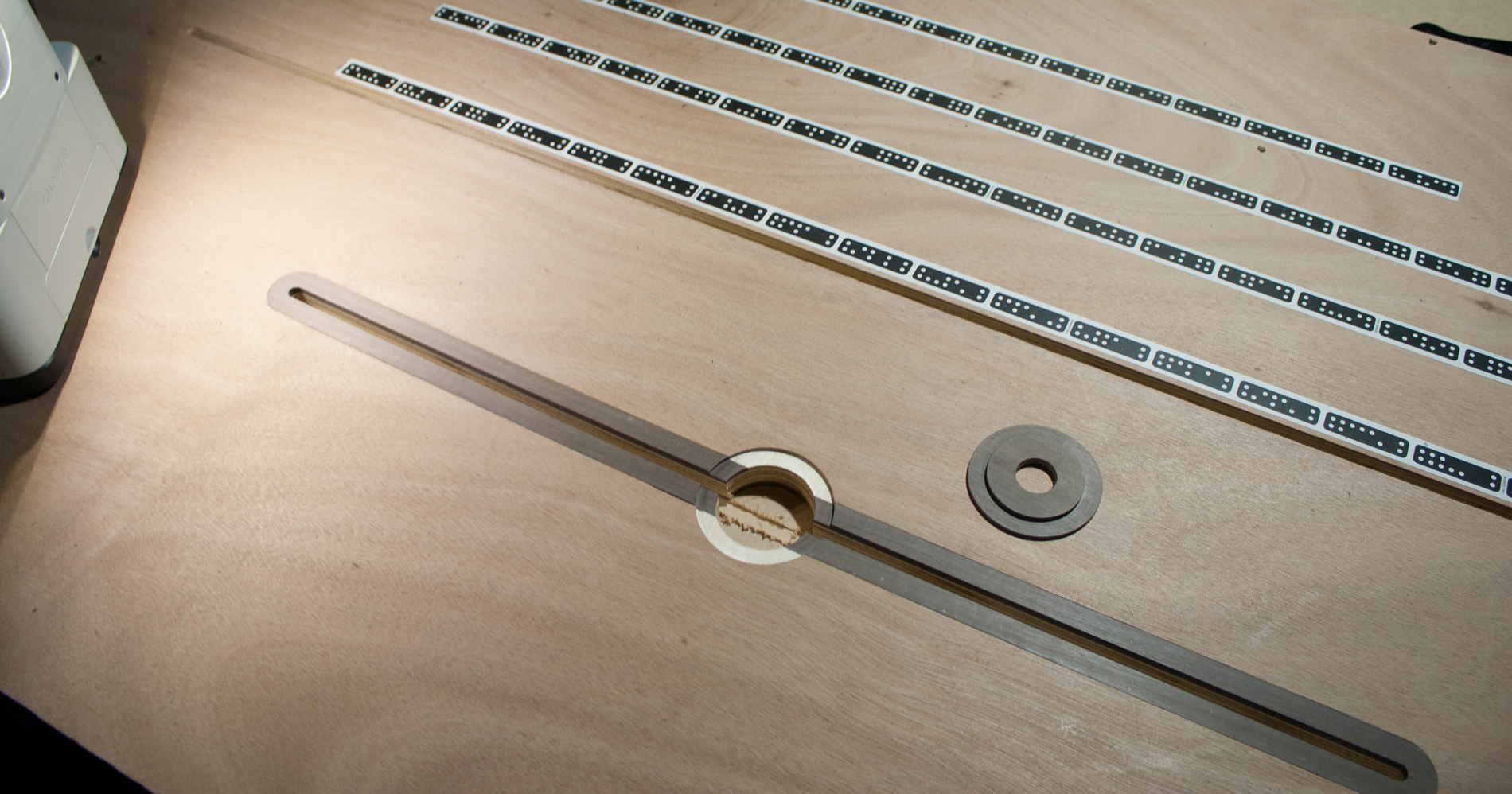

I have followed the steps shown in the"grove-steps" image attached to this post. 0- First cut the 2 long pieces and the Cap ( File "Solid_Grove"), for the cap I pocked 2,5 mm. The 12 mm grove I cut it in the last step( after to add the pieces in the pocket/board). Choose your offset desired in Origin once you cut the pocket at the board to fit them, in my case used -0.1mm 1- Pocket 5 mm (dark grey) and add the pieces on the pocket. 2.1- Cut the 48 mm circle all through the board ( where the plugs will pass through). 2.2- Pocket 2,5 mm (light grey), and add your offset desired in Origin to fit the cap. 3- Cut the 12 mm grove all through the board (where the cables will pass through). Done!
