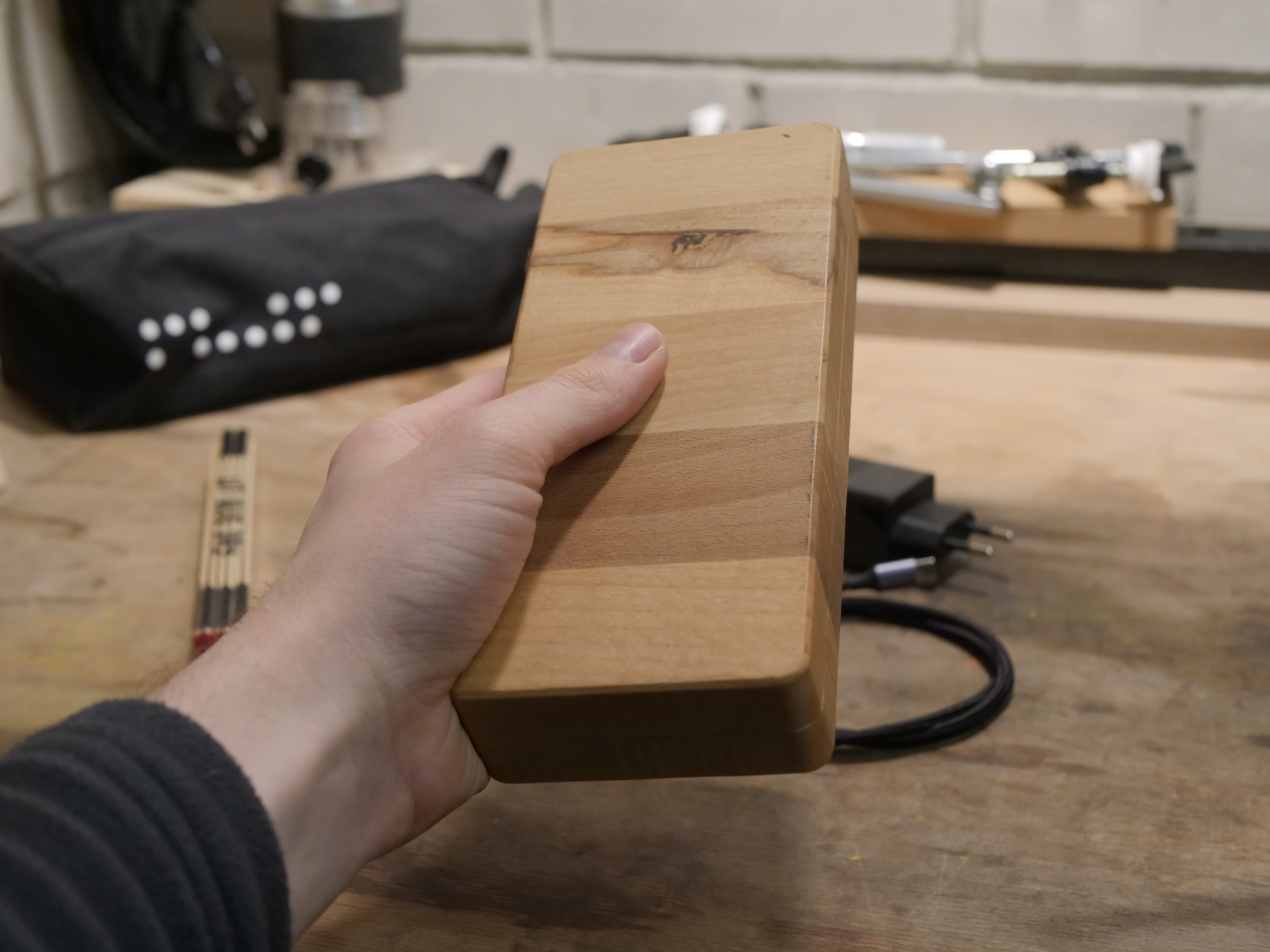

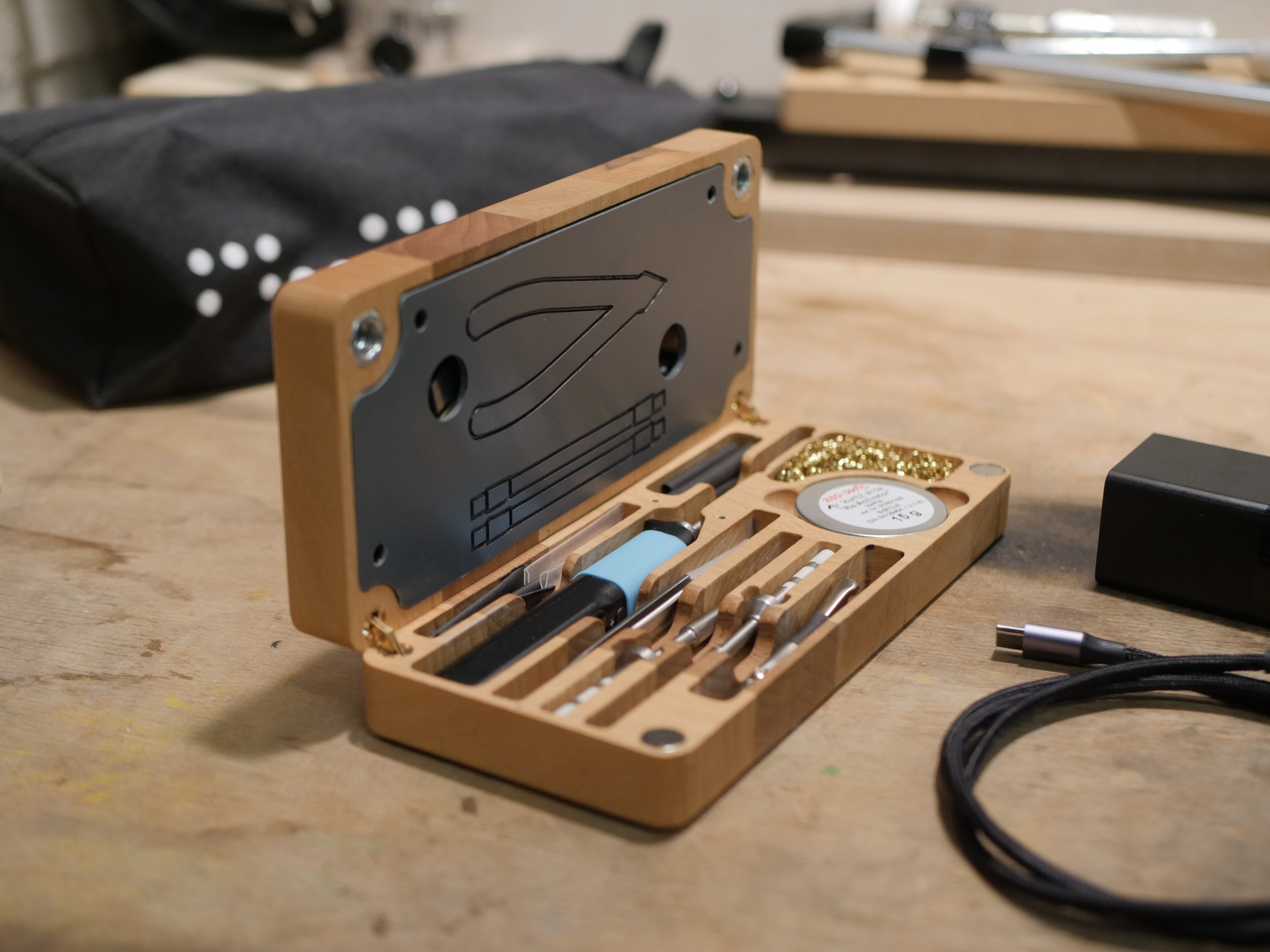

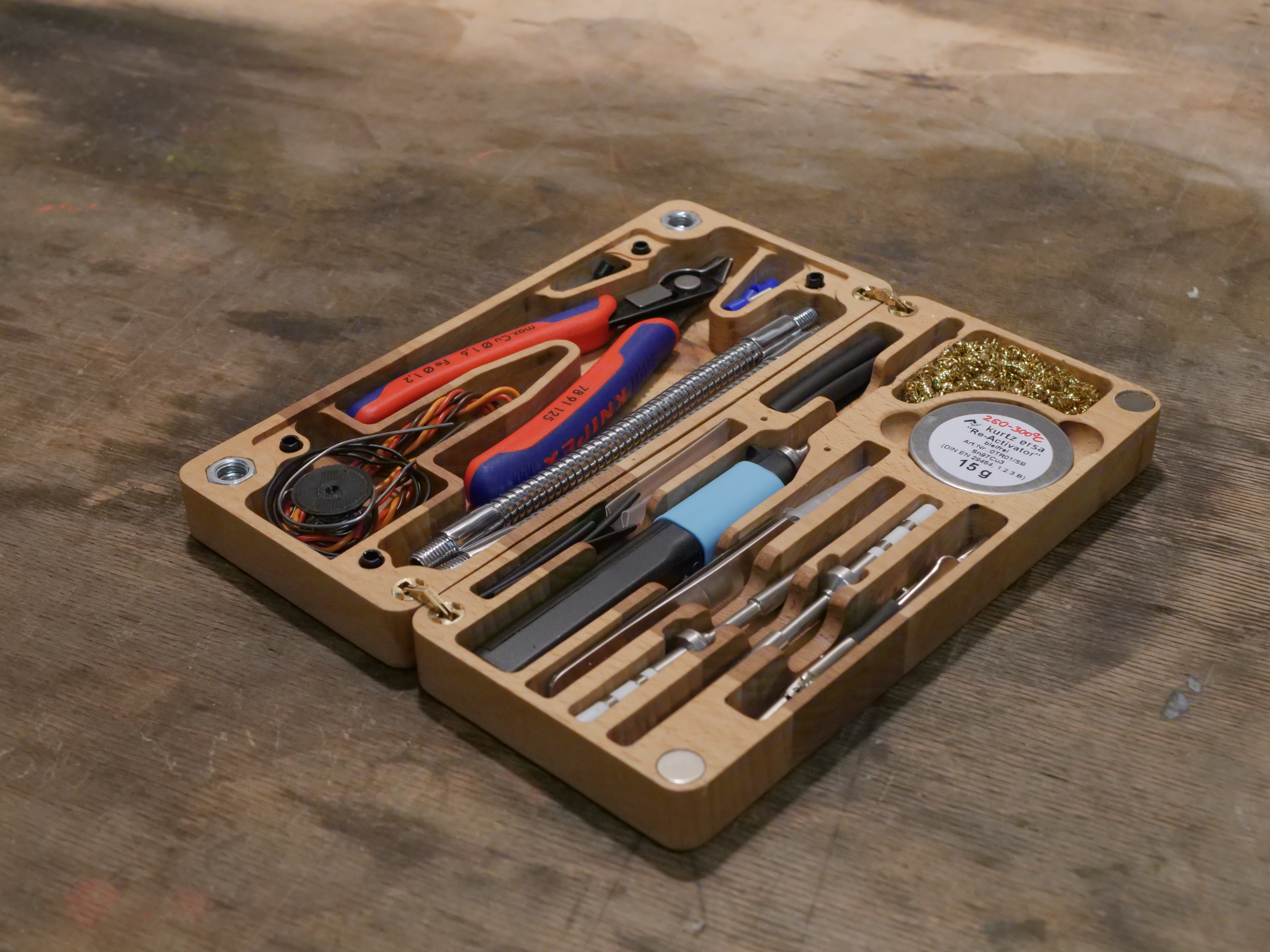

Pinecil Soldering Iron Box
A versatile and compact portable soldering kit for the Pinecil soldering iron & accessories
27
Electronics
Files Included (4)
BodgedButWorks Pinecil Box.zip

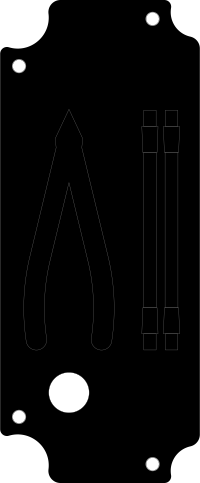

4 MBPinecil Box Bottom (Endoded Depths).svg

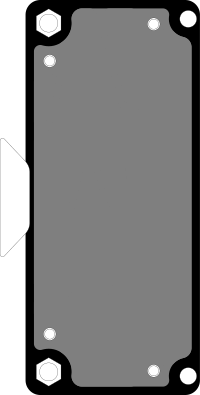

59 kBPinecil Box Lid (Endoded Depths).svg

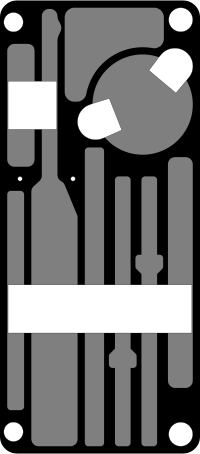

59 kBPinecil Box Top (Endoded Depths).svg
70 kB
Materials
Wood: 19mm (Alternatively 18mm) thick, e.g. walnut, birch, Forescolor
Acrylic/Plastic: 300*200*2mm sheet
(Full accessory parts list in the .zip folder)
Tools
Shaper Origin
3mm Cutter
6mm Cutter
60° Engraving Cutter
1.4mm Cutter (alternatively 2mm Cutter)
Optional (for more speed and rounded edges):
16mm Clearing Cutter
1/4" Ball-Nose Cutter
(Additional info what the cutters are needed for in the .zip folder and in the explanatory video)

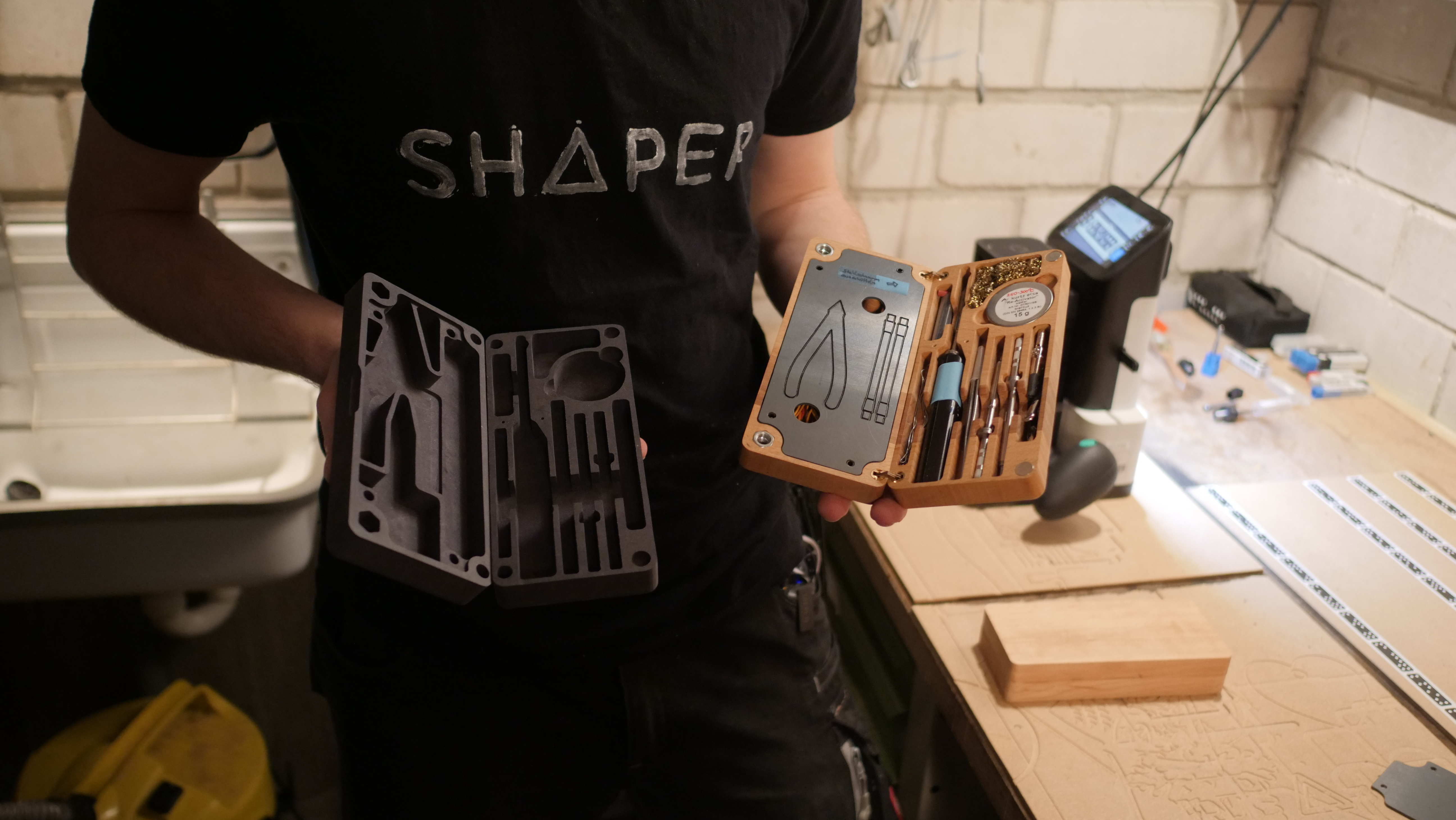

Instructions
Soldering on the go - Build your own portable Pinecil Box! Check out the video above for a detailed project walkthrough. The .zip folder contains all Origin cut files, optional 3D print data, the step-by-step plans and a bill of materials for all the accessories (the three SVGs listed above alongside the .zip folder are redundant for better visibility here on ShaperHub). Pinecil Box presentational video for the #Shaperboxchallenge in 2022: https://www.youtube.com/watch?v=KQBL4aZkzo0 Enjoy! - BodgedButWorks
