ShaperTaper

|

Updated Wed May 11 2022

The legendary ShaperTaper! Waste no more ShaperTape by separating your Dominos in a much more efficient and entertaining way. Enjoy and...have fun building your own! Forum Thread: https://community.shapertools.com/t/introducing-the-shapertaper/9076

> 2 hr

Advanced

Electronics

Files Included (4)

ShaperTaper - All You Need To Know.zip
5 MB
ShaperTaper Bottom.svg
27 kB

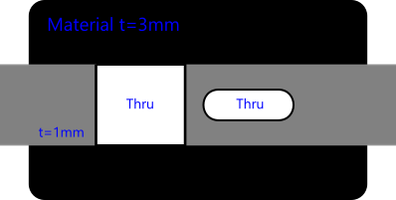

ShaperTaper Sensor Carrier Plate.svg

16 kB

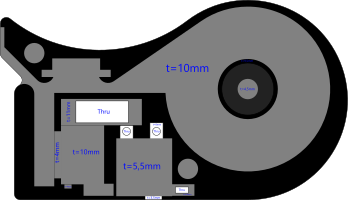

ShaperTaper Top.svg

52 kB

Materials

See Bill Of Materials in .zip folder

Mostly 12mm wood and electronics

Tools

Shaper Origin

Shaper Workstation or additional 12mm wood to build a small co-planar jig

Shaper 6mm+3mm cutters

Soldering iron

Instructions

This project is among my more complex ones, so I'll refrain from over-explaining it and let the provided .zip folder speak for itself. The main steps are: o Cutting the two wooden halves of the ShaperTaper (large bit for the large pockets, 3mm bit for the smaller areas) o Cutting/sanding OR 3D-printing the carrier plate for the QRE1117 light sensor and the brake block o Installing the electronics o Soldering everything together o Uploading the software using the Arduino IDE o Having unprecedented fun dispensing ShaperTape for future projects If you have questions or would like to make one, but are too intimidated by this page, you are invited to ask anytime in the ShaperTaper forum thread (https://community.shapertools.com/t/introducing-the-shapertaper/9076). I'm excited to see your versions of this project! - BodgedButWorks
