Tracer for Trace

Materials

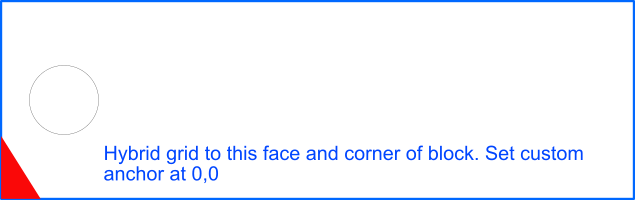

Hardwood block 4 by 6.25 by 1.25 thick, grain aligned on 6.25 edge

Scrap ¾ plywood, 6 inches by 6 inches

1/8 thick cell cast acrylic for feeler, about 2 by 7

3/16th thick cell cast acrylic for foot, about 5 by 2

M5x 25 knurled shoulder round tip thumbscrews (brass is nice). Quantity 3. Link: https://www.amazon.com/gp/product/B0BL2C6VSR/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

M5 knurled thumb nuts (brass is nice). Quantity 2. Link: https://www.amazon.com/gp/product/B0BYSQFWQG/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

M5 threaded insert for hardwood. Quantity: 1. Link: https://www.amazon.com/gp/product/B015CAPXHW/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1

M5 by 30mm dowel pins Quantity: 2. Link: https://www.amazon.com/10mm-16mm-20mm-25mm-30mm/dp/B0C3QP6BB6/ref=sr_1_1_sspa?crid=6BY3W642X72S&keywords=m5+stainless+steel+pin&qid=1706394244&sprefix=m5+steel+pins%2Caps%2C115&sr=8-1-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&psc=1

A couple #8 by ¾ round head wood screws (brass is nice)

M5 machine screw (around 30mm), M5 washer and M5 nut.

Tools

Shaper Origin

Workstation

Table Saw with 1/8th kerf blade.

Drill press is helpful

4 mm router bit (I used the shaper 4mm by 15 mm up-spiral flat bit). A 1/8th bit would work. It needs to be long (needs to go around 1.25 inches deep)

¼ inch or 8 mm router bit, needs to cut at least 1.25 inches deep

25/64ths drill bit (for pilot hole for threaded insert)

7/16ths drill bit (for pen slot)

M5 tap
