French Cleat Bench Dog Pound

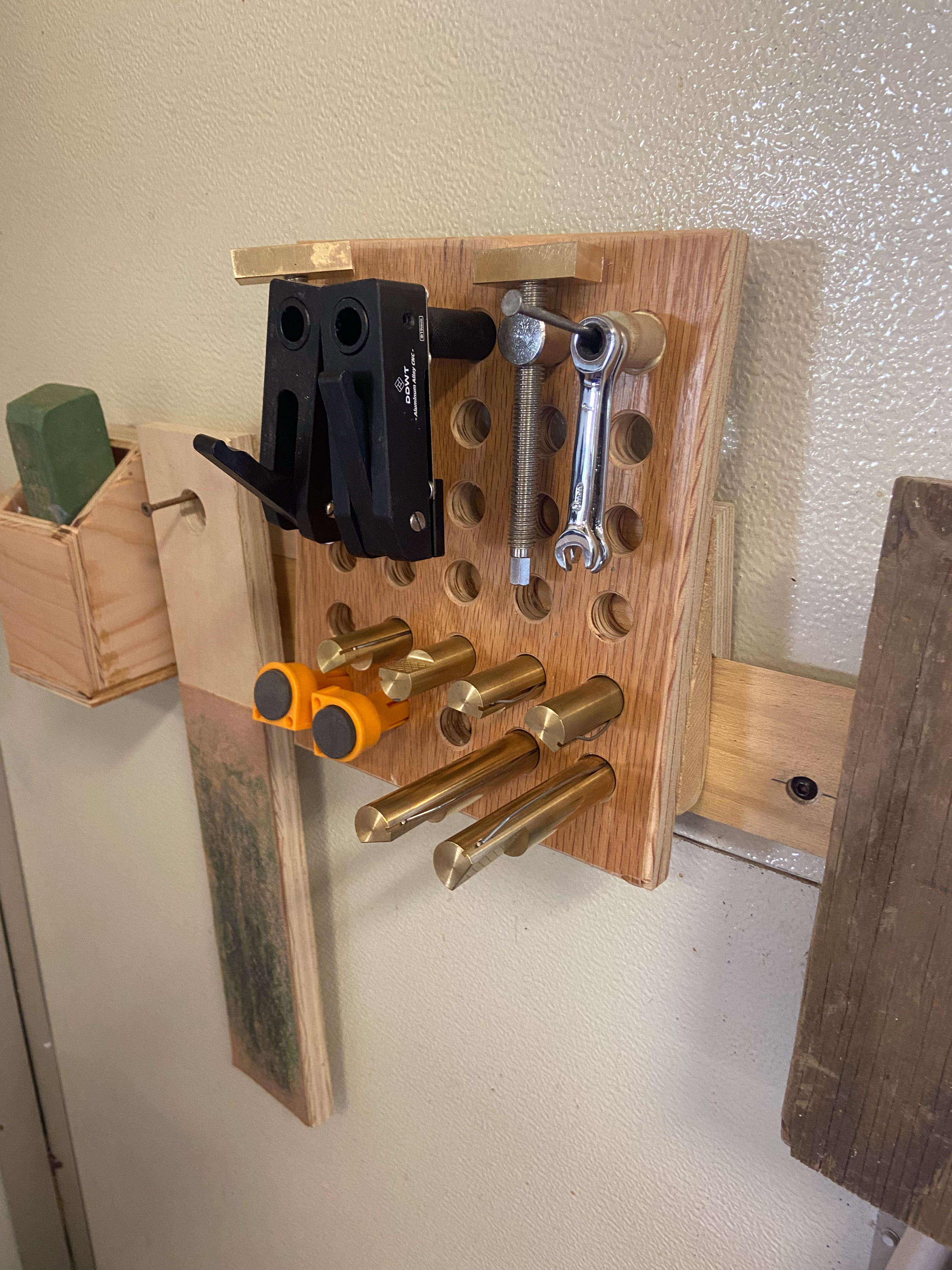

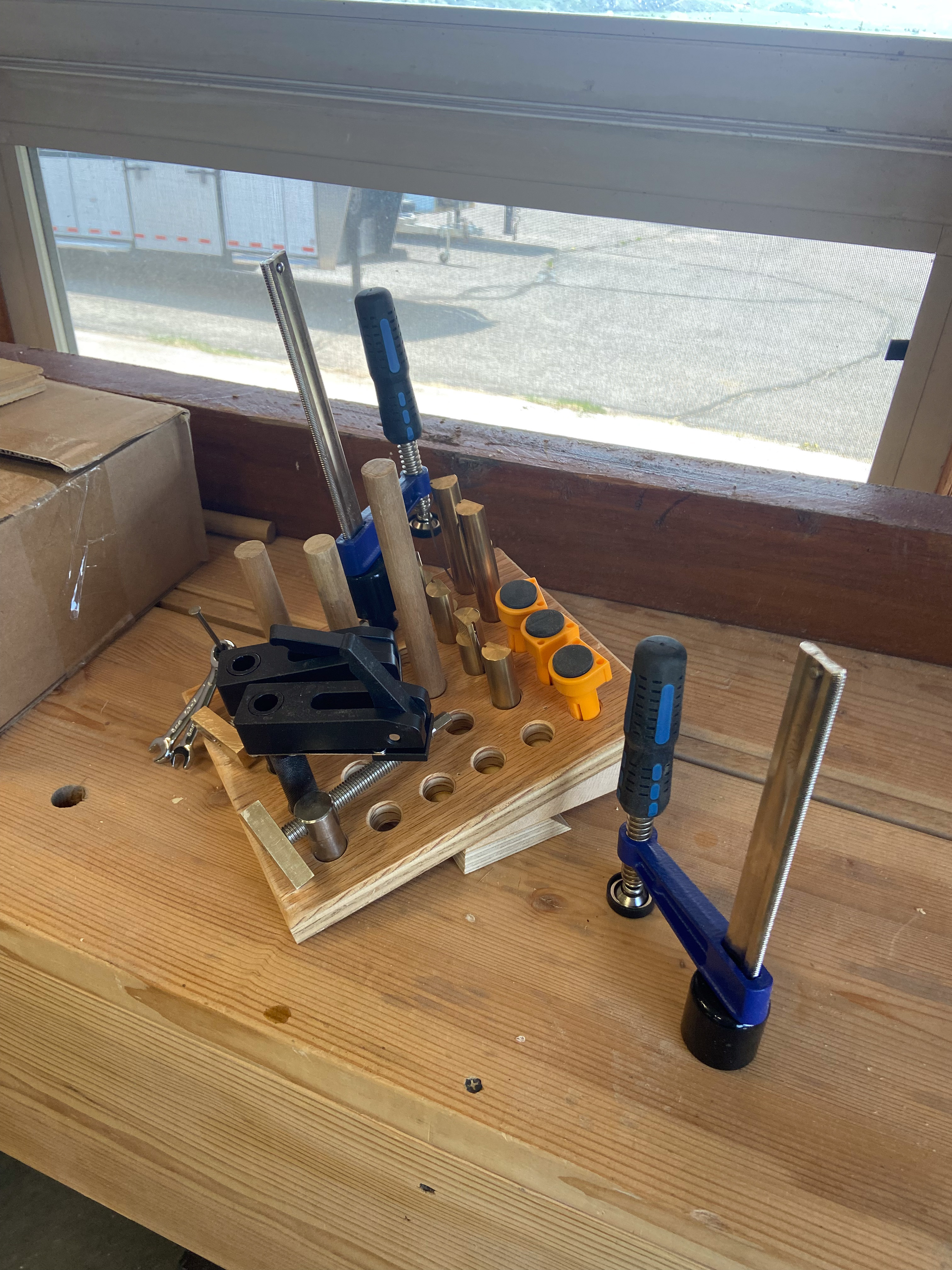

I've got an assortment of bench dogs and similar accessories. The Dog Pound keeps the doggies organized. I can store them on the wall via a french cleat and easily remove a single dog or move the whole collection to the workbench for use.
12
Storage & Organization
Files Included (1)
Bench Dog Pound.svg
37 kB
Materials
Hole Board: 3/4 inch plywood 8.5 inch by 10 inch

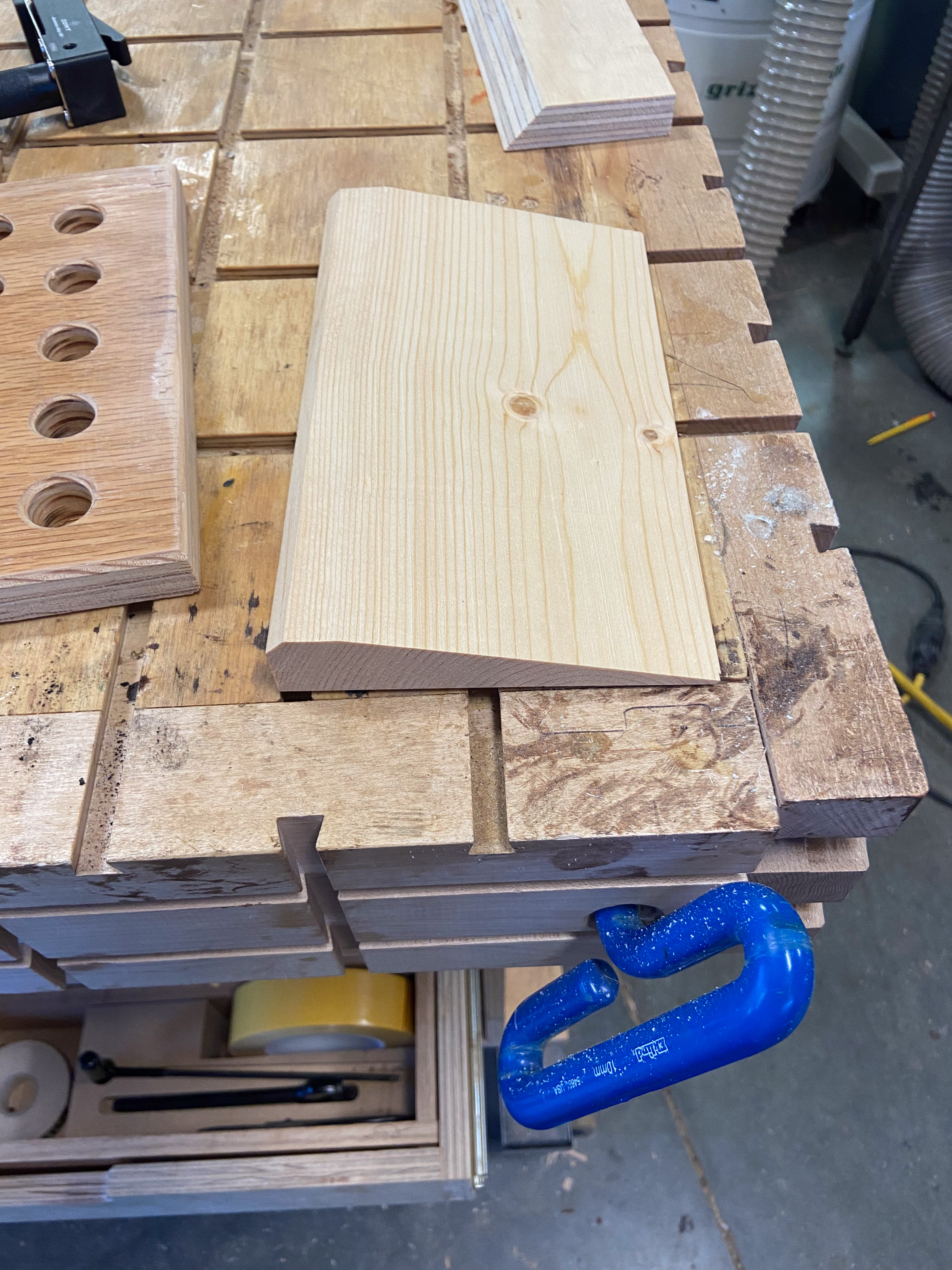

Wedge: 3/4 inch by 4 inch (approx) by 8.5 inch
French Cleat 8.5 inch wide
Glue
Nails
Tools
Shaper Origin and appropriate bit(s). I used a straight bit (8mm? -- I don't remember) for the dog holes then a 45 degree bit to add a little chamfer to the holes.

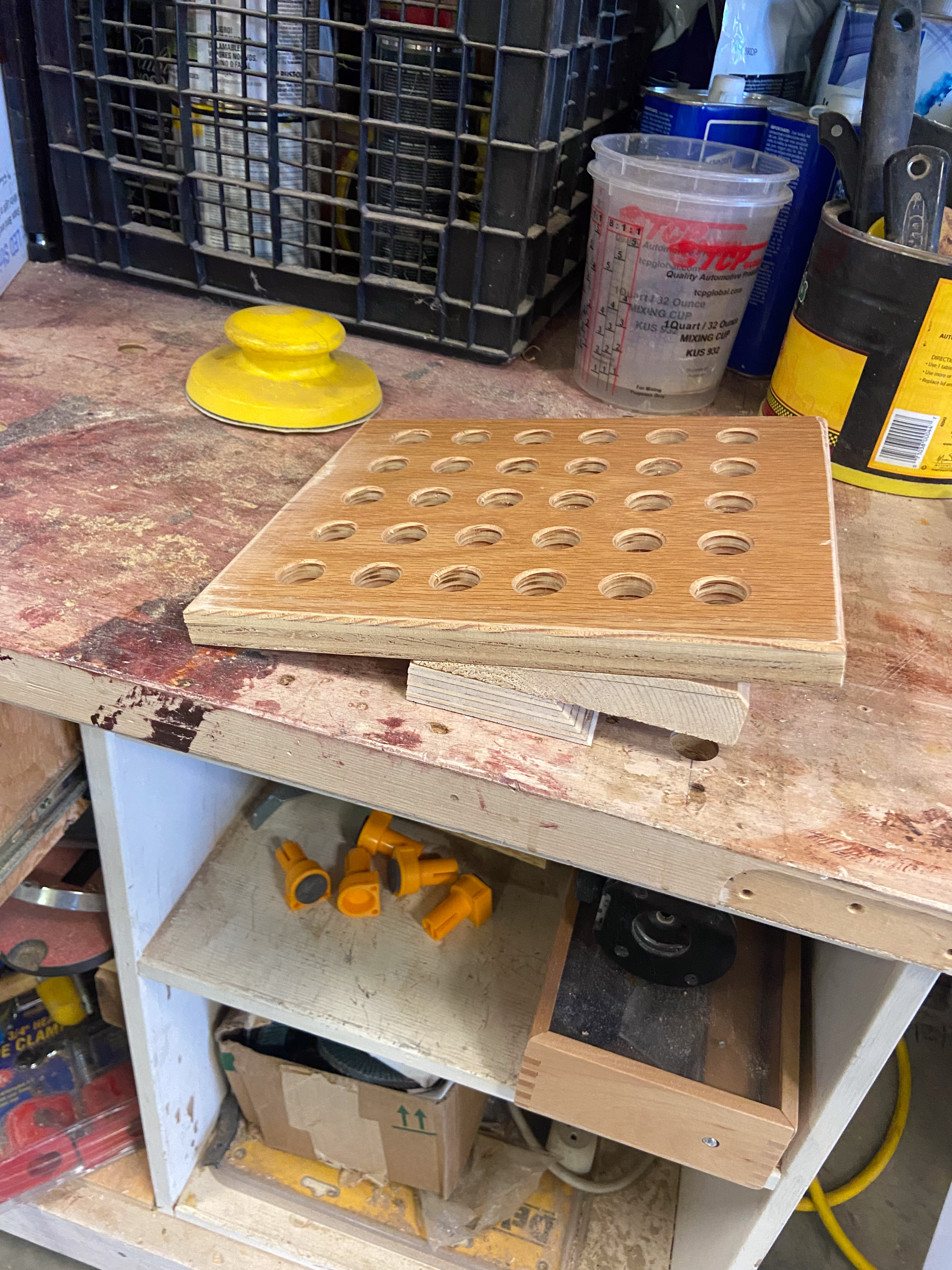

Instructions
