SawStop Throat Plate

By michael175|BY-NC-SA 4.0 License|Updated December 26th, 2021

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

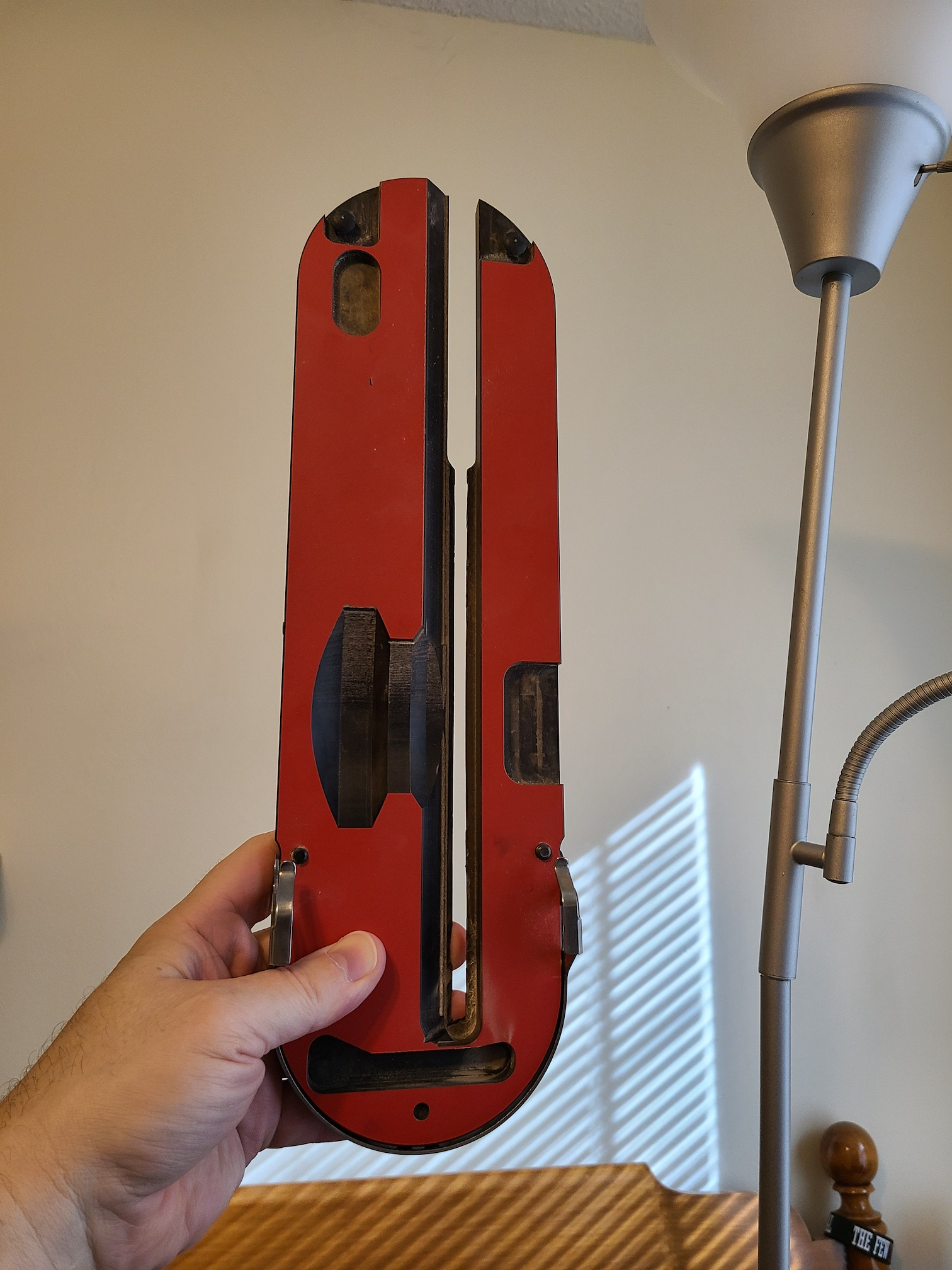

I created an SVG for the SawStop PCS Table Saw Throat Plate. The long thin slot is for the Riving Knife, don't cut the slot if you don't use it. The four 1/8" holes are for the height adjusting Allen screws. I put 1/8" holes but make them what ever size you have on hand for a tap and set screws. NOTE: As of this upload, I have NOT yet cut this file! Please let me know if there are issues with the file and I'll do my best to fix them!

Easy

42

Files included (2)
NameSize
Throat Plate_v2.svg
4 kB
Throat Plate.svg
6 kB

1/2 Plywood
Shaper Origin

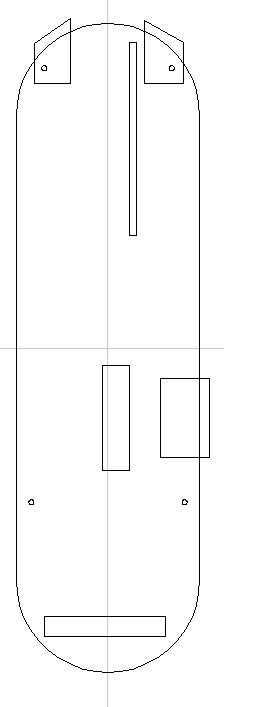

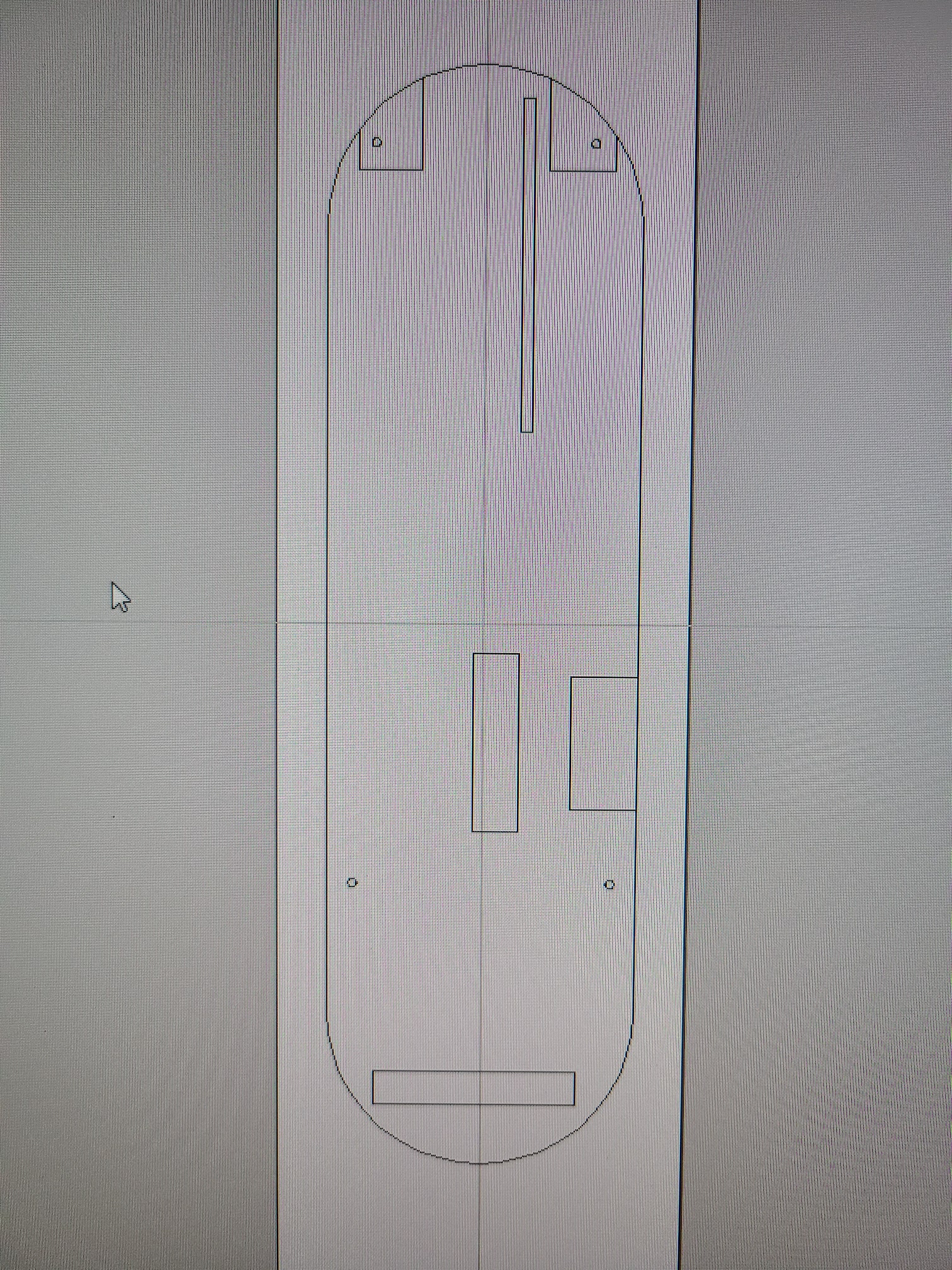

You need to measure the depth of the cut-outs in the areas shown. I haven't yet measured the depth. 12/26 - Update: after thinking more about the SVG, I realized that the recesses that border the edge of the profile should probably allow for bit clearance outside the border. So I extended those profiles in the V2 file. See the third picture.
