Knobs for Hex Bolts Standard and Metric

|

Updated Tue Nov 29 2022

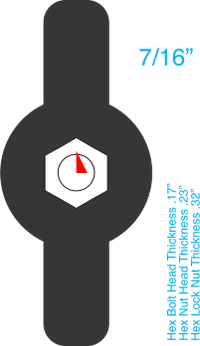

Some Standard and Metric Size Knobs Scale your Knob and place any hex nut void inside the knob. Some files have been updated for Shaper Jenner Update.

10 min

Easy

383

Hardware Inserts

Files Included (46)

Hex Nut 1_2 inch.svg
40 kB
Hex Nut 3_4 inch.svg
42 kB

Hex Nut 3_8 inch.svg

40 kB

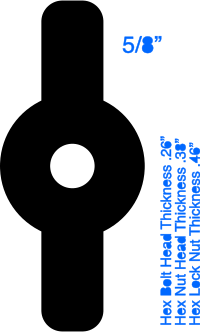

Hex Nut 5_8 inch.svg

42 kB

Hex Nut 7_16 inch.svg

41 kB

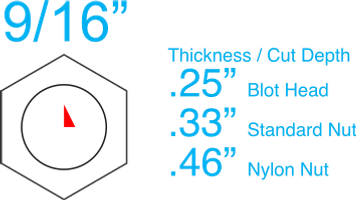

Hex Nut 9_16 inch.svg

32 kB

Hex Nut M10.svg

43 kB

Hex Nut M12.svg

43 kB

Hex Nut M14.svg

41 kB

Hex Nut M5.svg

42 kB

Hex Nut M6.svg

42 kB

Hex Nut M8.svg

45 kB

Round 1_2 Knob Updated.svg

156 kB

Round 1_2 knob.svg

37 kB

Round 3_4 Knob Updated.svg

169 kB

Round 3_4 knob.svg

37 kB

Round 3_4 knob.svg 1

37 kB

Round 3_8 Knob Updated.svg

158 kB

Round 3_8 knob.svg

36 kB

Round 5_8 Knob Updated.svg

167 kB

Round 5_8 knob.svg

38 kB

Round 7_16 Knob Updated.svg

148 kB

Round 7_16 knob.svg

36 kB

Round Knob Blank Updated.svg

9 kB

Round Knob Blank.svg

2 kB

Triangle 1_2 Knob Updated.svg

152 kB

Triangle 1_2 knob.svg

35 kB

Triangle 3_4 knob.svg

37 kB

Triangle 3_8 knob.svg

37 kB

Triangle 5_8 knob.svg

37 kB

Triangle 7_16 knob.svg

36 kB

Triangle 9_16 knob.svg

37 kB

Triangle knob blank.svg

1 kB

Wing 1_2 Knob Updated.svg

151 kB

Wing 1_2 knob.svg

36 kB

Wing 3_4 Knob Updated.svg

174 kB

Wing 3_4 knob.svg

37 kB

Wing 3_4 knob.svg 1

37 kB

Wing 3_8 Knob Updated.svg

153 kB

Wing 3_8 knob.svg

36 kB

Wing 5_8 Knob Updated.svg

167 kB

Wing 5_8 knob.svg

37 kB

Wing 7_16 Knob Updated.svg

160 kB

Wing 7_16 knob.svg

36 kB

Wing Knob Blank Updated.svg

6 kB

Wing Knob Blank.svg

1 kB

Materials

1/2 " or 3/4" Baltic Birch

Tools

1/8" bit

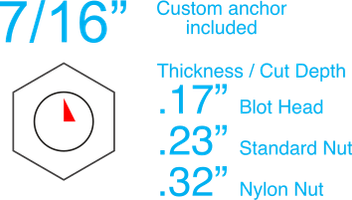

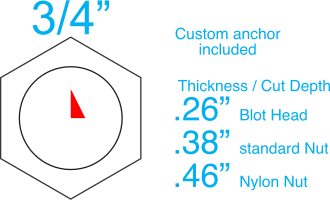

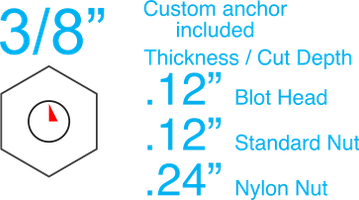

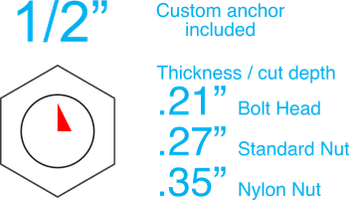

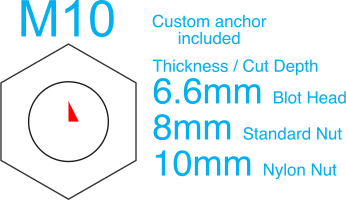

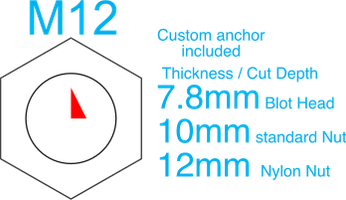

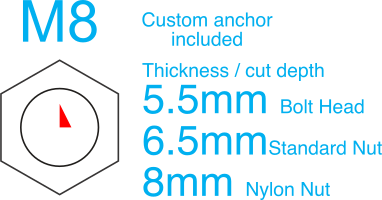

Instructions
