NOTCH BOARD

By ODH|BY-NC-SA 4.0 License|Updated September 15th, 2020

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
original to the shorty, bit longer, bit more crusiey?

20 min

Easy

5

Files included (1)
NameSize

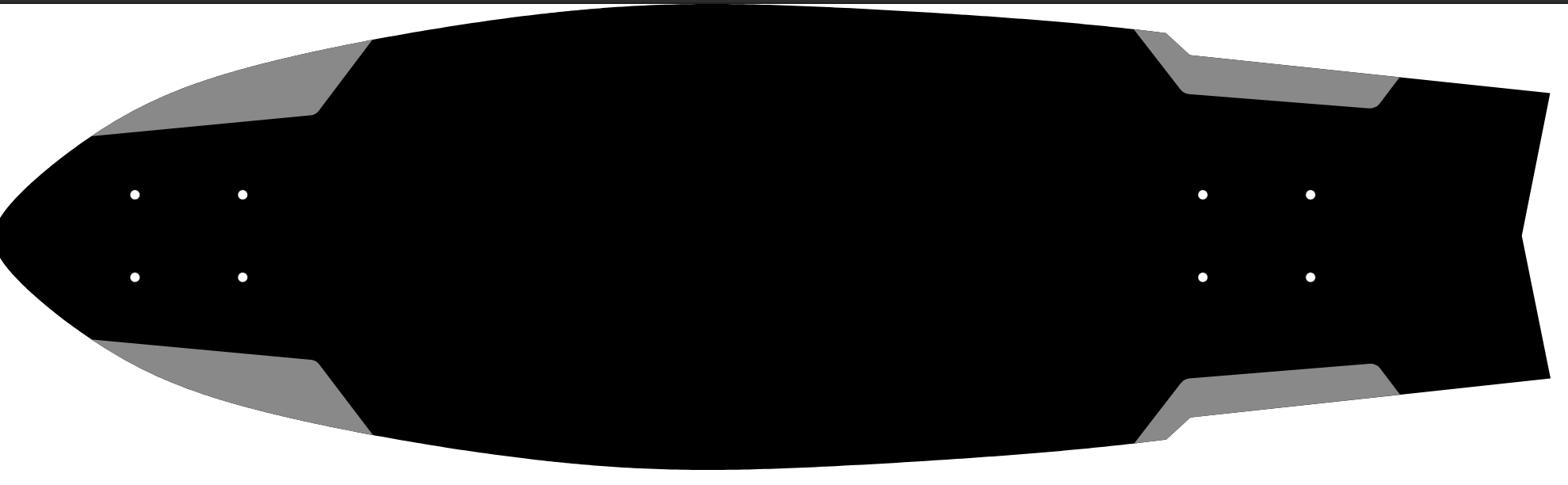

notch2.svg
23 kB

ply wood /suitable materials for a skateboard deck, trucks wheels and grip tape.
6mm/ 3mm bits, router with 1/4 round over.
Cut bolt holes first with the 3mm bit set to helix, then the wheel notches (cut on the line to make sure there is no lip to the notches and then pocket out), and finally the outline of the deck, either cut full thickness or use a pattern router to finish, then round over the edges with the router and a round over bit. Sand and add paint or designs etc. finish with a satin or matt varnish and add grip tape and trucks. Enjoy. (IM NOT RESPONSIBLE FOR ANY INJURY, YOU'RE AN ADULT BE CAREFUL) x
