japanese inspired length joint

By FlorianMeigel
|
BY-NC-SA 4.0 License
|
Updated Fri Nov 24 2023

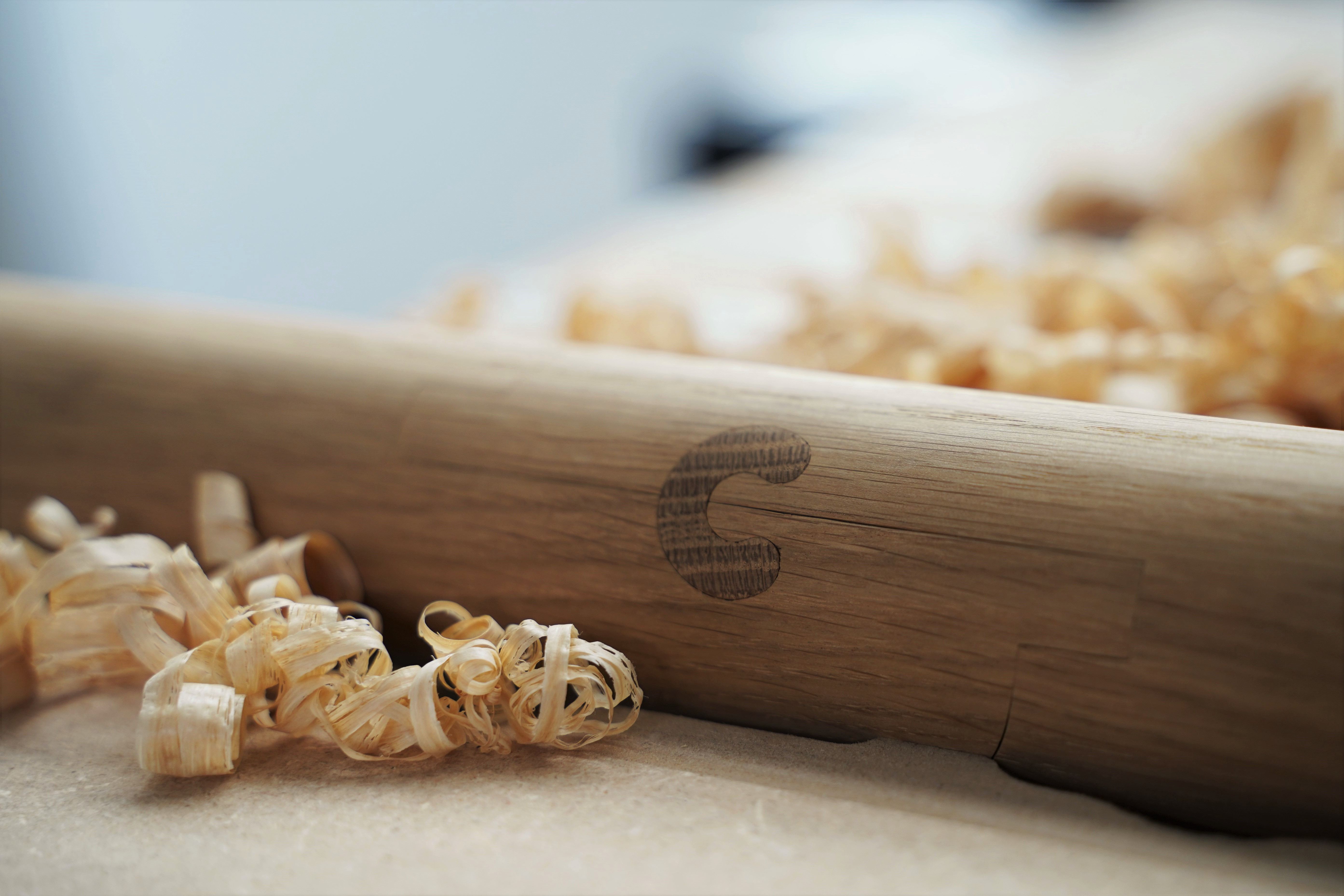

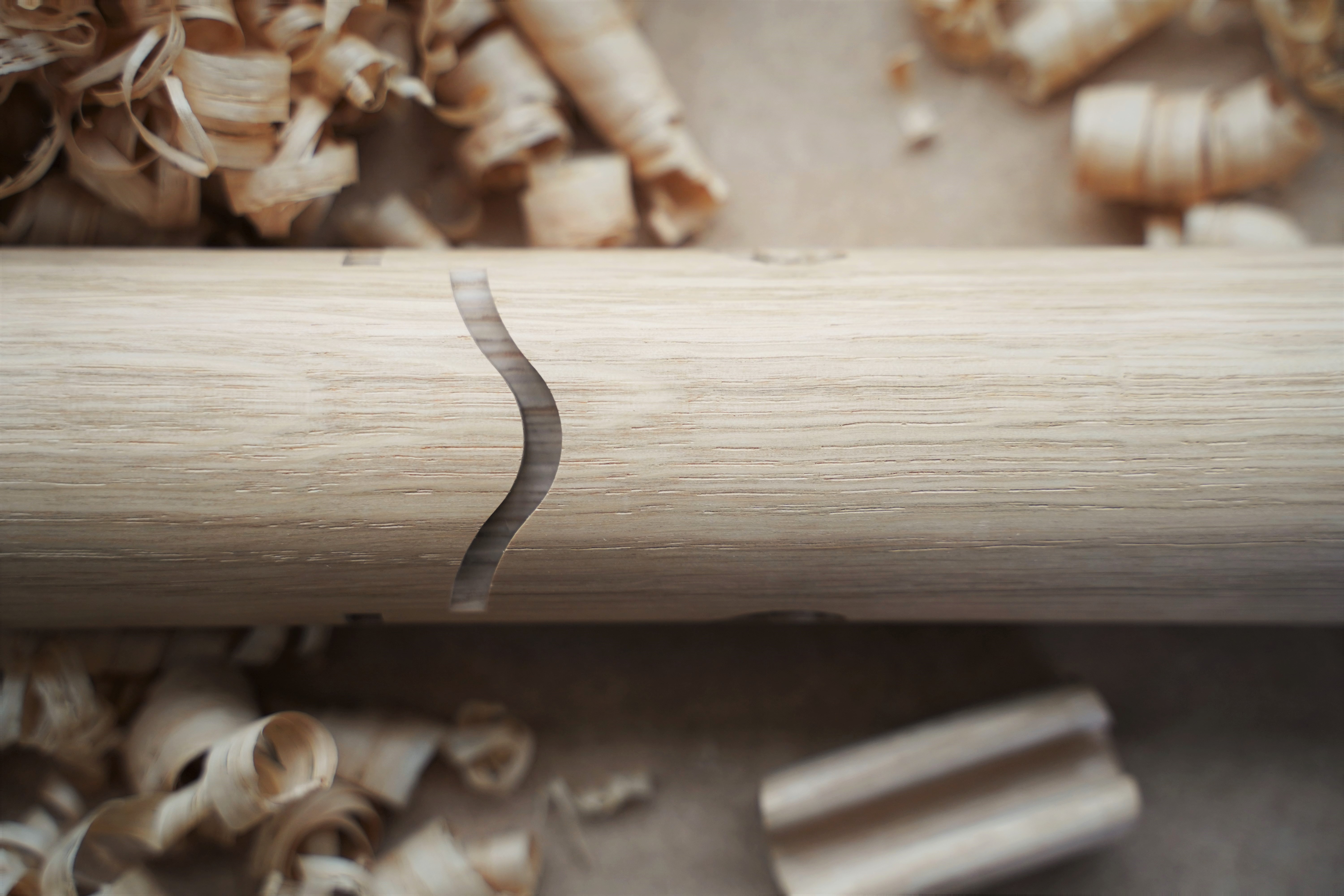

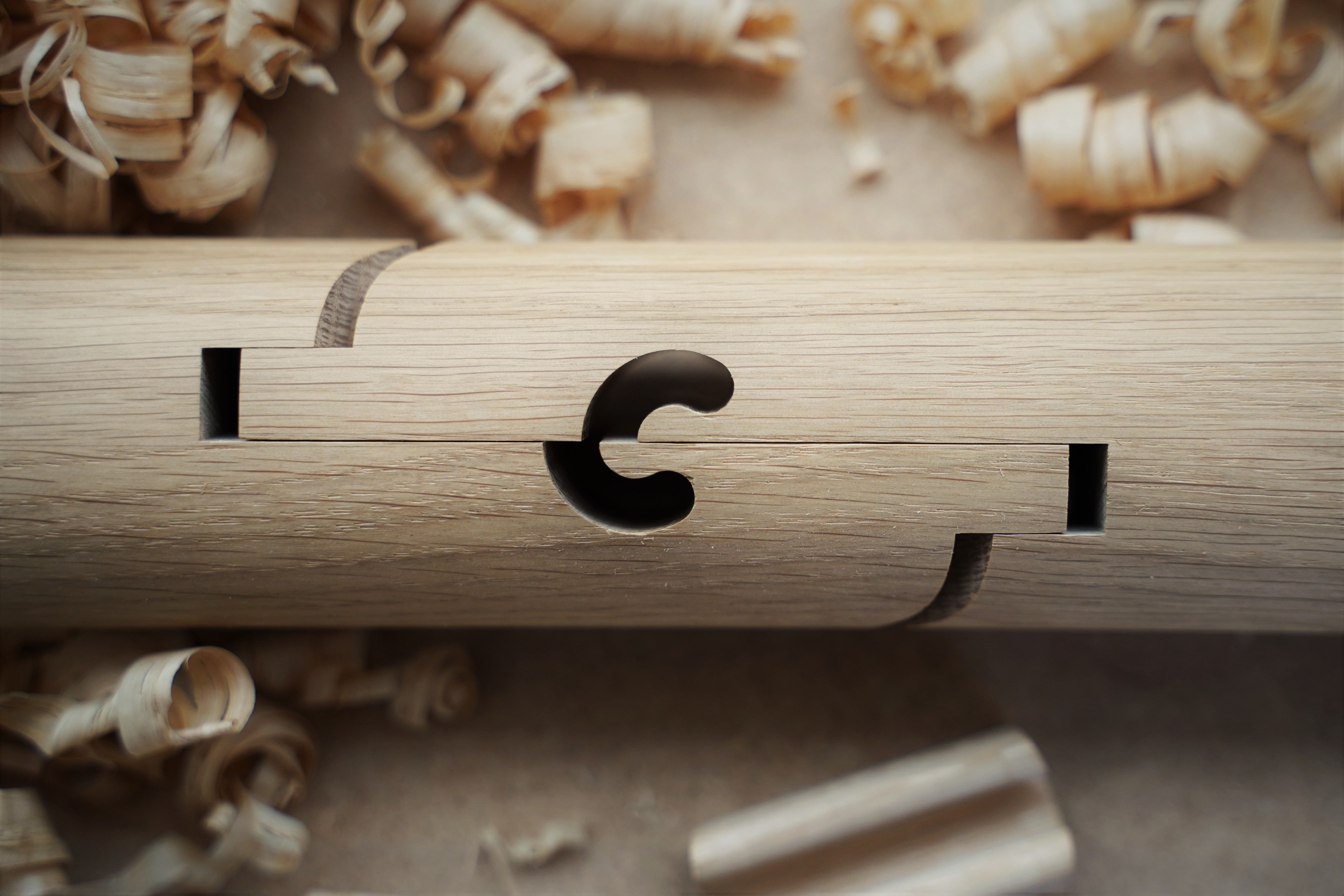

Sometimes it helps to question & reinterpret what is already there - in order to be able to use the traditional in an alternative design context. - a wood joint based on the traditional (daimochi) tsugi, to join wooden beams lengthways -

30 min
Intermediate

233

Joinery

Files Included (5)

  • c-pin hole.svg

    33 kB
  • c-pin.svg

    920 B
  • lengthjoint - part one.svg

    18 kB
  • lengthjoint - part two.svg

    16 kB
  • short instructions.pdf

    4 MB

Materials

- solide wood (preferably hard wood)

dimension: (300) × 50 × 50mm (two pieces)

for the joint

- solide wood (preferably hard wood)

dimension: 60 × 50 × 50mm (one block)

for the pin

- adhesive tape

- some sacrificial/waste material (3mm MDF)

- ("Complex" oil based surface coat)

Tools

- basic handtools, measuring tool & clamps

- Shaper Origin (+Workstation) & standard router bits:

6mm spiral upcut router bit (shaper standard)

6mm spiral upcut router bit (total lenth of ~80mm)

8mm spiral upcut router bit

engraving cutter (shaper standard)

- basic Tools to apply an oil based surface finish

Instructions

some materials i used: https://www.complex-farben.at/produkte/oele--wachse-innen here is a link to my instagram account with more projects I did in the past: https://www.instagram.com/_meigel/ I have attached a pdf to my files with a detailed description and photos of the manufacturing process. I look forward to any kind of feedback. Have fun!
