Table leg - frame with cable outlet

By IFlorianI | Created August 23rd, 2020 | Published August 24th, 2020 | Updated August 24th, 2020

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

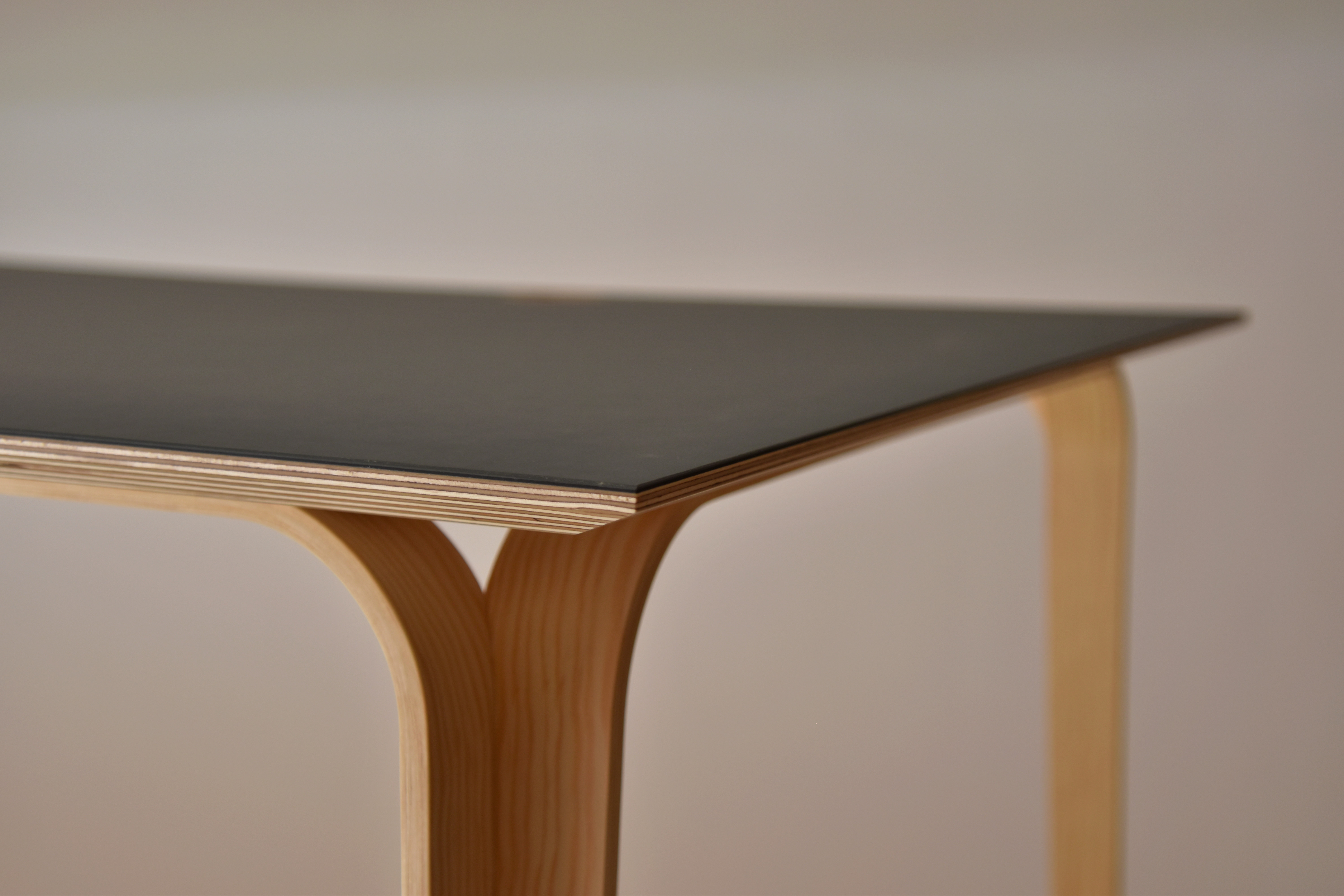

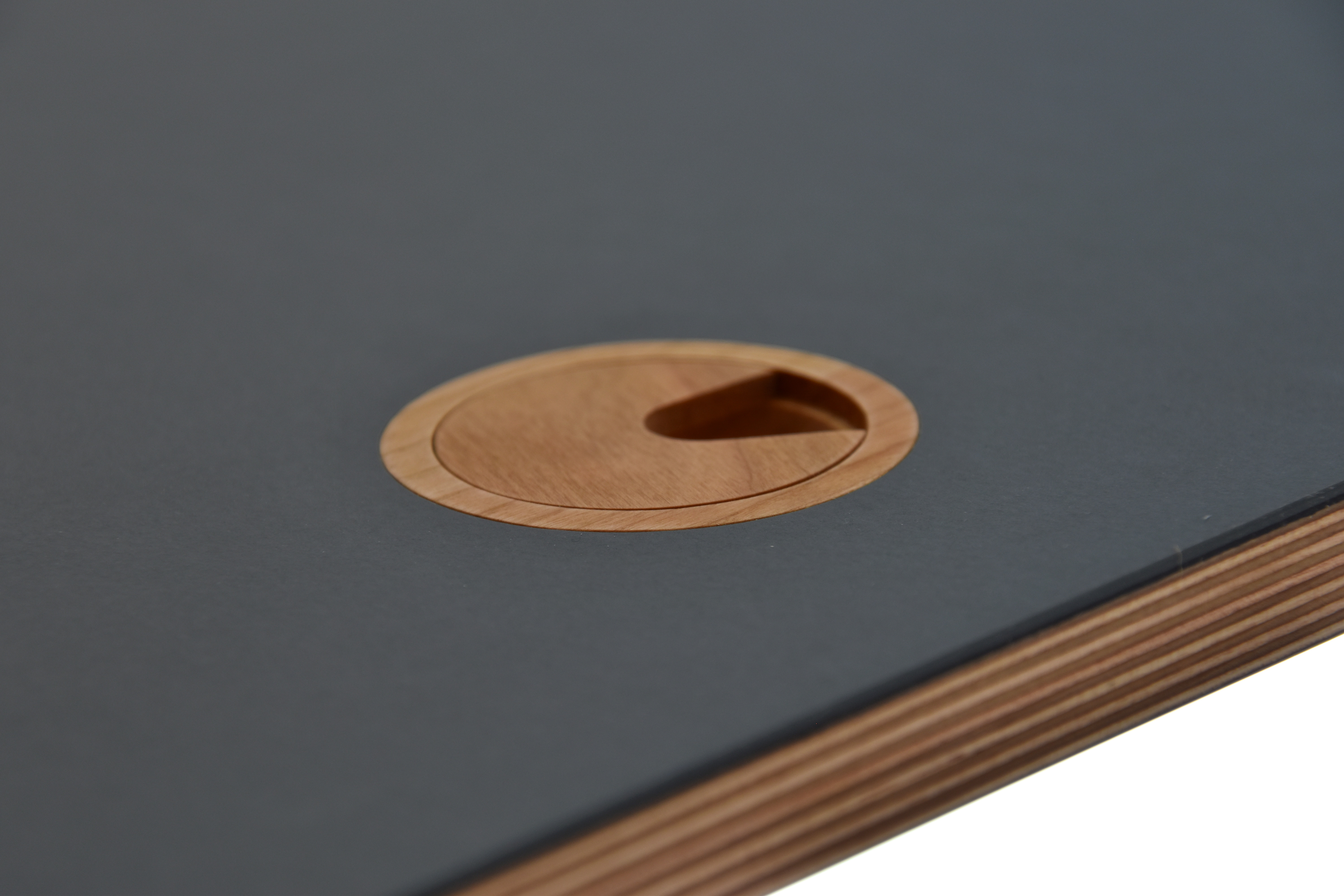

For those who are interested in wood-bending-techniques and alternative cable outlets made out of solid wood, I recently completed a Shaper Origin supported project. The base could also be used as a base frame for a piece of furniture and is conceivable in any other type of wood. Instead of the plastic version, I tried to design a simple outlet made of wood, which definitely enhances your office table optically.

50 min

Intermediate

18

Category

Furniture

Files included (7)
NameSize
cable-outlet-lid.svg
813 B
cable-outlet-body top.svg
1 kB

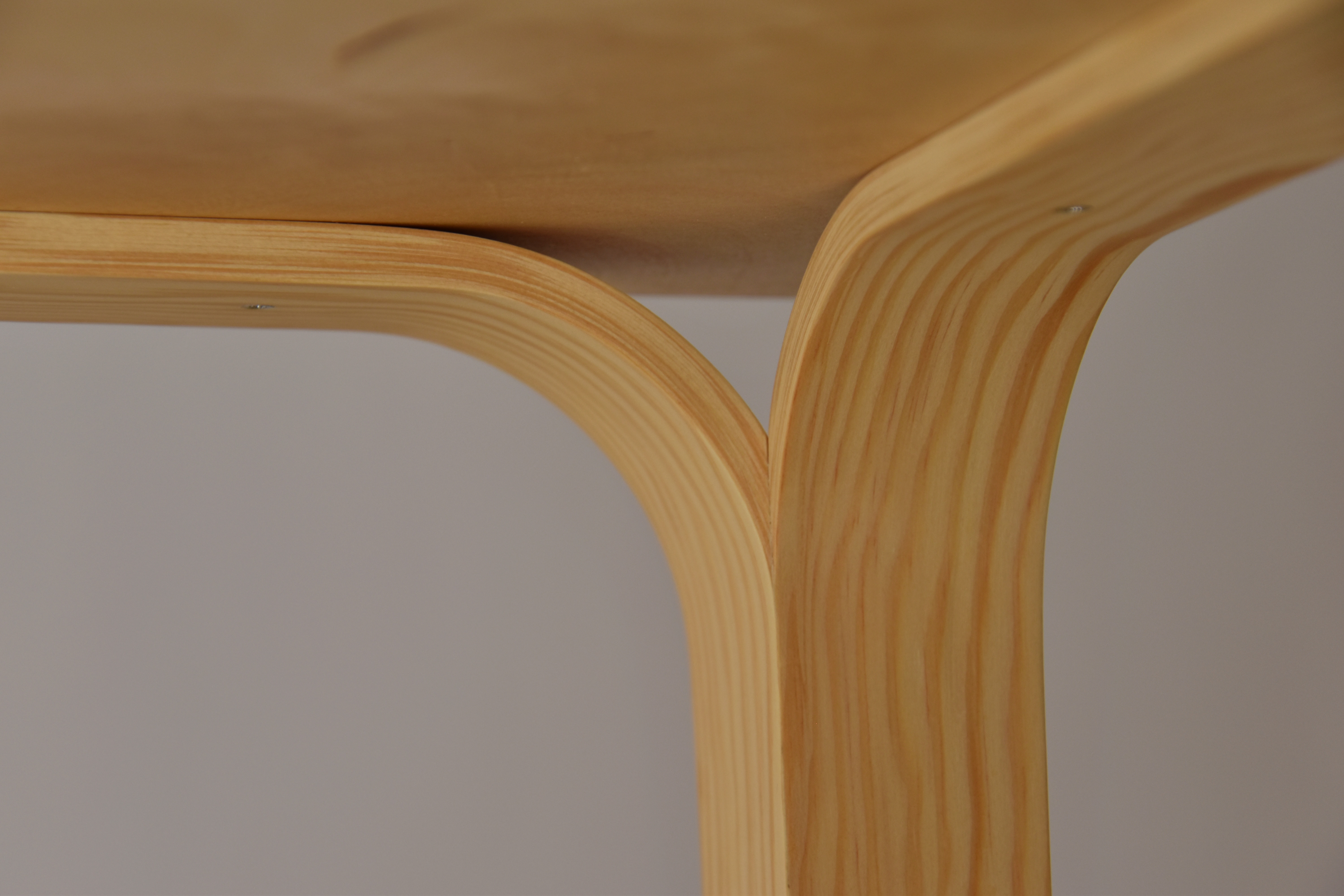

13 layers of 0,9mm pine wood veneer stripes for the legs, to get a finished thickness of approx 12mm (length 2150mm and width 60mm) -> dimensions are already larger than the finished dimensions cherry solid wood for the cable outlet (one board 350 × 75 × 20mm for four cable-outlet-bodies and one board 350 × 60 × 5 mm for four cable-outlet-lids) some waste material for your templates slow drying wood glue "Complex" oil based surface coat or another surface finish of your choice
basic Handtools + clamps Shaper Origin (+Workstation -> not mandatory) - standard router bits: 6mm spiral upcut router bit 8mm spiral upcut router bit 45 ° chamfer cutter without a guide ring basic Tools to apply an oil based surface finish a chop saw could help at some point hand-held router with flattening cutter hand-held circular saw with rail or a table saw as an alternative
here´s a links for the surface finish I used: https://www.complex-farben.at/produkte/oele--wachse-innen I have attached a pdf to my files with a detailed description and photos of the manufacturing process. here are links to my instagram accounts with more projects I did in the past: @_sepparee_ @polyholz @_flomeigel_ I look forward to any kind of feedback :D Have fun!
