Modified Shaper Workstation Accessories Kit

By DatEi | Created January 12th, 2021 | Published January 12th, 2021 | Updated January 12th, 2021

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

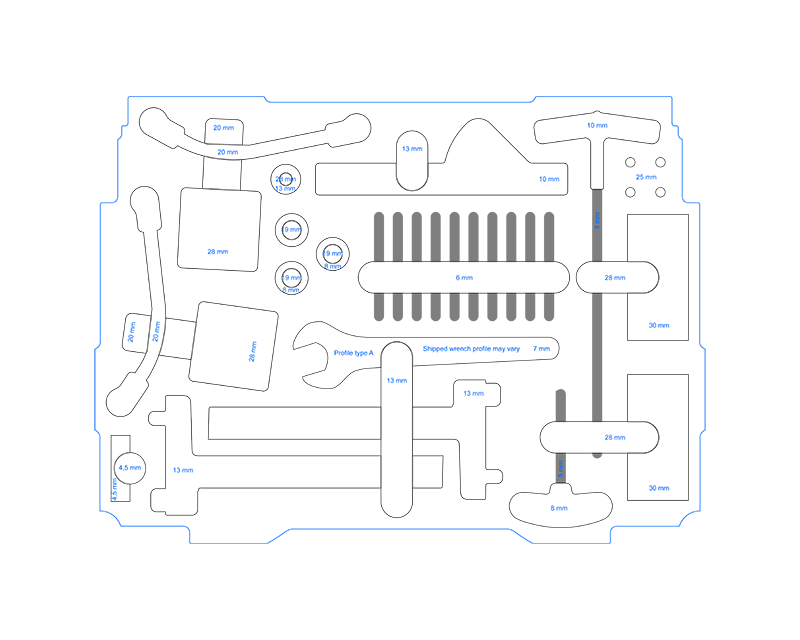

based on Sam's Shaper Workstation Accessories Kit (https://hub.shapertools.com/cloud/Shaper%20Workstation%20Accessories%20Kit%20A), but slightly modified: - pen removed - one collet removed (3 instead of 4) - Crescent Wrench is type A - original short 4 mm Allen Wrench added (lower right corner) - 4 fastening screws for Workstation added (upper right corner) - USB-Stick added (lower left corner) - parts rearranged

1 hr

Easy

7

Category

Systainer Inserts

Files included (1)
NameSize
Shaper Workstation Accessories Kit A_20201226.svg
21 kB

BY-NC-SA 4.0 License


- double sided tape - foam insert, shipped in the Systainer
- Shaper Workstation - longer 6 mm and 8 mm cutter

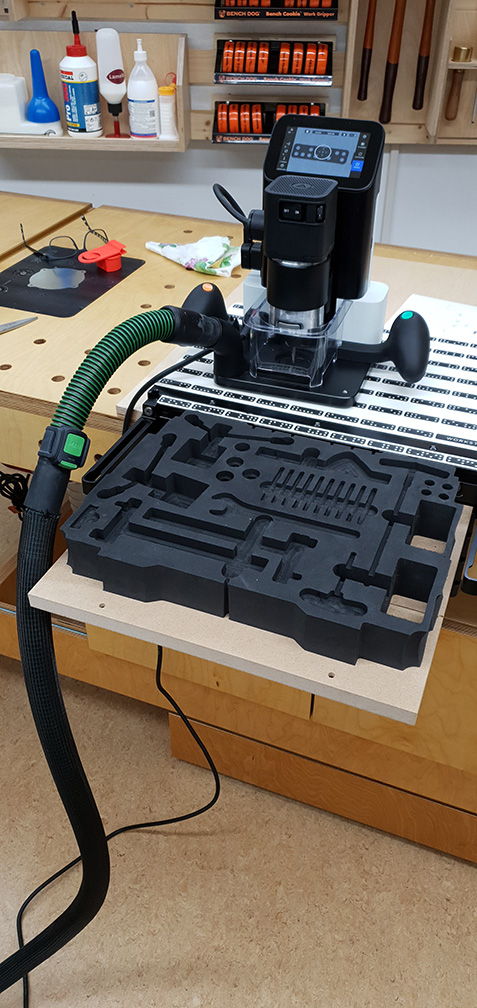

First I have produced a bigger support surface for the workstation, so that I could fix the foam insert on it with double sided tape. In that case you need additional Shaper tape on the foam insert.
