Simple spindle center finder

By Fabian1 | Created July 17th, 2020 | Published July 17th, 2020 | Updated July 17th, 2020

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
This insert lets you align the center of your spindle with markings on your workpiece. You don't even have to remove the spindle! It's super easy & quick to make. Fingers are reasonably far away but you can plug out the spindle for the time of alignment if you don't feel comfortable.

10 min

Easy

6

Category

Jigs & Fixtures

Files included (1)
NameSize
Spindle center finder.svg
656 B

3mm acrylic 20 cm of string (e.g. dental floss)
SO 3mm bit V bit

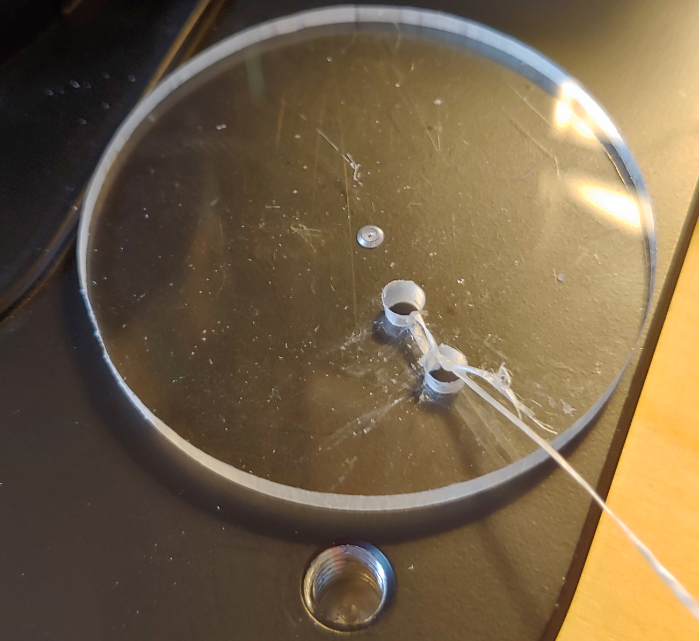

Secure the piece with double-sided tape. The circle should have tape right underneath. There are 4 things to cut - start from the center. 1. Using the V bit only slightly mark the center point, e.g. 0,5mm. 2. + 3. Change to a 3mm bit. These are the holes for the string. 4. Outside cut using 3mm. Note: When attaching the string be sure to attach it in a way that the center point is on the bottom. The diameter works well for 3mm acrylic but it might have to be decreased if a thicker material is used.

This project is licensed under the Creative Commons Attribution - NonCommerical - Share - Alike license
