Legrand double floor socket - flush mounting

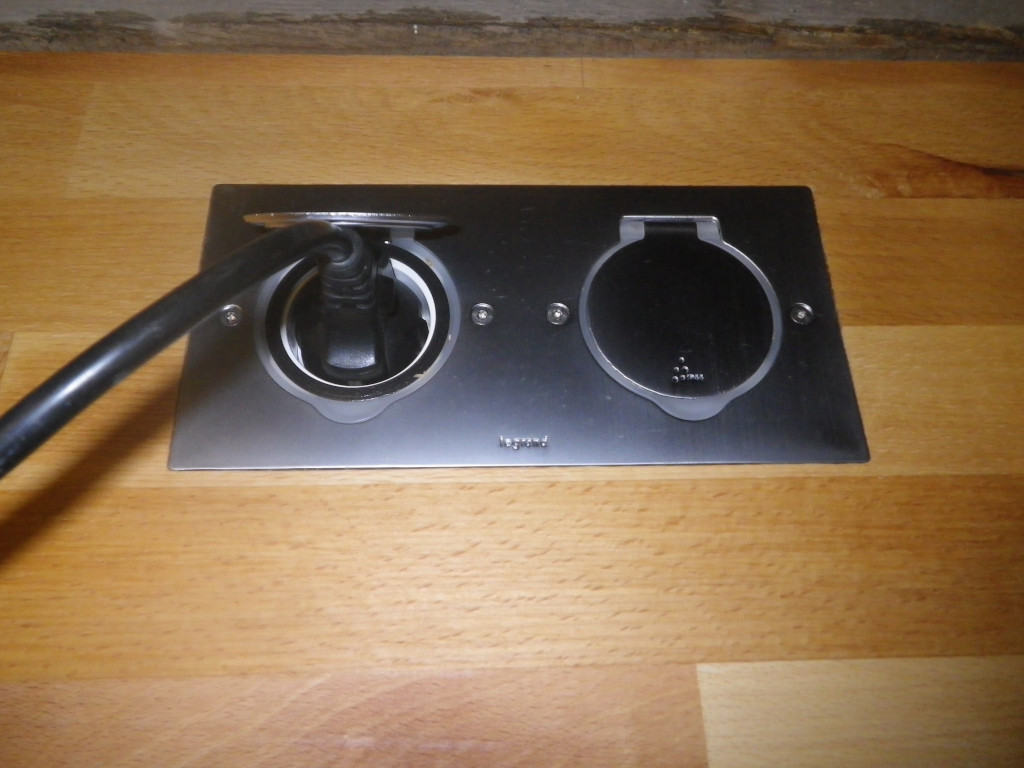

This project provide a way to mount Legrand double floor sockets flush with the floor (or another surface: in the right context, they are also nice on walls and table tops). As an added bonus, it makes aligning the screw holes easier.
3
Flooring
Files Included (2)
prises2_avec_support.depth_encoding_untested.v005.svg
20 kBprises2_avec_support.v004.svg
19 kB
Materials
2x Legrand Batibox 80mm (Ref Legrand: 0 801 88, EAN: 3245060801885, https://www.legrand.fr/reference/080188/pro )
Legrand double floor socket (Ref Legrand: 0 897 68, EAN: 3414971496460, https://www.legrand.fr/reference/089768/pro or similar)
Tools
Shaper Origin (+ Tape)
6 mm endmill
3 mm endmill
larger endmill (optional)
80 mm hole saw (optional)
Instructions

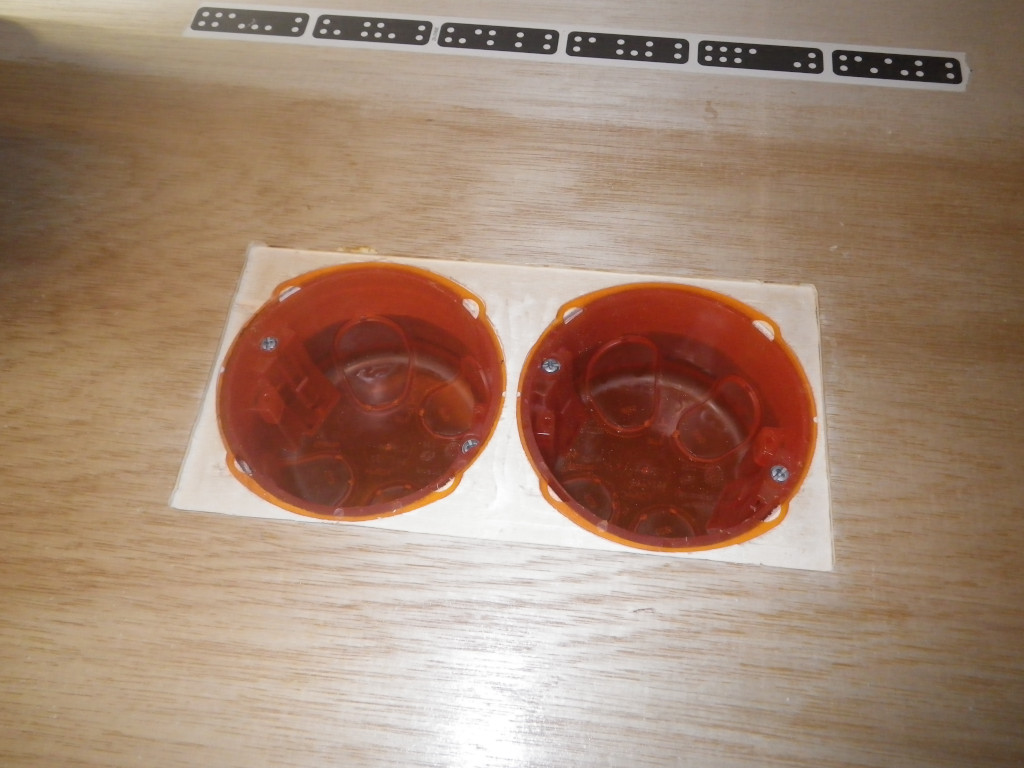

0) Tape, scan, make a grid, position the file where you want your sockets to be. 1) Cut both the two batibox profiles (see https://hub.shapertools.com/creators/5e7cb1e0c8f2b1000fb45f08/shares/633b100e45d009190bd324a9 for instructions / options if needed). 2) Cut the large pocket (2mm depth). Using a larger bit makes this faster, but it is still pretty quick with a 6mm (or 1/4") endmill as most of the pocket surface was actually already removed at step 1. 3) Finish the pocket first with the 6mm bit and a positive offset, then with the 3mm endmill, adusting the offset as needed. 4) Install the hardware and do the wiring. [Update, 2022-10-30: added a version with depth encoding - UNTESTED]
